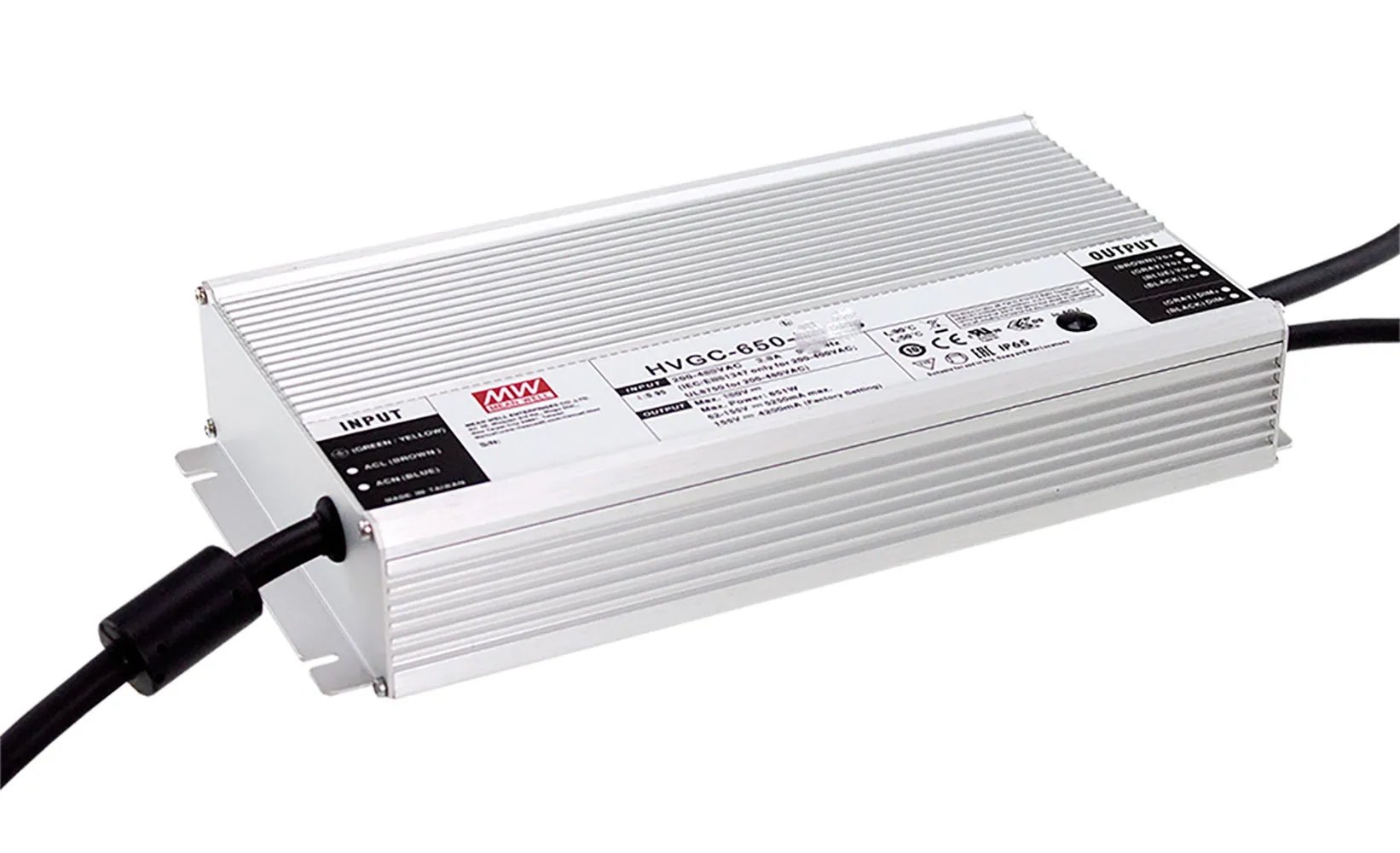

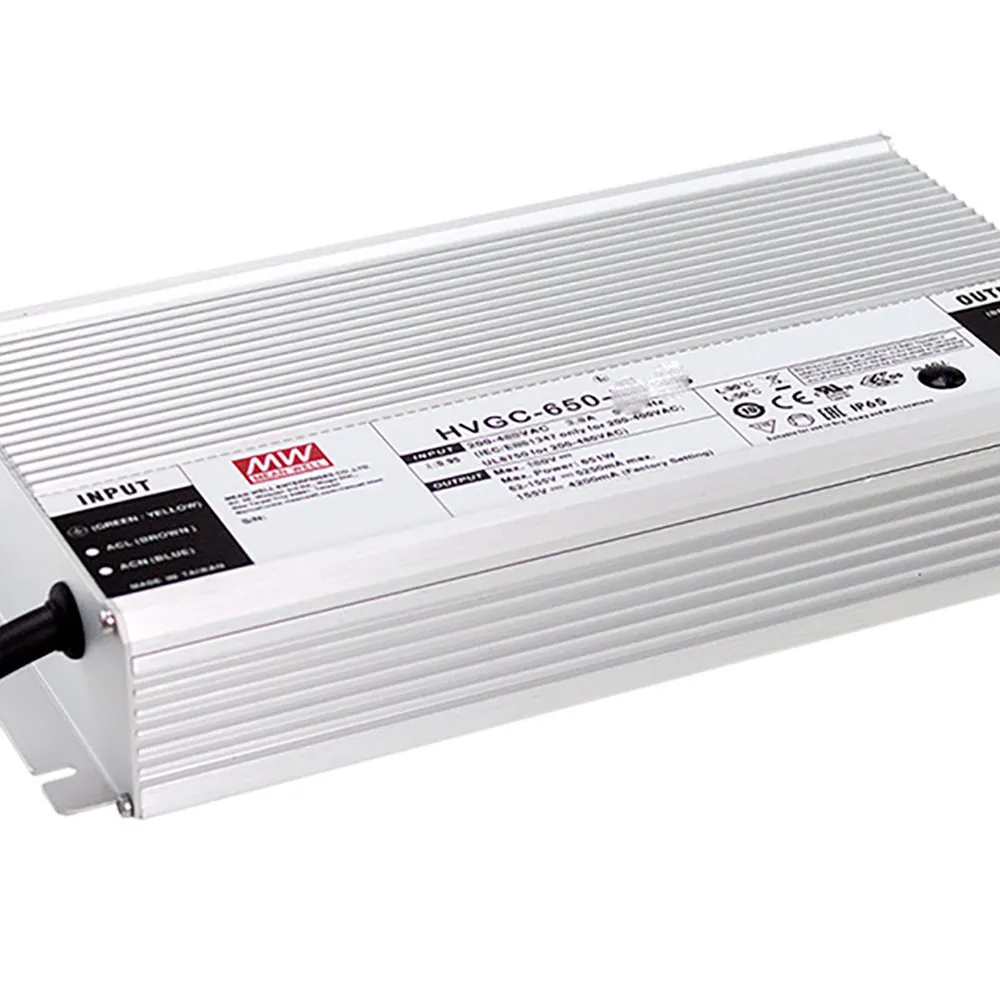

650W 3 in 1 Dimming Constant Power Mode LED Driver 2.8A

2.8 Amps @ 92.8 to 232 Volts DC

Features

  • Input voltage: 180 to 528 VAC @ 47 to 63 Hz
  • Built-in active PFC function
  • Metal housing design Class 1 design
  • IP67 design for indoor or outdoor installations
  • Constant Power mode output
  • Typical lifetime: >50,000 hours
  • 5 year warranty

Applications

  • Linear LED lighting
  • LED panel lighting
  • Indoor LED lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HVGC-650

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, ENEC, FCC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.91 in.
Length:11.02 in.
Width:5.67 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 528 VAC
Maximum Input Current:2.1 A

Output

Number of Outputs:1
Output Current (Channel 1):1.40 A to 3.50 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):92.8 VDC to 232 VDC
Output Voltage:232 VDC
Output Range:92.8 VDC to 232 VDC
Output Current:2.80 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4200V
IP Rating:IP65
Efficiency:95%
Power Rating:649.6 W
,
