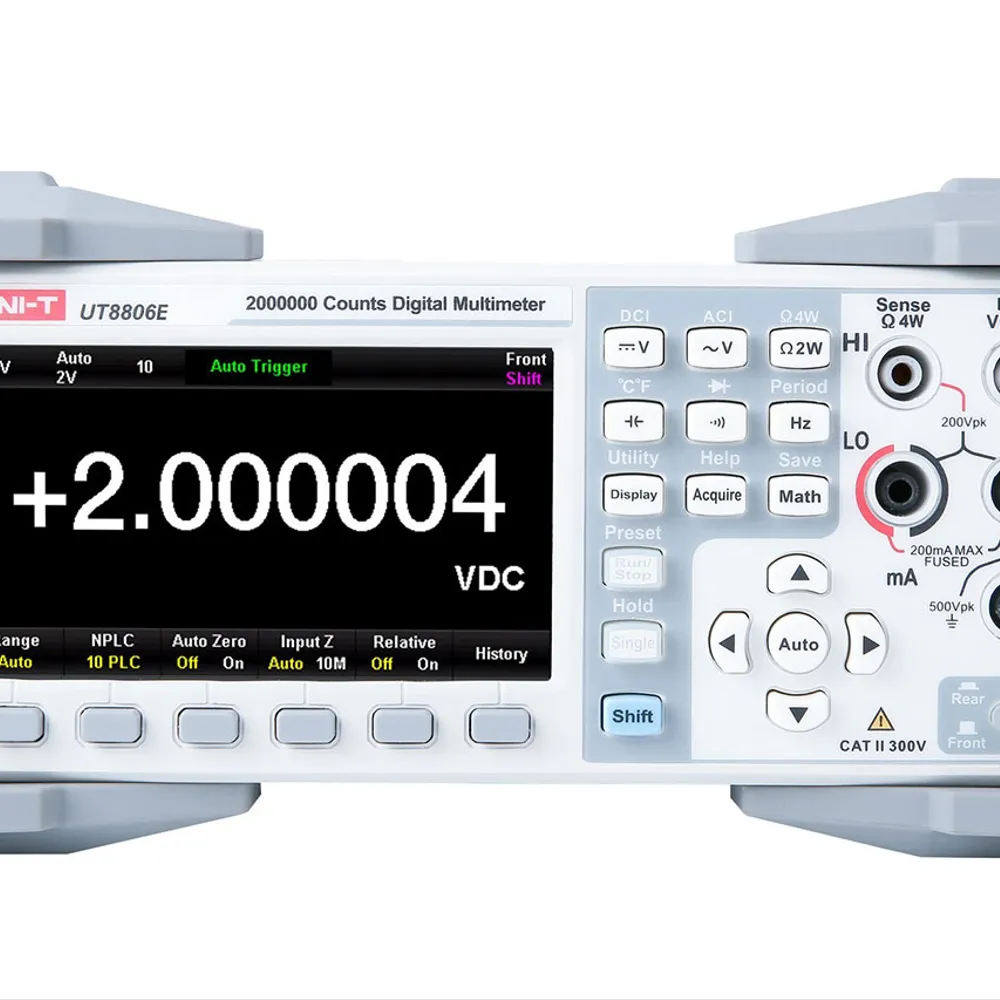

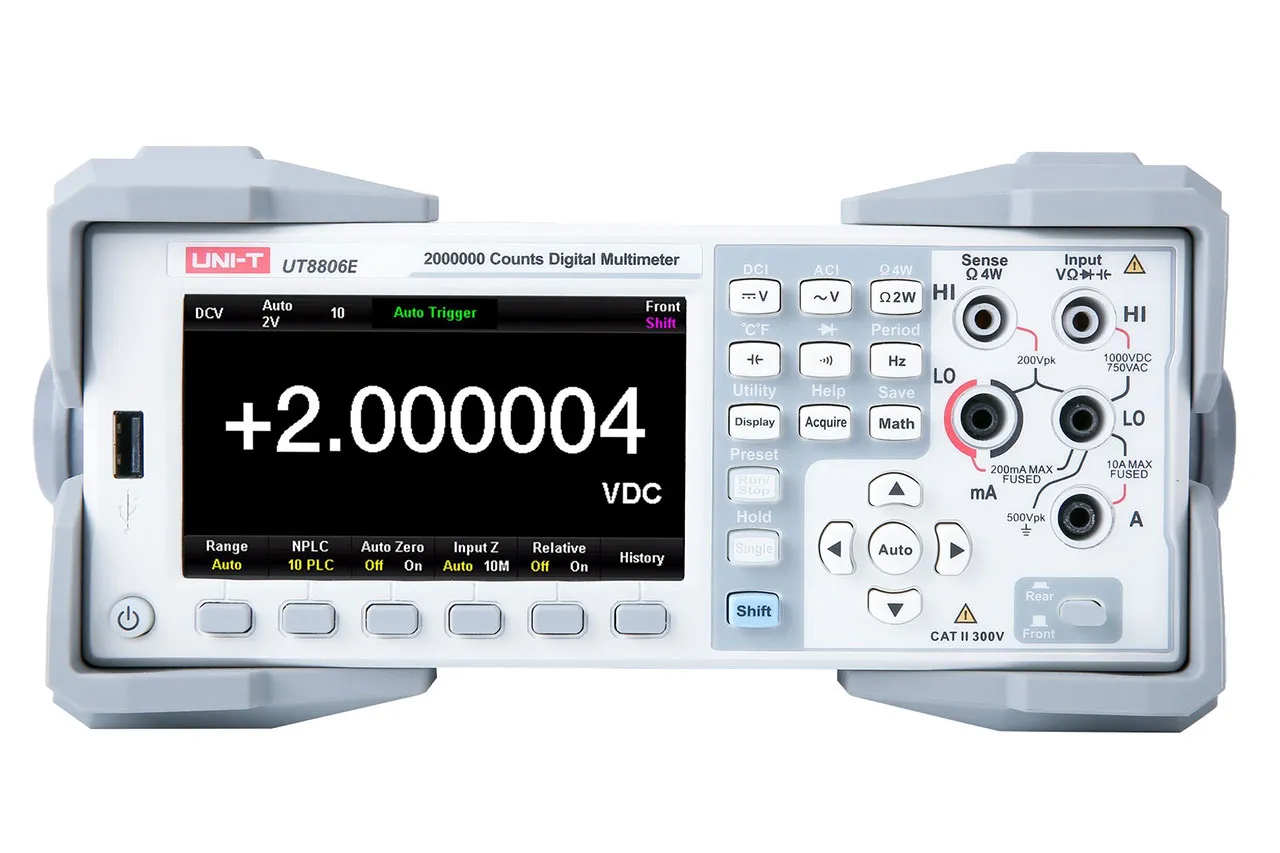

6.5 Digit Performance-Series Bench Digital Multimeter

Features

  • 6.5 Digit Display, Auto-Ranging, TRMS, 1,999,999 Counts, 0.0035% Accuracy, Dual Display 4.3in TFT
  • Display Size: 4.3 in.
  • Warranty: 3 years
  • Interface: LAN, USB, RS232
  • Prop65: No
  • Reach: No

Overview

Benchtop multimeter for the engineering or R&D team with 6 1/2 digit display.

Technical Specifications

  • Other Accessories: USB printing cable, RS232 interface cable, UT-L41 alligator clip short test cable, UT8805 pen, K-type temperature probe
  • Accessories Universal Accessories: Power cord
  • Packing List: English download guide, multi-language safety manual, calibration report (COC)
  • Software Downloads
  • T Screen: No
  • Digits: 6.5
  • Count: 1,999,999
  • Auto Ranging: Yes
  • Trms: Yes
  • Accuracy: 0.0035%
  • Fastest Test Rate: 10k rdgs/s
  • Frequency Response: 300KHz

Product Identification

Product Type:Benchtop True RMS Digital Multimeter
Additional Feature:Min/Max/Avg/Standard Deviation/Rel/Trend, Bar Chart, Histogram, Pass/Fail
Manufacturer Series:UT8000E

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Style:Benchtop

Features

Resistance Range (Ohms):0 to 1G
Autorange:Yes
True RMS:Yes
PC Interface:USB, LAN, RS-232, GPIB (option)
Display Digits:6.5
DC Current Range (A):2u to 10
Capacitance Range:2 nF to 100 mF
Frequency Range:3 Hz to 1 MHz
AC Current Range (A):200u to 10
Measurement Temperature Range (Deg F):Thermocouple & Thermal Resistance Sensor
Display Count:2000000
Voltage Range (VDC):200m to 1000
Voltage Range (VAC):200m to 750
Measurement Temperature Range (Deg C):Thermocouple & Thermal Resistance Sensor
Function:Voltage, Current, Frequency, Resistance, Capacitance, Temperature, Continuity, Diode
,
