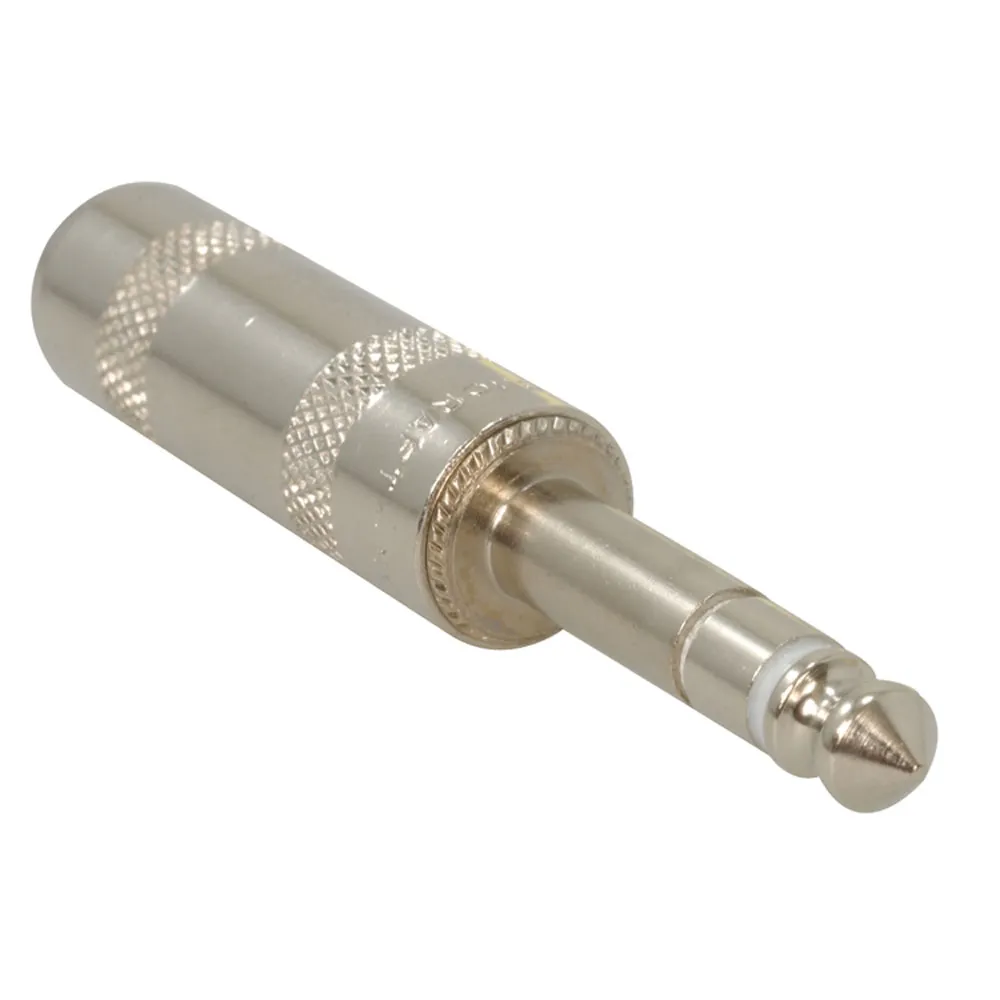

6.35mm (1/4") Headphone Phone Plug Stereo 3 Conductor TRS Connector

Specifications

  • Series: LITTEL-PLUG®
  • Part Status: Active
  • Connector Type: Phone Plug
  • Gender: Male
  • Signal Lines: Stereo (3 Conductor, TRS = tip, ring, sleeve)
  • Industry Recognized Mating Diameter: 6.35mm (0.250", 1/4") - Headphone
  • Actual Diameter: 0.250" (6.35mm)
  • Number of Positions/Contacts: 3 Conductors, 3 Contacts
  • Internal Switch(s): Does Not Contain Switch
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Solder
  • Shielding: Shielded
  • Features: -
  • Insulation Color: -
  • Voltage - Rated: -
  • Mating Length/Depth: 1.188" (30.20mm)
  • Contact Material - Plating: Nickel
  • Body Material: Brass
  • Body Color: Silver
  • Includes: 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
  • Housing Material: Brass
  • Contact Material: Brass

Product Identification

Product Type:1/4", Stereo

Dimensions & Appearance

Mounting:Cable Mount
Body Orientation:Straight
Color:Silver
Dimensions:73.7L x 7.6 ID (mm)

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C

Features

Number of Contacts:3
Contact Material:Copper Alloy
Termination Method:Solder
Contact Plating:Nickel
Housing Material:Polyethylene
Gender:Plug
Voltage Rating:25 VDC
Current Rating:1 A
,
