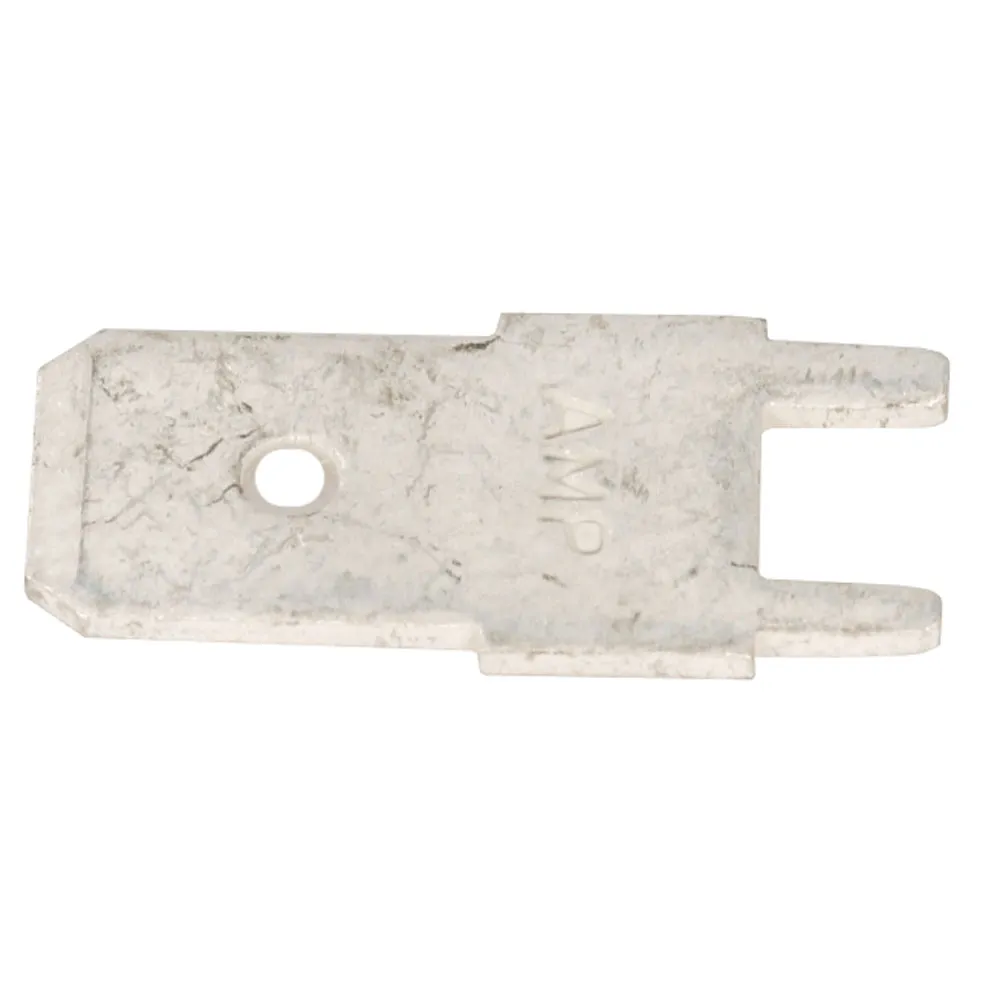

6.35mm Male Faston Quick Disconnect Tab Terminal PCB Mount

Specifications

  • Product: Quick Disconnects (Quick Connect, Fast-On)
  • Packaging: Loose Piece
  • Stud / Tab Size: 6.35 mm x 0.81 mm
  • Termination Style: Solder
  • Gender: Male
  • Insulation: Not Insulated
  • Contact Plating: Tin
  • Contact Material: Brass
  • Series: 250 FASTON
  • Tradename: FASTON
  • Current Rating: N/A
  • Insulation Material: N/A
  • Tab Width: 6.35 mm (0.25")
  • Tab Thickness: 0.81 mm (0.032")
  • Tab Length: 7.92 mm (0.312")
  • Overall Length: 15.8 mm (0.622")
  • Material: Brass
  • Mounting Angle: Straight
  • Mounting Method: Through Hole
  • Width: 6.35 mm
  • Brand: TE Connectivity / AMP

,
