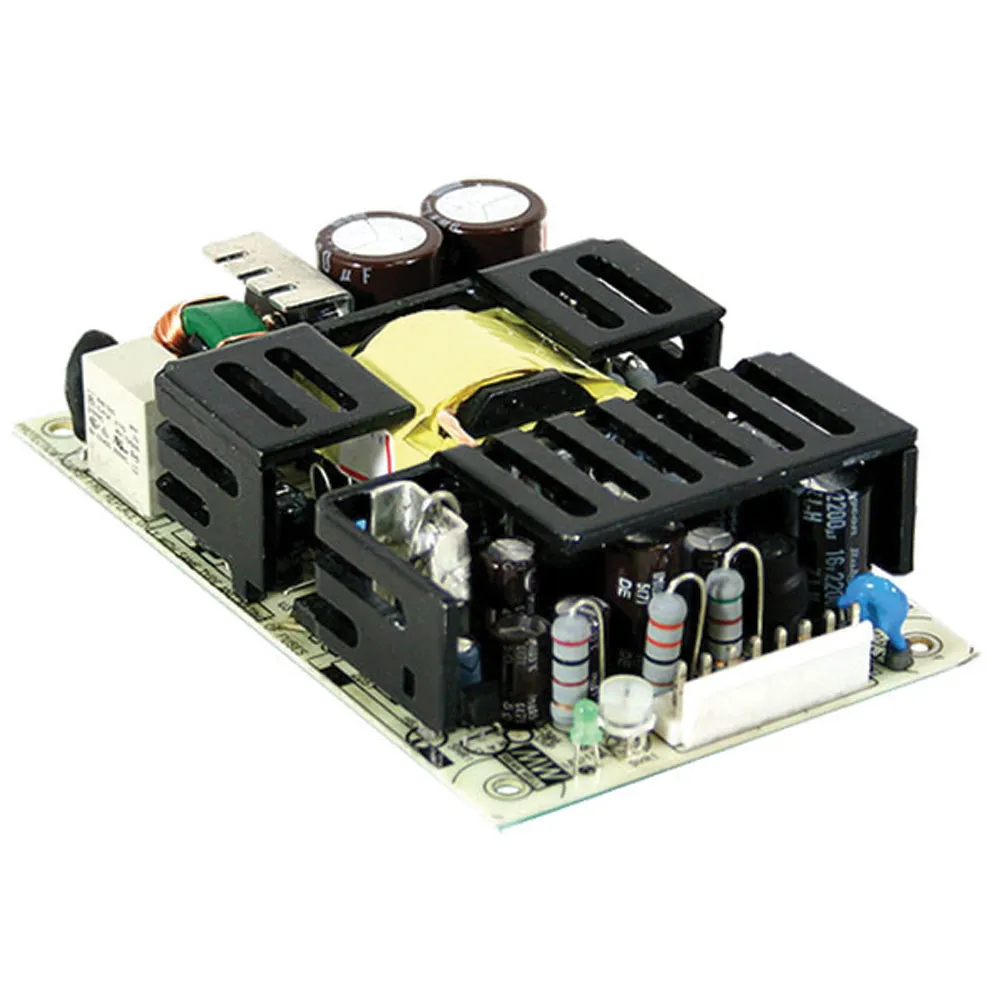

62W Triple Output Regulated Switching Medical Power Supply


Channel 1: 3.3 Volts @ 6 Amps
Channel 2: 5 Volts @ 6 Amps
Channel 3: 12 Volts @ 1 Amp

Features:

  • Input voltage range: 90-264VAC @ 47-63Hz, or 127-370VDC
  • Efficiency: 74%
  • Protections: Short circuit / Overload / Over voltage
  • Free air convection for rated power and 23.5CFM forced airconvection for peak load
  • UL60601-1 / IEC60601-1 / EN60601-1 medical safety approved
  • Fixed switching frequency at 65KHz
  • Low leakage current <200µA
  • Size: 6.3"L x 3.8"W x 1.5"H
  • Weight: 0.57 lbs.

    • Product Identification

    Type:Auto Switching SMPS
    Product Type:AC to DC Power Supply SMPS
    Manufacturer Series:RPT-75

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Medical Open Frame
    Height:1.2 in.
    Width:3 in.
    Length:5 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.5 A

    Output

    Number of Outputs:3
    Additional Output Voltages (VDC):5 VDC, 12 VDC
    Output Connector Diameters:N/A
    Output Connector Type:JST B8P-VH or equiv.
    Output Voltage:3.3 VDC
    Output Current:6 A

    Features

    Minimum Isolation Voltage:4000V
    Efficiency:74%
    Power Rating:61.8 W
    ,
