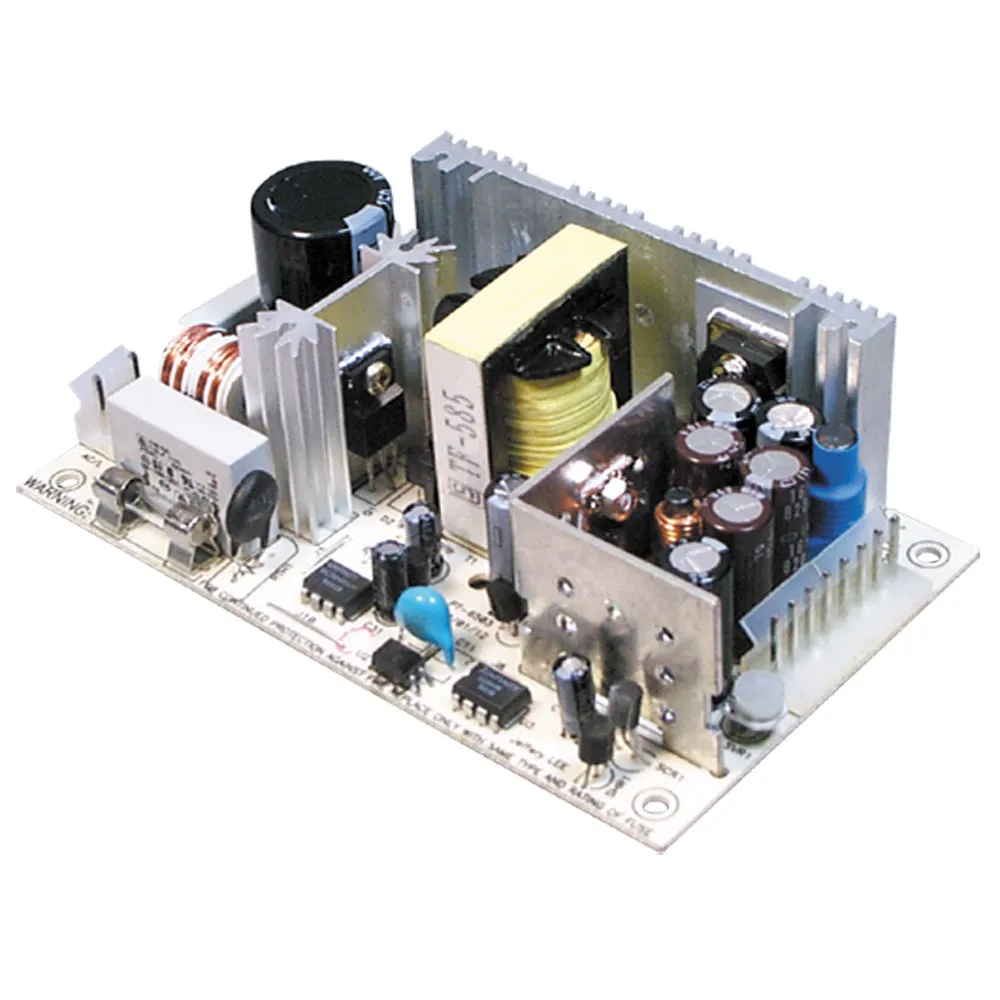

61.8W Triple Output Switching Power Supply



Ch 1: 3.3 Volts @ 7 Amps
Ch 2: 5 Volts @ 10 Amps
Ch 3: 12 Volts @ 1.2 Amps

Features

  • Universal AC input/Full range
  • Low leakage current<0.5mA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at 65KHz
  • 2 years warranty

    • Product Identification

    Manufacturer Series:PT-6503

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.70 in.
    Width:3 in.
    Length:5 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:3
    Additional Output Voltages (VDC):5, 12
    Output Voltage:3.3 VDC
    Output Connector Type:Molex 5273-08
    Output Current:6 A

    Features

    PFC Function:No
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:72%
    Power Rating:61.8 W
    ,
