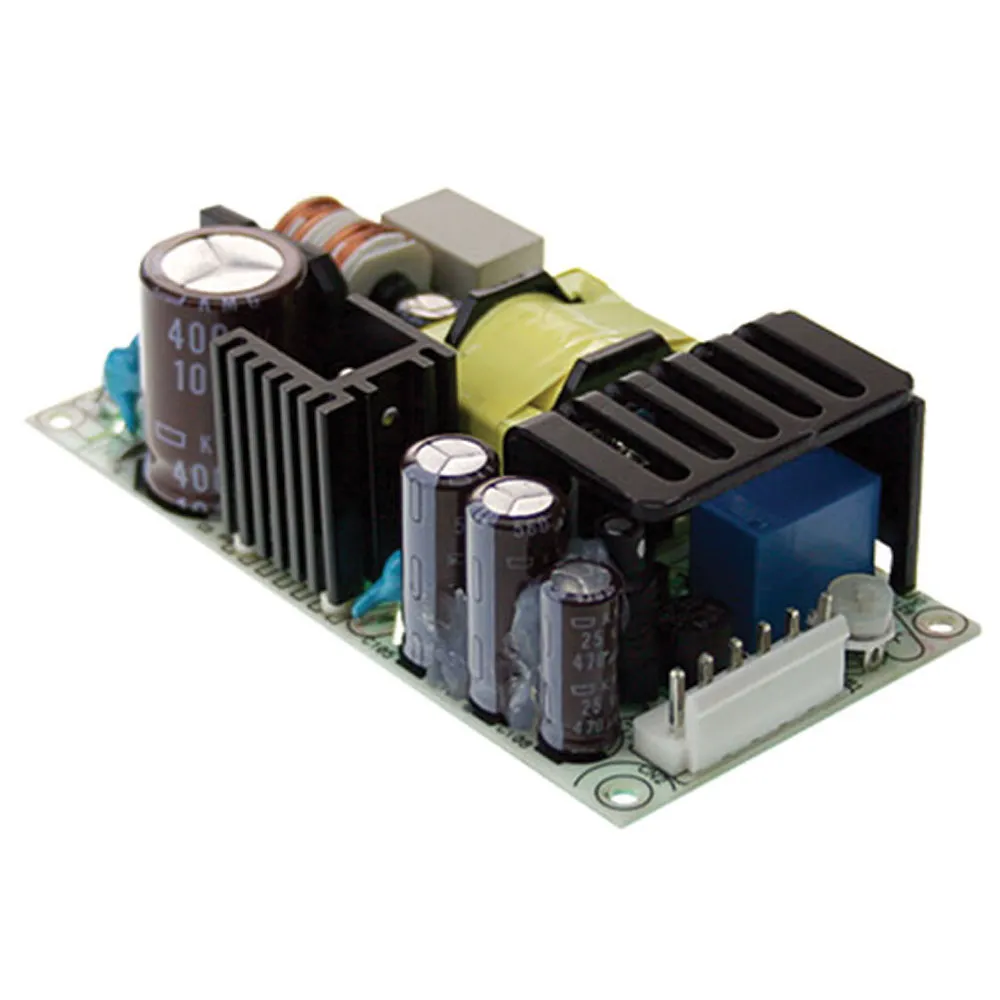

60W Single Output Regulated Switching Power Supply with Battery Charger (UPS Function)


Channel 1: 27.6 Volts @ 1.4 Amps
Channel 2: 27.6 Volts @ 0.75 Amps

Find out more about MEAN WELL Security Power Solutions.

Features:

  • Input voltage range: 90-264VAC @ 47-63Hz, or 127-370VDC
  • Efficiency: 84%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Battery low protection / Battery polarity protection by fuse
  • Alarm signal for AC ok and battery low
  • 100% full load burn-in test
  • Optional case enclosure included
  • Size: 4.1"L x 2.4"W x 1.5"H
  • Weight: 0.63 lbs.

    • Product Identification

    Manufacturer Series:PSC-60

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Height:1.10 in.
    Width:2 in.
    Length:4 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.6 A

    Output

    Number of Outputs:2
    Output Connector Type:JST B6P-VH or equiv.
    Output Voltage:27.6 VDC
    Additional Output Voltages (VDC):27.6
    Output Current:2.15 A

    Features

    PFC Function:No
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:84%
    Power Rating:60 W
    ,
