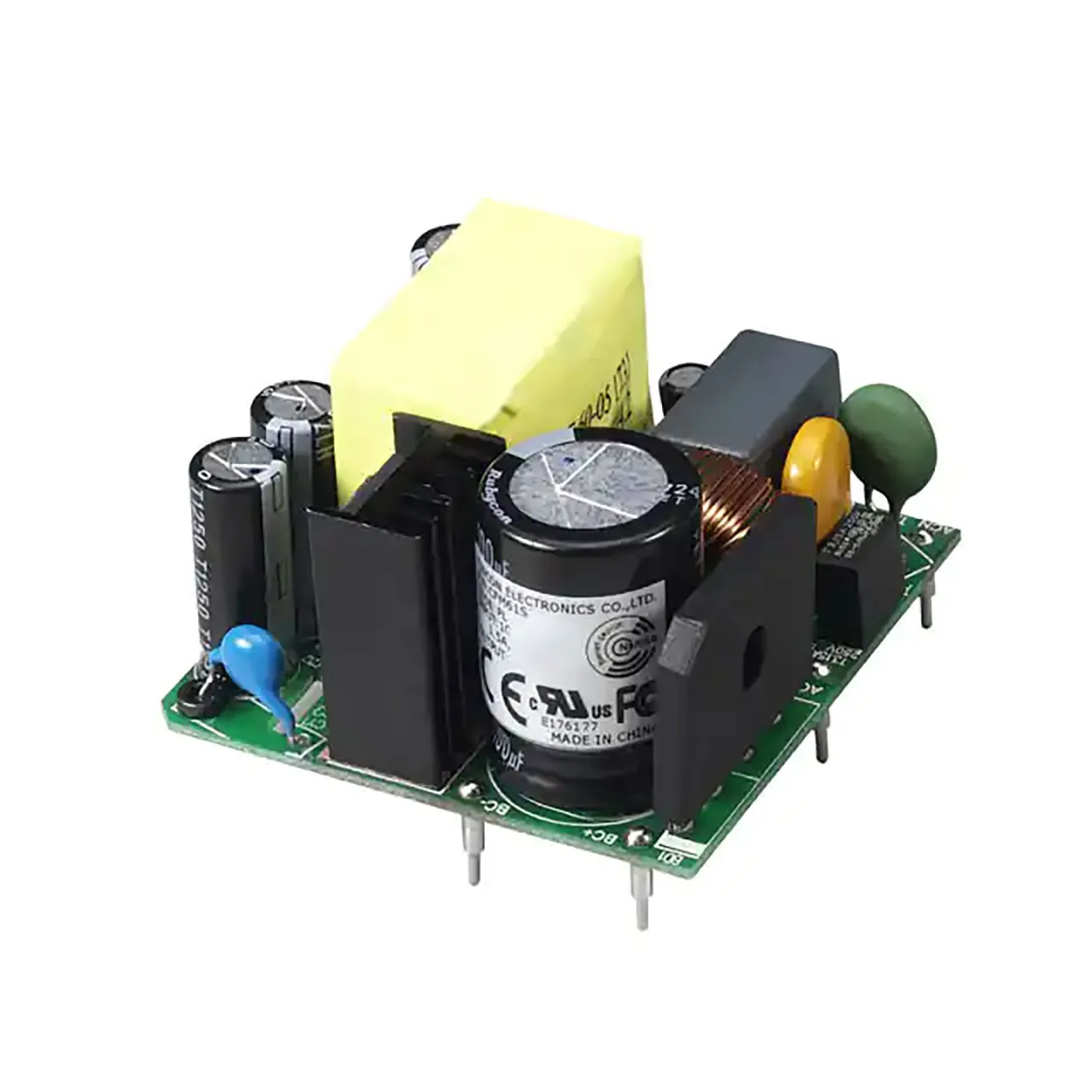

60W Single Output AC-DC Open Frame Power Supply 12VDC 5A

Features

  • Universal Input Range 90 to 264 Vac
  • Efficiency up to 88%
  • Meets EN55032 Class B and CISRP/FCC Class B
  • Approved IEC62368-1, UL62368-1, EN62368-1
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • No Load Power Consumption < 0.15W
  • Class II

Product Identification

Additional Feature:Class 2
Manufacturer Series:CFM61S
Product Type:Open Frame AC-DC Power Module

Compliance

Agency Approvals: CE, CUL, D, EN, FCC, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.40 in.
Width:2 in.
Length:2 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Connector Diameters:0.071 in.
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:5 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000VAC
Efficiency:88%
Power Rating:60 W
,
