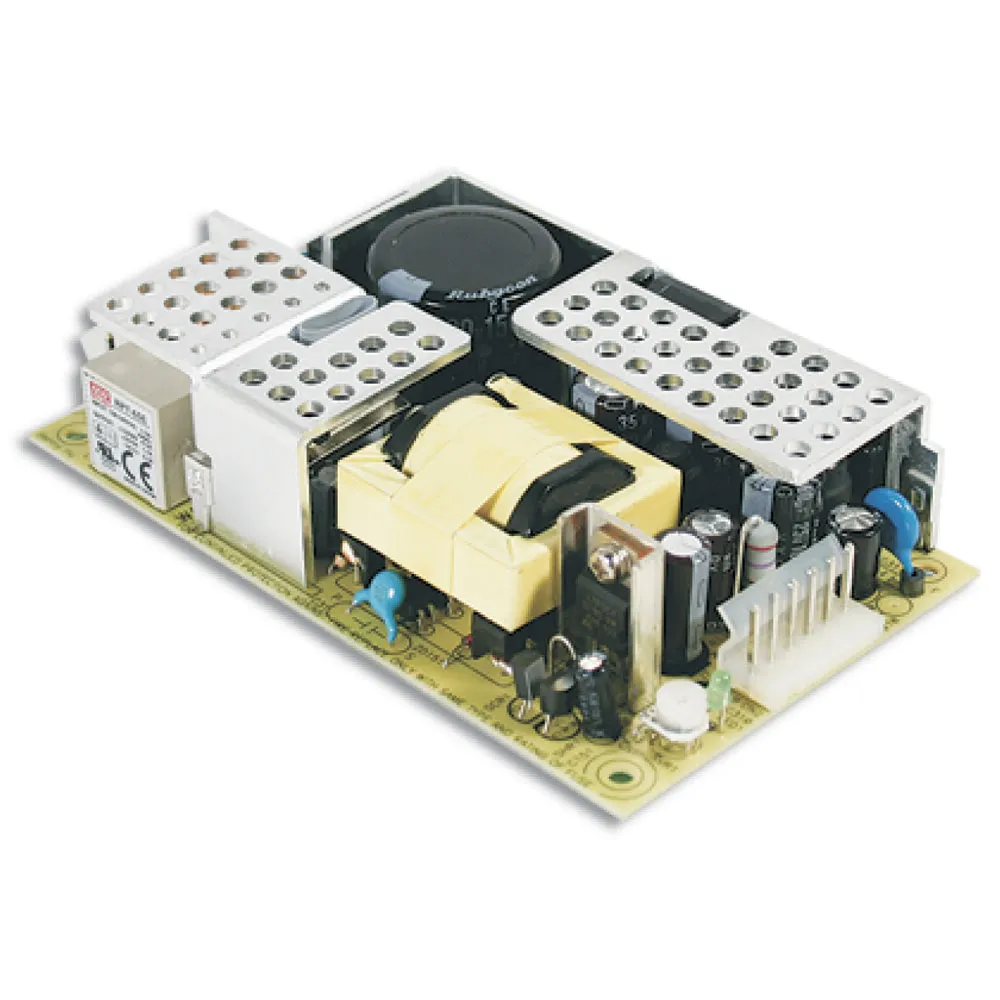

60W Dual Output Regulated Switching Power Supply



Channel 1: 24Volts @ 2.25Amps
Channel 2: 5Volts @ 1.2Amps

Features

  • Input voltage range: 90-264VAC @ 47-440Hz, or 127-370VDC
  • Efficiency: 81%
  • Protections: Short circuit / Overload / Over voltage
  • 60W free air convection, 77W with 18CFM forced air
  • Fixed switching frequency at 65kHz
  • Low leakage current <1mA
  • 100% full load burn-in test
  • Includes optional enclosure cover
  • Size: 5.1"L x 3.3"W x 1.5"H
  • Weight: 0.53 lbs.

    • Product Identification

    Manufacturer Series:RPD-65

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.10 in.
    Width:3 in.
    Length:5 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 440 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.5 A

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):5
    Output Connector Type:Molex 5273-06
    Output Voltage:24 VDC
    Output Current:2.90 A

    Features

    PFC Function:No
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:81%
    Power Rating:60 W
    ,
