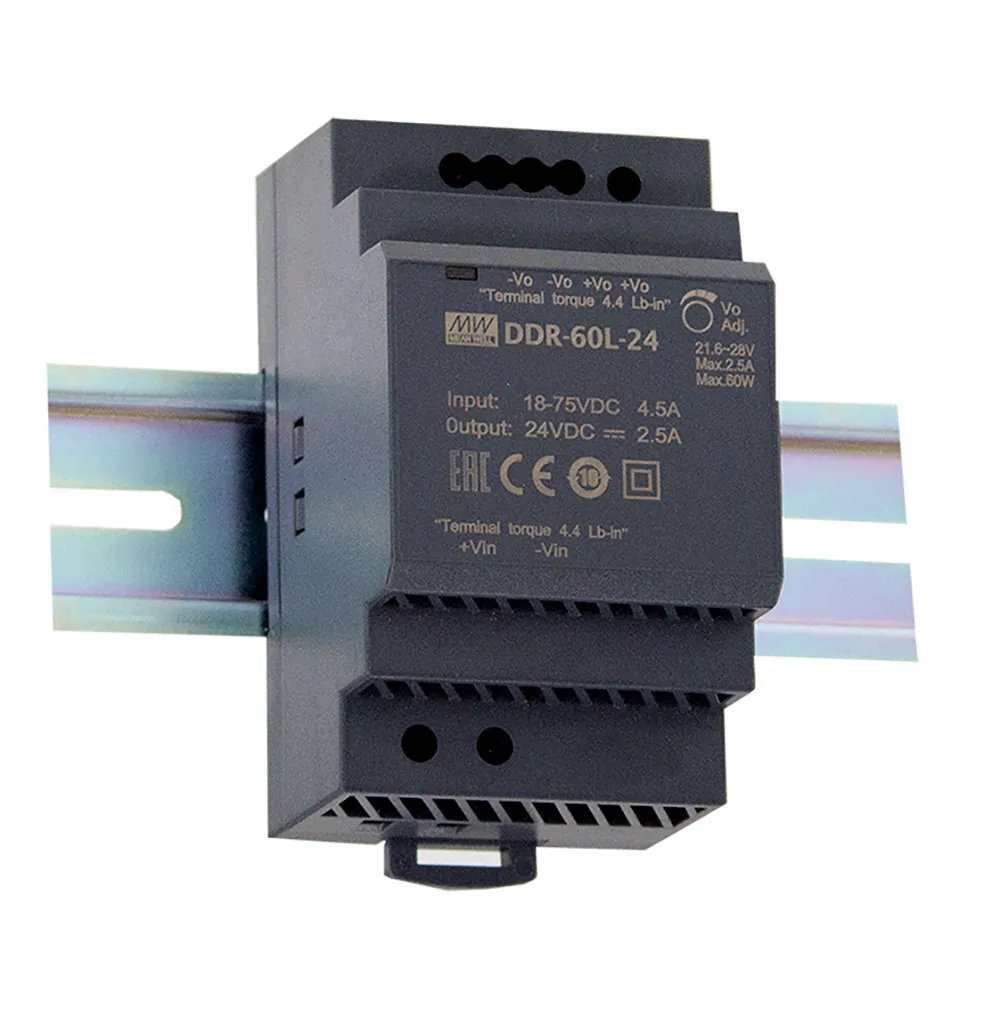

60W DIN Rail Type DC-DC Converter 18-75VDC Input L-Series [email protected] Output

24 Volts @ 2.5 Amps Output

Features

  • Width only 52.5mm (3SU)
  • -40 to 85°C
  • 4:1 wide input range
  • DC output adjustable(±10%)
  • 4000 VDC I/O isolation
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Cooling by free air convection
  • Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection
  • No minimum load required
  • 3 year warranty

Applications

  • Telecom or Datacom system
  • Factory automation
  • Electro-mechanical
  • Wireless network
  • Semi-conductor fabrication equipment
  • Industrial control system

    • Product Identification

    Manufacturer Series:DDR-60
    Product Type:DC-DC Converter SMPS

    Compliance

    Agency Approvals:CE

    Dimensions & Appearance

    Mounting:DIN Rail
    Color:Carbon
    Width:2.06 in.
    Height:2.30 in.
    Length:3.54 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:85°C

    Input

    Input Voltage Range:18 VDC to 75 VDC
    Input Voltage:48 VDC
    Maximum Input Current:2.0 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):24 VDC
    Output Connector Type:Screw Terminal Block
    Output Current (Channel 1):2.5 A
    Output Voltage:24 VDC
    Output Current:2.50 A

    Features

    Minimum Isolation Voltage:400VDC
    Switching Regulator:None
    Pins:4
    Efficiency:92%
    Power Rating:60 W
    ,
