60W Constant Voltage LED Driver 24V 2.5A UL8750 DALI-2 Dimming without Strain Relief
Features
- Constant voltage mode output
- Plastic housing with class II and PFC design
- Meets UL 8750 Class 2 / Class P power unit
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meets emergency lighting (EL) applications
- Without strain-relief option
- Dimming function: DALI-2 dimming + push dimming; minimum dimming level 0.1% (DALI-2 DT6)
- 5 year warranty
Overview

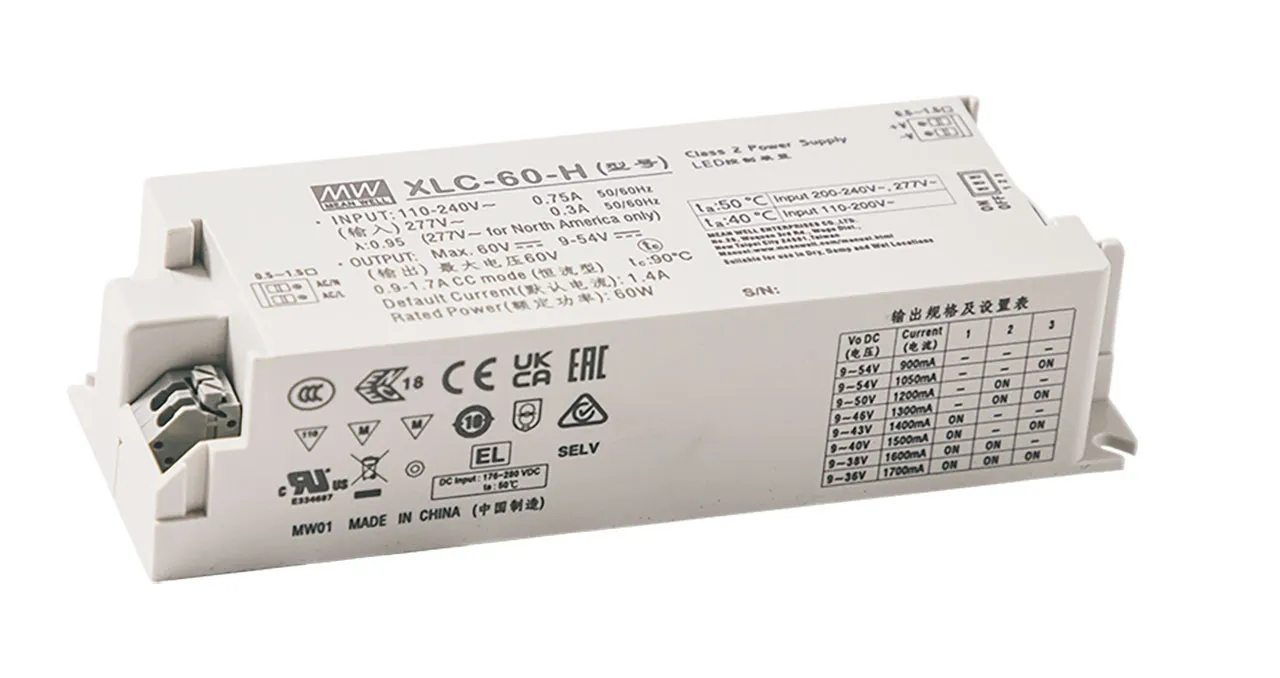

XLC-60 series is a 60 watt constant voltage output LED driver. It can operate from 110 VAC to 305 VAC and with high efficiency up to 90% over a temperature range from -25°C to 90°C under free air convection. The XLC-60 is designed based on the latest safety regulations with DALI-2 dimming option. XLC-60 can also be adjusted for brightness with a push button as a simple way of dimming, so it provides more flexibility for LED lighting applications.
Applications
- Recessed lighting
- Down light
- Panel light
- Commercial lighting
- Decorative lighting
- LED strip lighting
