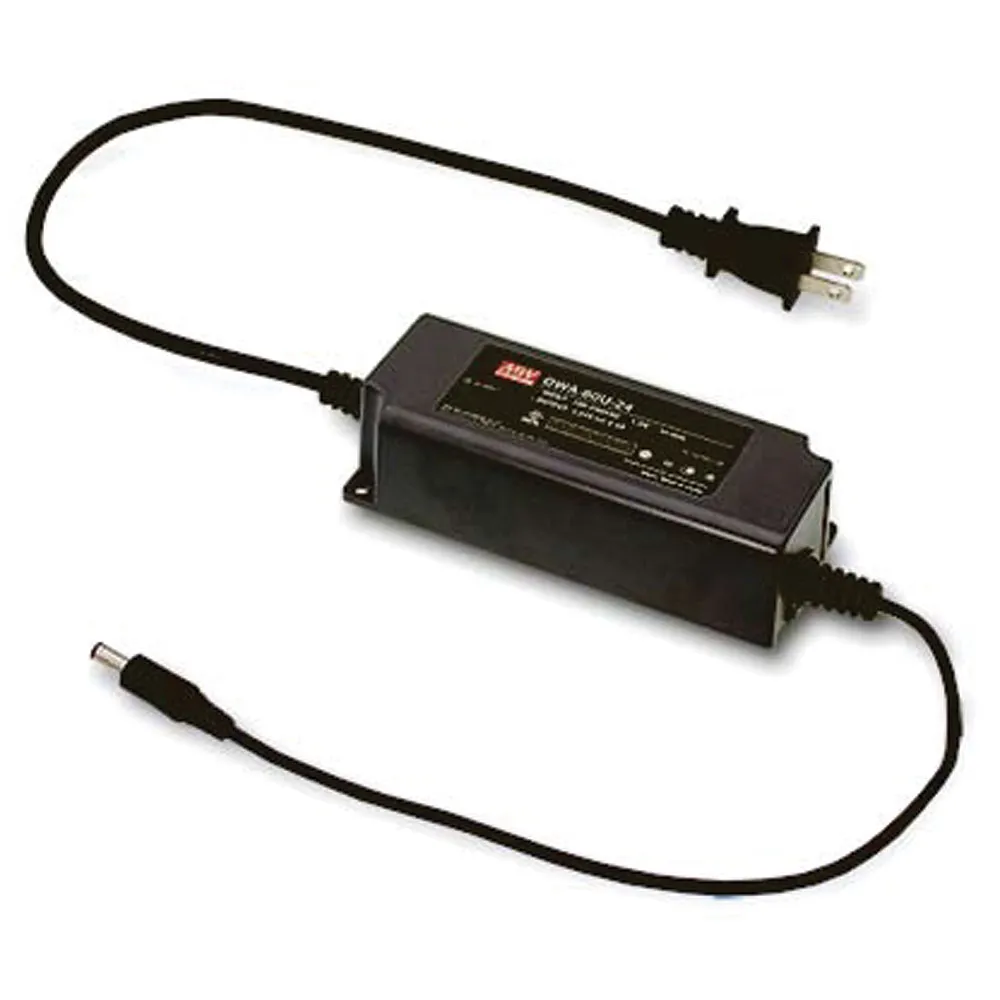

60W 4A 15V Single Output Switching LED Power Supply

Specifications

  • Output Power (W): 60
  • DC Voltage (V): 15
  • Rated Current (A): 4
  • Ripple & Noise (mV p-p): 150
  • Line Regulation (%): ±1.0
  • Load Regulation (%): ±1.0
  • Size (L x W x H) inches: 5.11 x 2.08 x 1.35
  • America type, 90 - 264VAC
  • Universal AC input/Full range
  • Suitable for dry, damp locations
  • Protections: short circuit, over voltage, overload, over temperature
  • Cooling by free air convention
  • 5 years warranty

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:OWA-60

    Compliance

    Agency Approvals: FCC, CUL

    Dimensions & Appearance

    Style:Desktop
    Color:Black
    Height:1.38 in.
    Width:2.09 in.
    Length:5.12 in.

    Operating conditions

    Minimum Operating Temperature:-35°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Connector Diameters:2.1mm x 5.5mm
    Output Voltage (Channel 1):15 VDC
    Output Connector Type:Cylindrical Female
    Output Voltage:15 VDC
    Additional Output Voltages (VDC):N/A
    Output Current (Channel 1):4 A
    Output Current:4 A

    Features

    Polarity:Center Positive
    Minimum Isolation Voltage:3750V
    Product Note:Level VI
    AC Power Cord:Included
    IP Rating:IP67
    Efficiency:88%
    Power Rating:60 W
    ,
