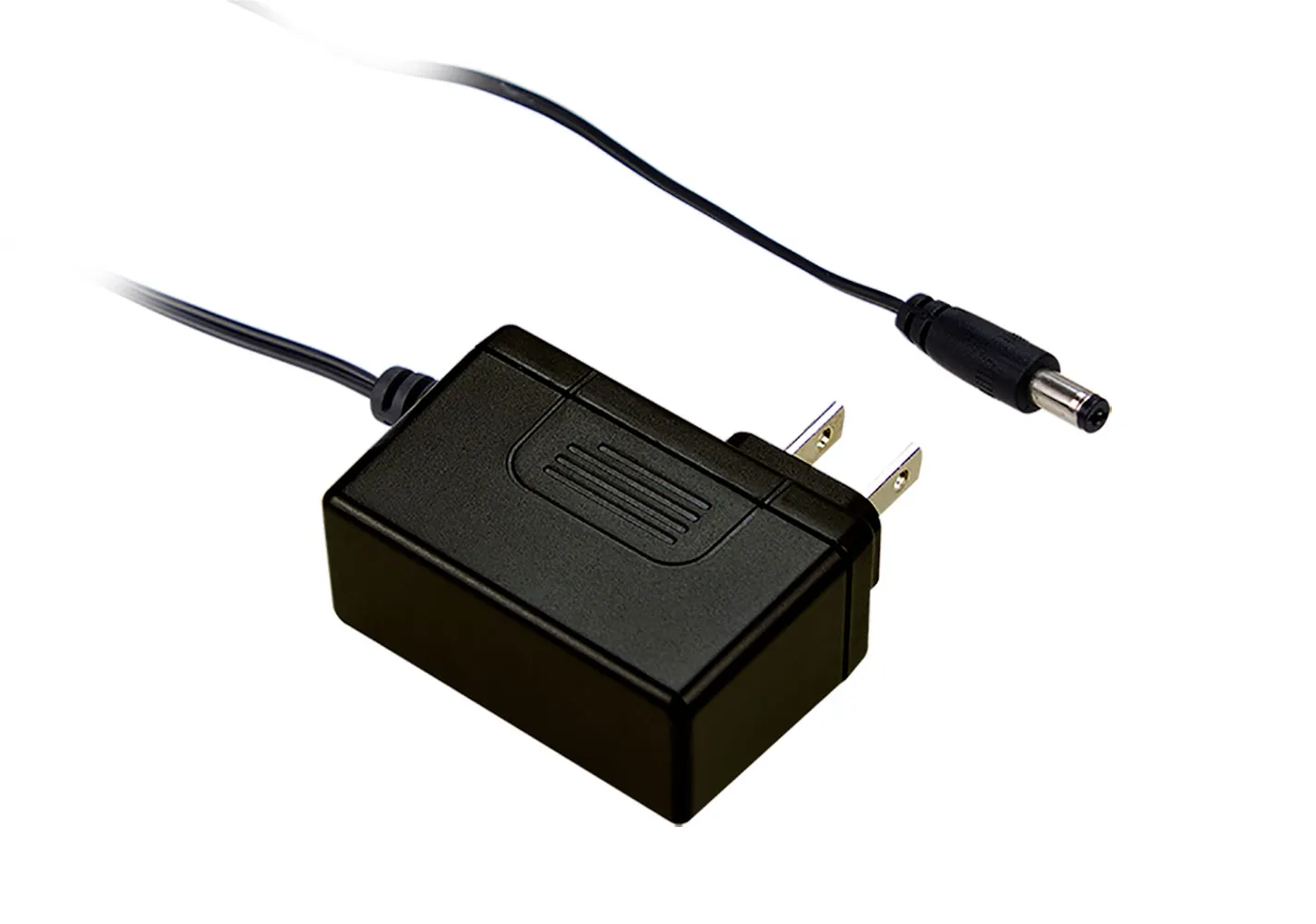

60W 48VDC 1.25A High Reliability Industrial Slim Wall-Mounted Power Supply 2.1mm Plug
Features
- Extremely small and space-saving, takes up only one spot on a power strip
- Universal AC input, full range
- 2 pole US plug, Class II power unit
- No load power consumption <0.15 W
- Energy efficiency Level VI
- Complies with EISA 2007/DoE
- Protections: Short circuit, overload, over voltage
- Full enclosed plastic case
- Pass LPS
- 3 year warranty
Specifications
- Output Voltage: 48 VDC
- Rated Current: 1.25 A
- Rated Power: 60 W
- Output Connector: 2.1mm x 5.5mm (ID x OD) cylindrical female barrel plug (center positive)
- Input Power: 90 VAC to 264 VAC @ 47 Hz to 63 Hz; 1.5 A
- Agency Approvals: UL, CUL, CB, FCC, EAC
- Size: 2.97"L x 1.26"W x 1.87"H
Applications
- Consumer electronic devices
- Telecommunications devices
- Office facilities
- Industrial equipment
- Power sourcing equipment for PoE
Overview
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:SGAS60U
Compliance
Agency Approvals: CB, CUL, EAC, FCC, UL
Dimensions & Appearance
Color:Black
Style:Slimline Wall Mount
Depth:1.87 in.
Height:1.26 in.
Length:2.97 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Packaging
Packaging:Carton
Input
Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Cord Length:4.92 ft.
Output Connector Diameters:2.1mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:48 VDC
Output Current:1.25 A
Features
Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Minimum Isolation Voltage:4242V
Efficiency:90%
Power Rating:60 W
