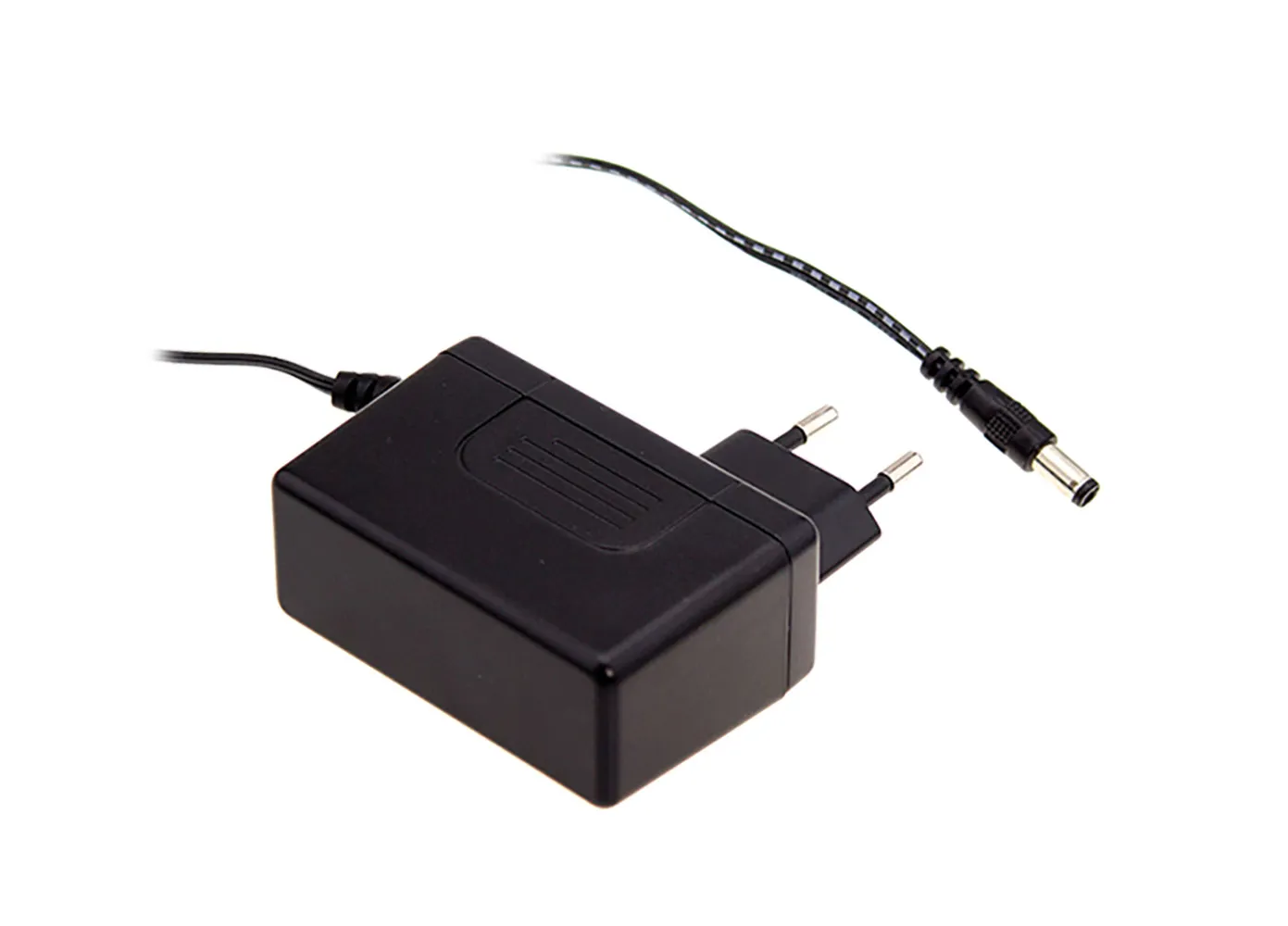

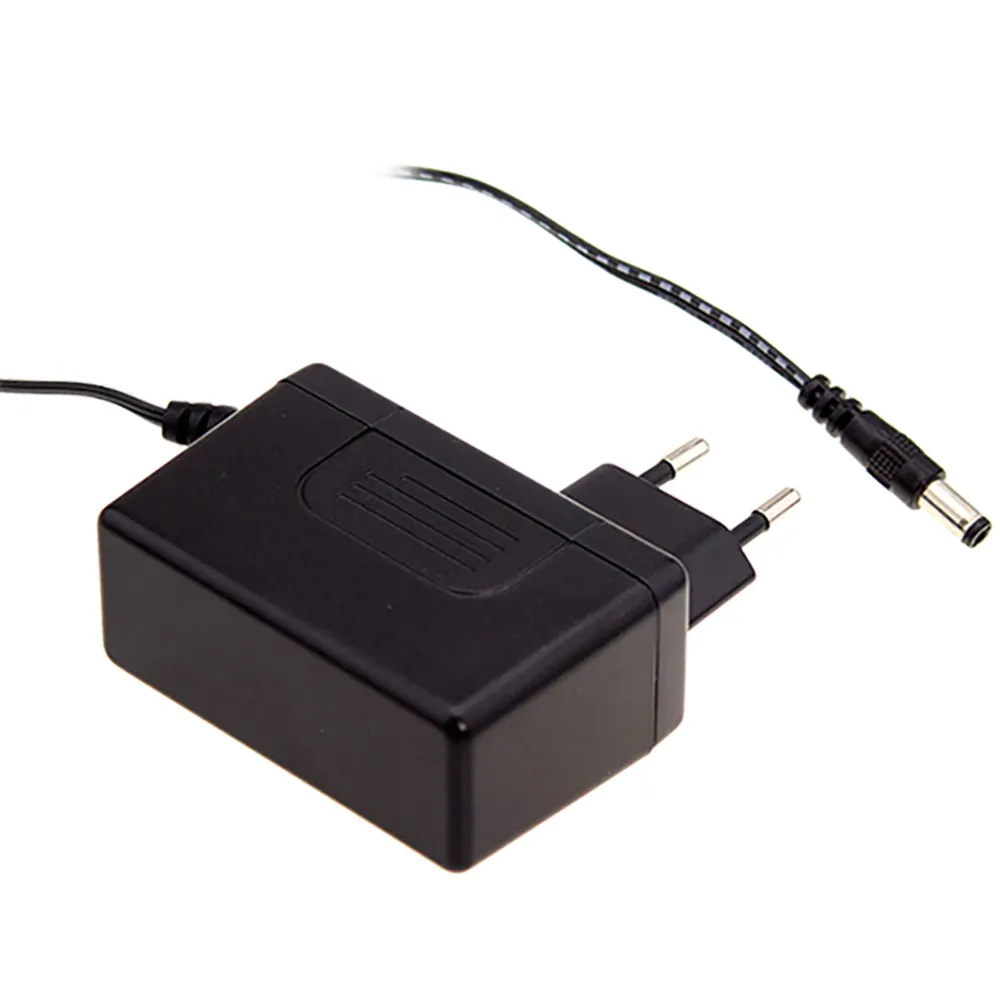

60W 24V 2.5A AC-DC High Reliability Green Slim European Wall-mounted Medical Adaptor 2.1mm Plug

24 Volts DC @ 2.5 Amps

Features

  • Output Connector: 2.1mm x 5.5mm, center positive cylindrical female plug
  • Medical safety approved (2 MOPP) according to ANSI/AAMI ES60601-1-1-11Ultra slim, compact size
  • Extremely Low leakage current
  • No load power consumption< 0.075W
  • Energy efficiency Level VI
  • Class II power
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • 3 year warranty

Applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device
  • Sleep apnea devices

Product Identification

Product Type:Switching SMPS
Manufacturer Series:GSM60E

Compliance

Agency Approvals:TUV, CB, CE, EN, EAC

Dimensions & Appearance

Color:Black
Style:Slimline Wall Mount
Width:1.26 in.
Height:1.87 in.
Length:2.97 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:CEE 7/16
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Cord Length:5 ft.
Output Connector Diameters:2.1mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:24 VDC
Output Current:2.50 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:88%
Power Rating:60 W
,
