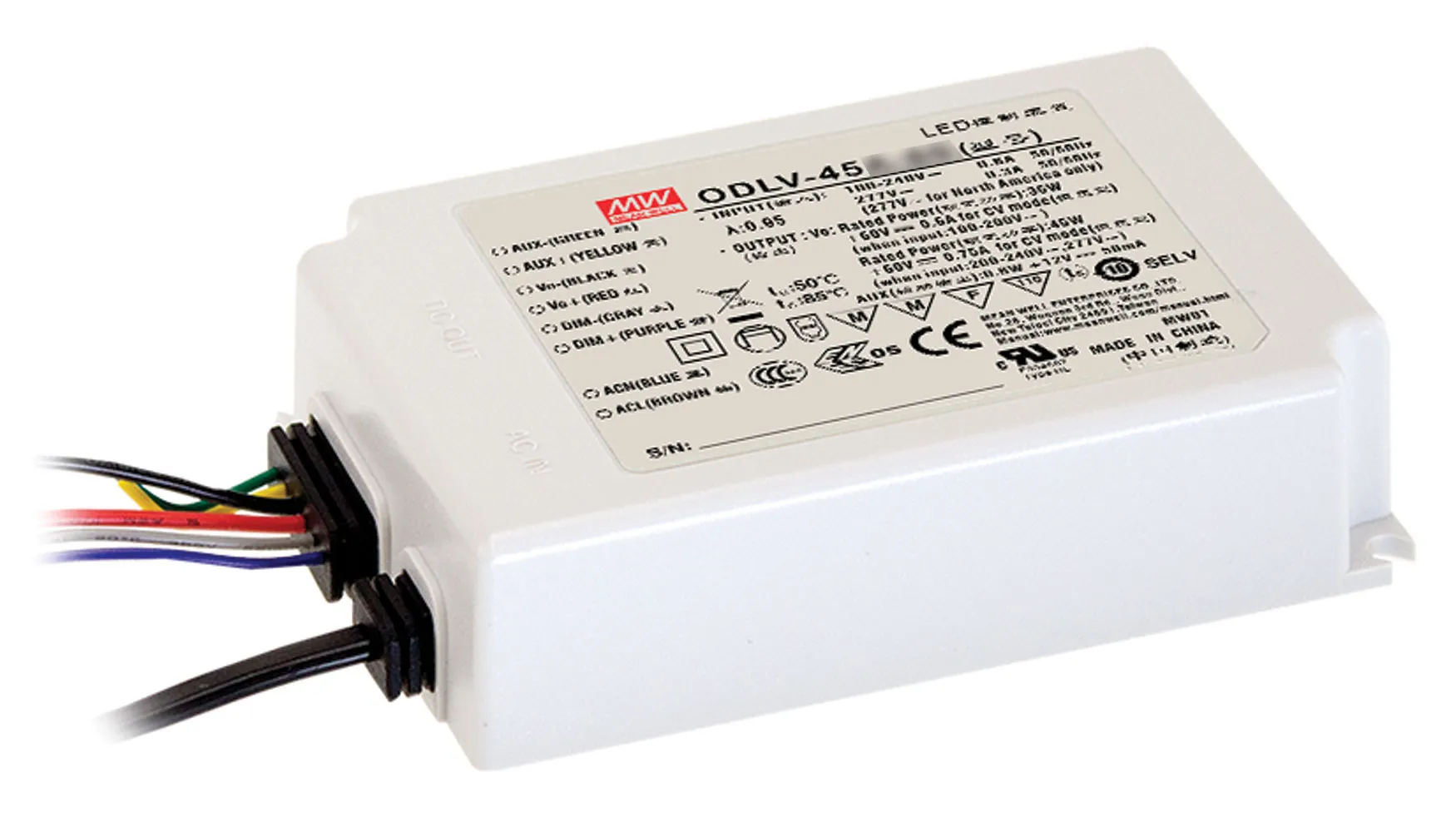

60V 750mA 45W PWM Output IP67 LED Driver with Dimming and Aux 12VDC Output

60 Volts DC @ 0.75 Amps

Features

  • "A" Type: 2 in 1 dimming (dim-to-off) and Auxiliary DC output
  • Constant Voltage PWM style output with 1KHz frequency
  • Plastic housing with Class II design
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • 3 year warranty

Specifications

  • Input voltage: 90 to 295 VAC @ 47-63 Hz
  • Size: 4.37" x 3.03" x 1.12"
  • Certification: UL, CUL, SELV, ENEC, CCC, CB, CE

Applications

  • LED strip lighting
  • Indoor LED lighting
  • LED decorative lighting
  • LED architecture lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:ODLV-45

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.12 in.
Width:3.03 in.
Length:4.37 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 295 VAC
Maximum Input Current:0.6 A

Output

Number of Outputs:2
Output Range:12 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:60 VDC
Output Current:0.75 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:90%
Power Rating:45 W
,
