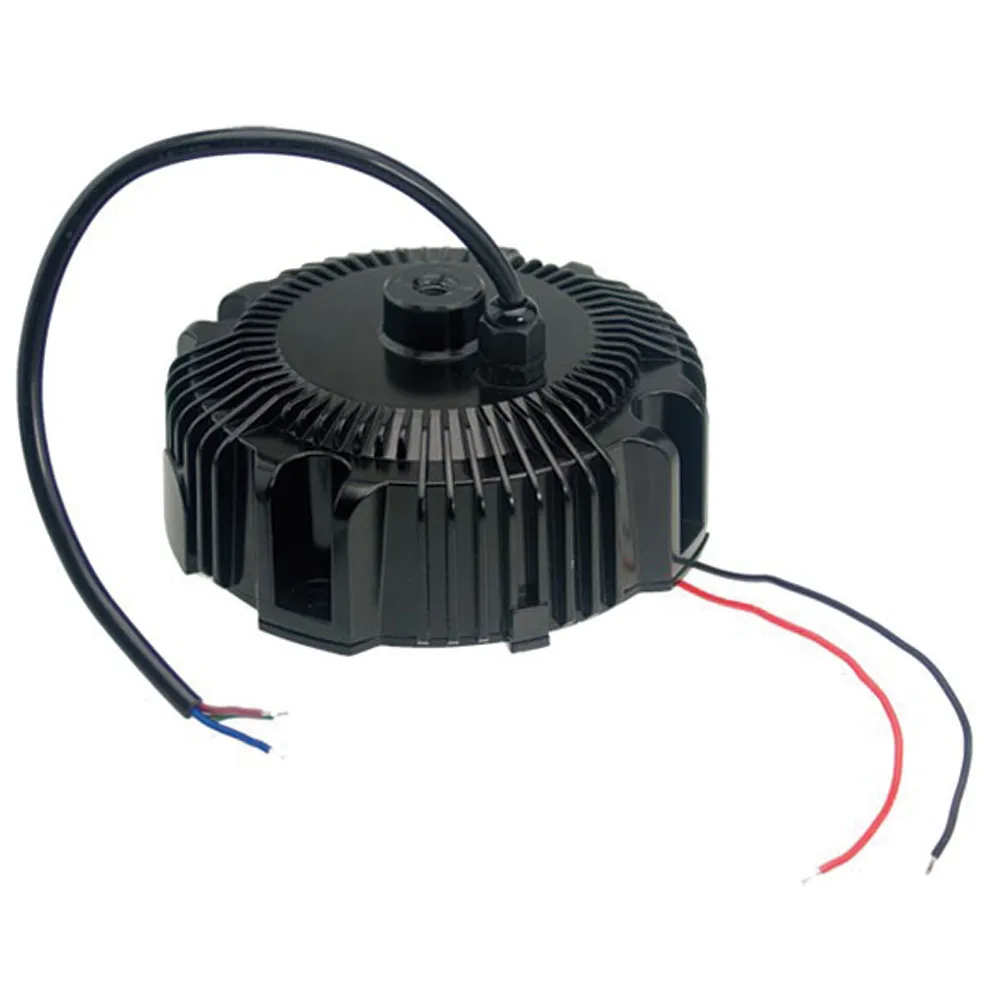

AC to DC Switching LED Power Supply Single Output with PFC Function 60 Volts 1.6 Amps 96 Watts

60 Volts @ 1.6 Amps

Specifications

  • Output Power (W): 96
  • Size (Dia x H) inches: 4.45 X 2.62
  • Ripple & Noise (mV p-p): 300
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 1%
  • Efficiency: 91.5%
  • Agency Approvals: UL/CUL/CE
  • Universal AC input / Full range up to 305 VAC
  • Built in active PFC function
  • Protections: short circuit, over voltage, over temperature, over current
  • High efficiency up to 91.5%
  • OCP point adjustable through internal potentiometer
  • IP65 rated
  • Suitable for dry, damp, and wet locations
  • 5 year warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HBG-100

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Black
Height:1.53 in.
Width:2.56 in.
Length:4.45 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:1.1 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:60 VDC
Output Current:1.60 A
Output Range:N/A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:91.5%
Power Rating:96 W
,
