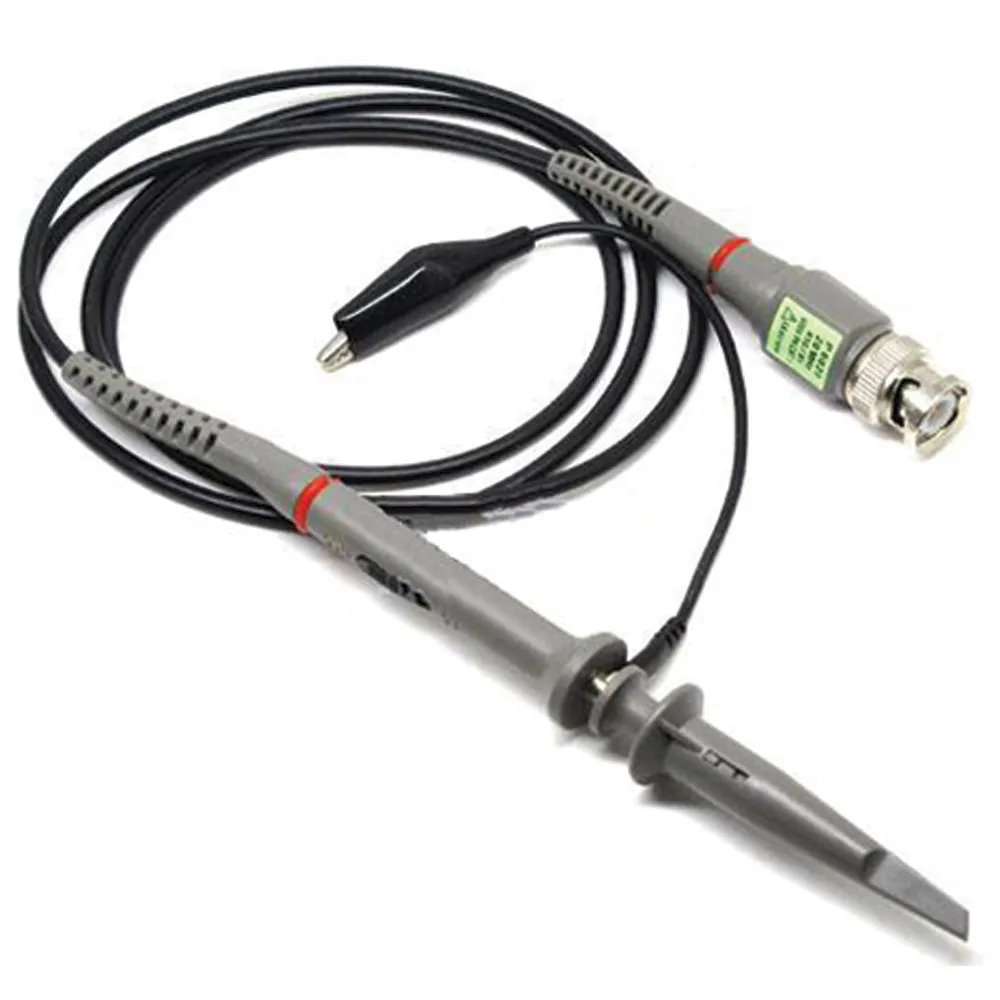

60MHz Passive Oscilloscope Probe

Features:

  • System bandwidth: DC~60MHz
  • Attenuation: x1, x10
  • Input resistance: 1MΩ ± 2% (x1), 10MΩ ± 2% (x10)
  • Input capacitance: 85pF~115pF (x1); 18.5pF~22.5pF (x10)
  • Maximum working input voltage: <150VDC + Peak AC (x1), or <300VDC + Peak AC (x10)
  • Cable length: 3.9 feet
  • Weight: <2 oz. (<55 grams)

    • Product Identification

    Product Type:Test Probe
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Length:46 in.

    Features

    Attenuation Ratio:10:1, 1:1
    Resistance:1M Ohm, 10M Ohm
    Bandwidth:60 MHz
    Capacitance:85-115 pF(1X), 18.5-22.5 pF(10X)
    Voltage Rating:300 V
    ,
