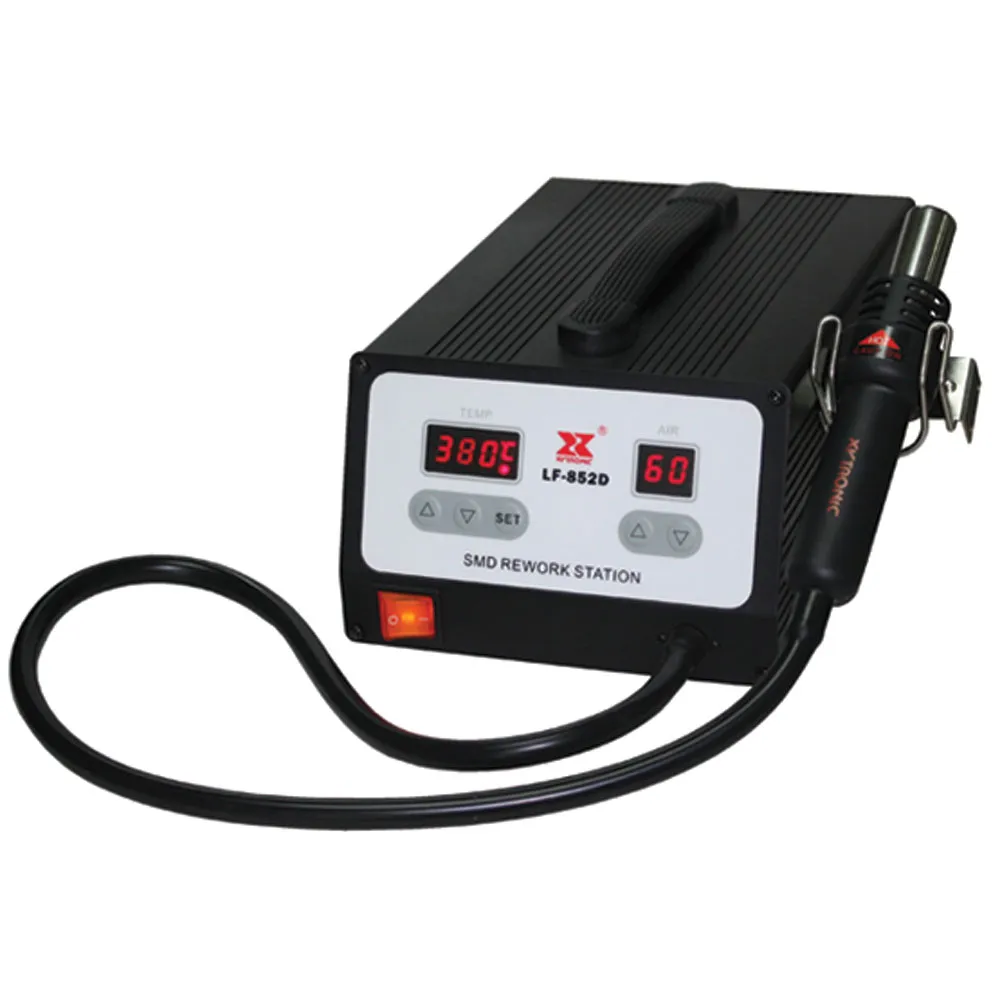

600W Surface Mount Rework Station

Features

• A long-life high power (600 Watts) ceramic heater ensures accurate and sufficient heat where you need it
• Air flow is continuously adjustable
• Electronically controlled temperature system with double display that shows temperature and air flow
• Auto-cooling design: When the power switch is turned off, the cooling system will begin to work automatically
• The same nozzle can be used for soldering and desoldering
• ESD safe
• Sensor/Pump Failed Detection: If sensor circuit fails, the heater power is shut down
• Temperature "Lock-Out" feature: The temperature can be locked with a password code - for production line management*
• Input: 100-120VAC @ 60Hz
• Pump: Diaphragm 115V or 120V / 230V or 240V
• Air Flow: 1.5-40 L/min.
• Temperature Range: 100°C to 480°C (212°F to 896°F)
• Size: 11.1"W x 4.72"H x 7.48"D (283 x 120 x 190mm)

Includes

• 5 stainless steel, anti-magnetic tweezers
• 4 air nozzles (focus hoods)
• IC extractor
• Replacement heating element

Available Nozzle Tip Accessories

• QFP 14mm²
• PLCC 17.5mm²
• SOP 8.6mm x 18mm

*Note: If the password reset does not work as per the user's manual, you may be able to bypass the temperature setting by turning it off and let it cool for a little. Then hold the button to change the temperature while turning it back on.
