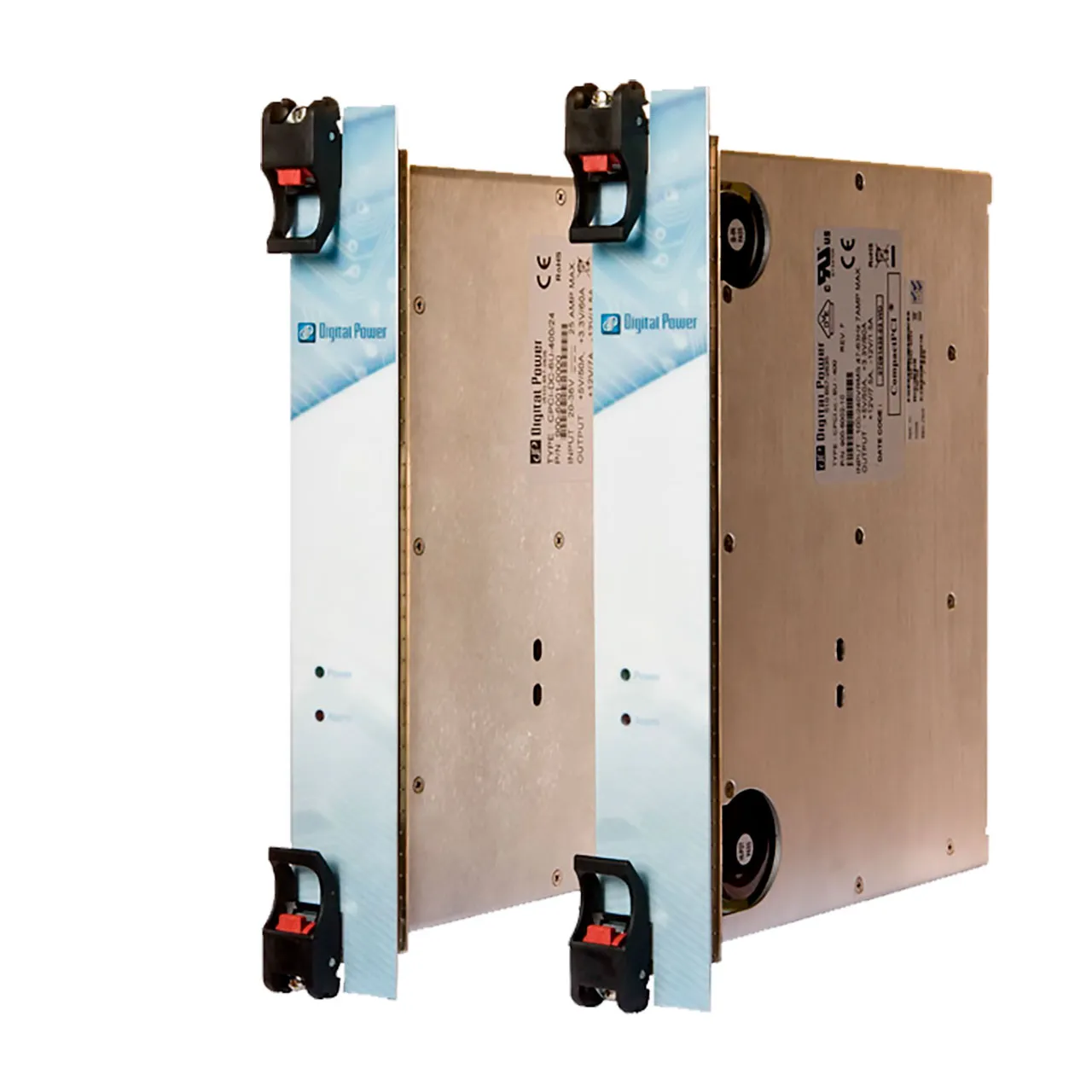

600W Compact PCI Power Supply Quad Output 6U AC Input

Features

  • Universal AC Input: 90 VAC to 264 VAC; 47-63 Hz
  • 6U cabinet
  • High current 3.3V and 5V outputs
  • Accurate current sharing
  • Internal Oring FETs for redundant applications
  • PICMG 2.11 compliant
  • UL/cUL 60950-1, IEC/EN60950-1 Approved (AC Input and 48 VDC Input)
  • EN55022 Level B Emissions (with external filter)

Overview

The CPCI 6U Series of power supplies offer industry leading performance with up to 650 Watts in a 6U package. A full range of AC Input, 24/28VDC Input and 48VDC Input products is available and all products are compliant to the PICMG 2.11 power interface specification. These CPCI products are ruggedized and excel in defense and harsh industrial applications.

Specifications

  • Output Power: 600 W
  • V1 Output: 5 V @ 70 A
  • V2 Output: 3.3 V @

,
