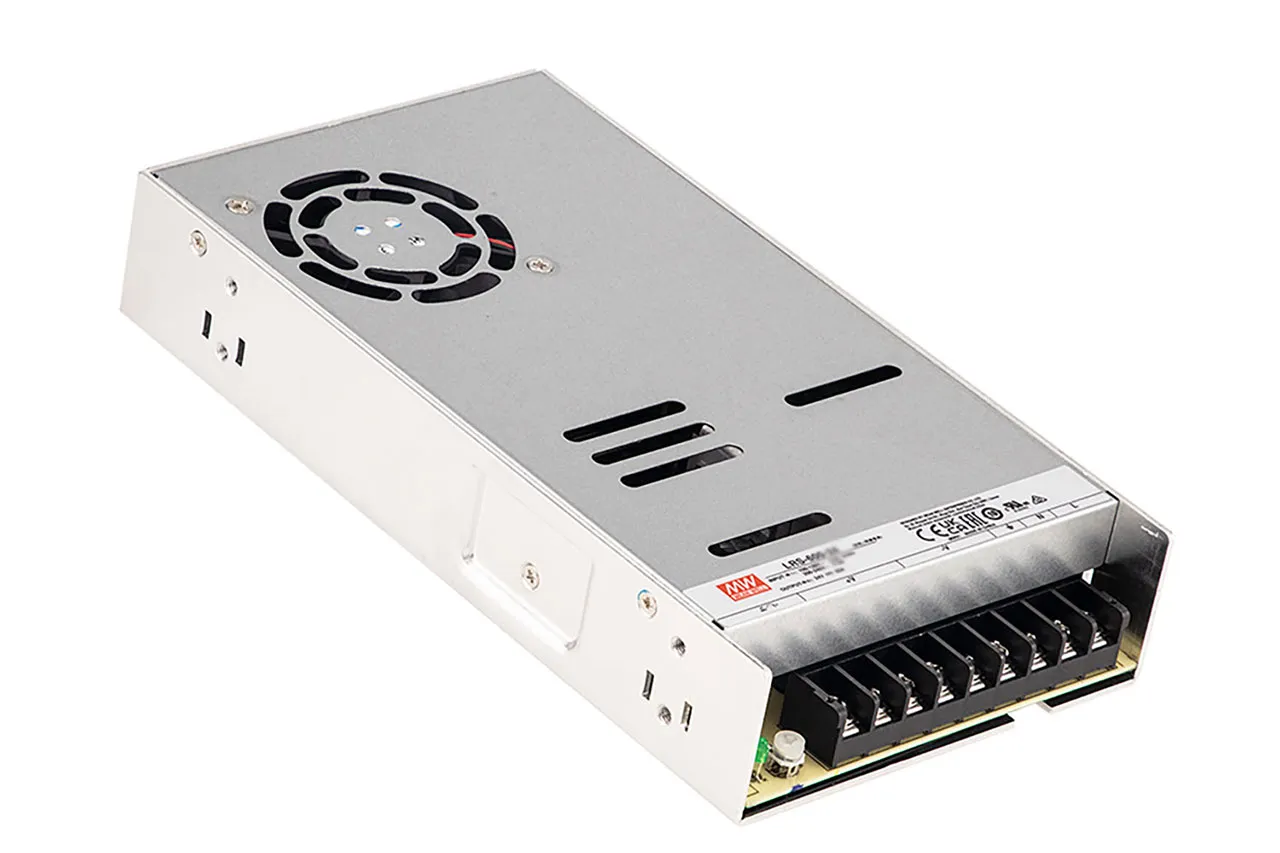

600W 12V 50A Enclosed Single Output High Peak Power Supply
Features
- AC input range selectable by switch
- Withstand 300 VAC surge input for 5 seconds
- Up to 200% peak power capability
- Protections: Short circuit, overload, over voltage, over temperature
- Over voltage category III (OVC III)
- Forced air cooling by built-in DC fan
- Built-in cooling Fan ON-OFF control
- 1U low profile
- Compliance to IEC/BS EN/EN61558-1 and 62368-1
- Operating altitude up to 2000 meters
- Withstand 5G vibration test
- LED indicator for power on
- High operating temperature up to 65°C
- High efficiency, long life and high reliability
- 3-year warranty
Overview
LRS-600N2 series is a 600W single-output enclosed type power supply with a 41mm low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 24V, 36V, and 48V. In addition to the high efficiency up to 92%, the built-in long life fan can work from -20°C to +65°C with full load.
LRS-600N2 has the complete protection functions and 5G anti-vibration capability and is compliant with international safety regulations such as IEC/UL 62368-1. LRS-600N2 series serves as a high price-to-performance power supply solution for various industrial applications. Moreover, it can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Applications
- Industrial automation machinery
- Industrial control systems
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
- For inductive and capacitive loads
