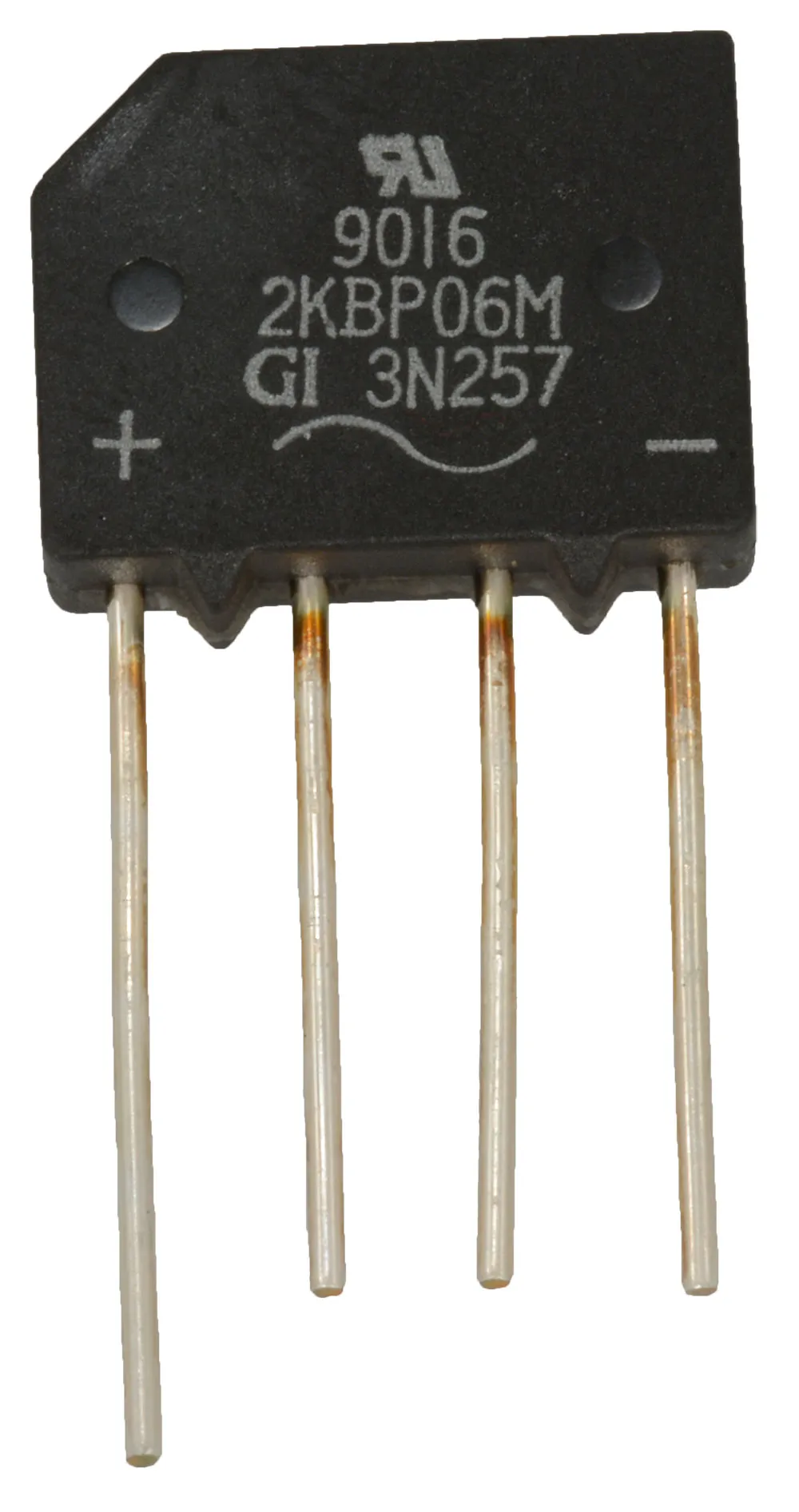

Single Phase Bridge Rectifier

Features

  • Type: Single Phase Bridge
  • Mounting Style: Through Hole
  • Termination Style: Through Hole
  • Package / Case: SIP-4
  • If - Forward Current: 2 A
  • Peak Reverse Voltage: 600 V
  • Vf - Forward Voltage: 1.1 V
  • Max Surge Current: 60 A
  • Minimum Operating Temperature: -55°C
  • Maximum Operating Temperature: +150°C
  • Length: 15.24 mm
  • Width: 5.08 mm
  • Height: 12.7 mm
  • Product: Bridge Rectifiers
  • Ir - Reverse Current: 5 uA
  • Pd - Power Dissipation: 4.7 W
  • Subcategory: Diodes & Rectifiers
  • Vr - Reverse Voltage: 420 V
  • Part # Aliases: 2KBP06M_NL
  • Unit Weight: 0.053546 oz

,
