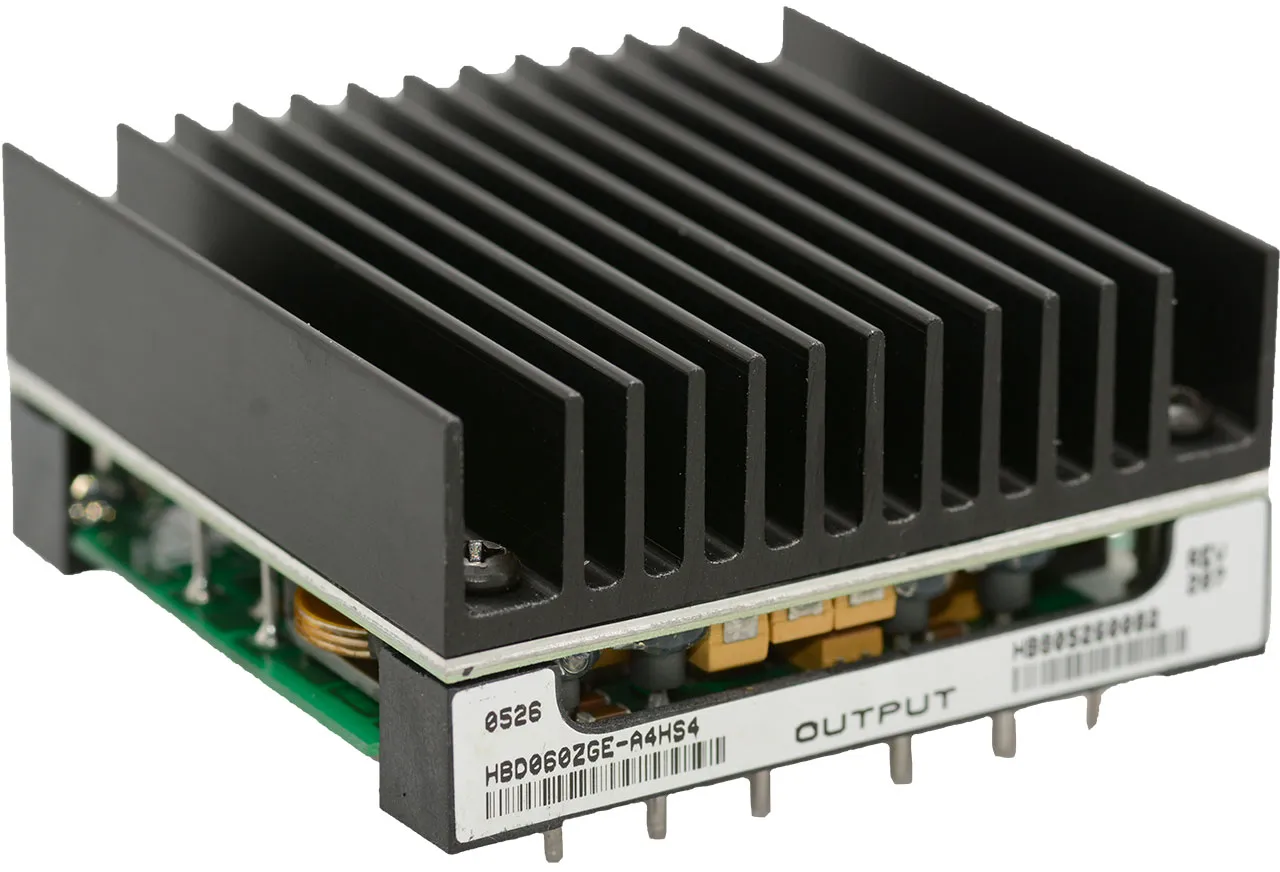

60 Watt Dual Output 5V and 3.3V DC-DC Converter Quarter Brick with Heatsink

HBD dual output, DC/DC converters feature high efficiency, 1500 VDC isolation, and open-frame packaging. The HBD family allows board designers to deliver any combination of power from either output, up to each model’s maximum rating. The HBD is available in 5V/3.3V combinations in a 48V input version. The HBD uses planar magnetics and has an MTBF of over a million hours.

Features

  • Independent dual outputs
  • Flexible load sharing
  • High efficiency topology
  • Open frame design
  • Planar magnetics
  • Independent trim for each output
  • 1500V isolation
  • 100°C baseplate operation

Specifications

  • Number of Outputs: 2
  • Output Voltages8: 5 V @ 8 A, and 3.3 V @ 12 A*
  • Input Voltage Range: 34 VDC to 75 VDC (48 VDC typical)
  • Input Current: 1.51 A (max.)
*NOTE: Current can be drawn from either output to its maximum value, or from both outputs to a combined total of 15A

Product Identification

Type:Isolated
Product Type:DC-DC Converter for Railway SMPS
Manufacturer Series:HBD

Compliance

Agency Approvals:UL, CUL, VDE

Dimensions & Appearance

Color:Black
Height:0.50 in.
Width:2.28 in.
Length:2.40 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Input

Input Voltage:48 VDC
Input Voltage Range:34 VDC to 75 VDC
Maximum Input Current:1.51 A

Output

Number of Outputs:2
Additional Output Voltages (VDC):3.3 VDC
Output Voltage:5 VDC
Output Connector Type:PC Pins
Output Current:8 A

Features

Pins:10
Efficiency:80%
Power Rating:60 W
,
