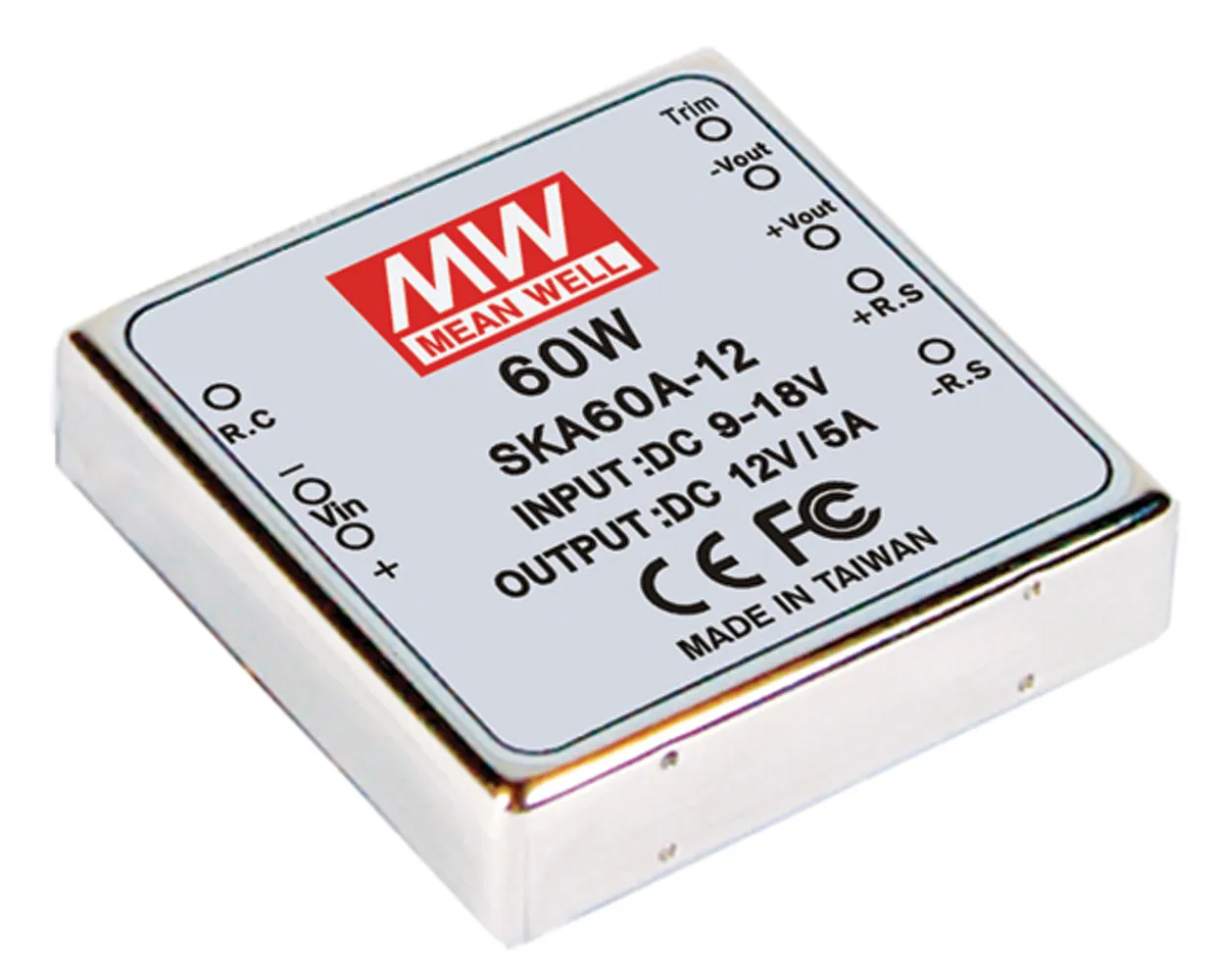

60 Watt DC-DC Regulated Single Output Converter

12 Volts @ 0.5-5 Amps

Features:

  • 2" 2" compact size
  • 2:1 wide input range
  • 92% efficiency
  • 1500VDC I/O isolation
  • Built-in remote ON / OFF control
  • Built-in remote sense
  • Trimming output 10%
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Product Identification

Product Type:DC to DC Regulated Single Output Converter SMPS
Manufacturer Series:SKA60

Dimensions & Appearance

Height:0.43 in.
Color:Silver
Width:2 in.
Length:2 in.
Mounting:Encapsulated

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Packaging

Package:Enclosed Module

Input

Input Voltage Range:9 VDC to 18 VDC
Maximum Input Current:5.445 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:5 A

Features

Pins:8
Efficiency:92%
Power Rating:60 W
,
