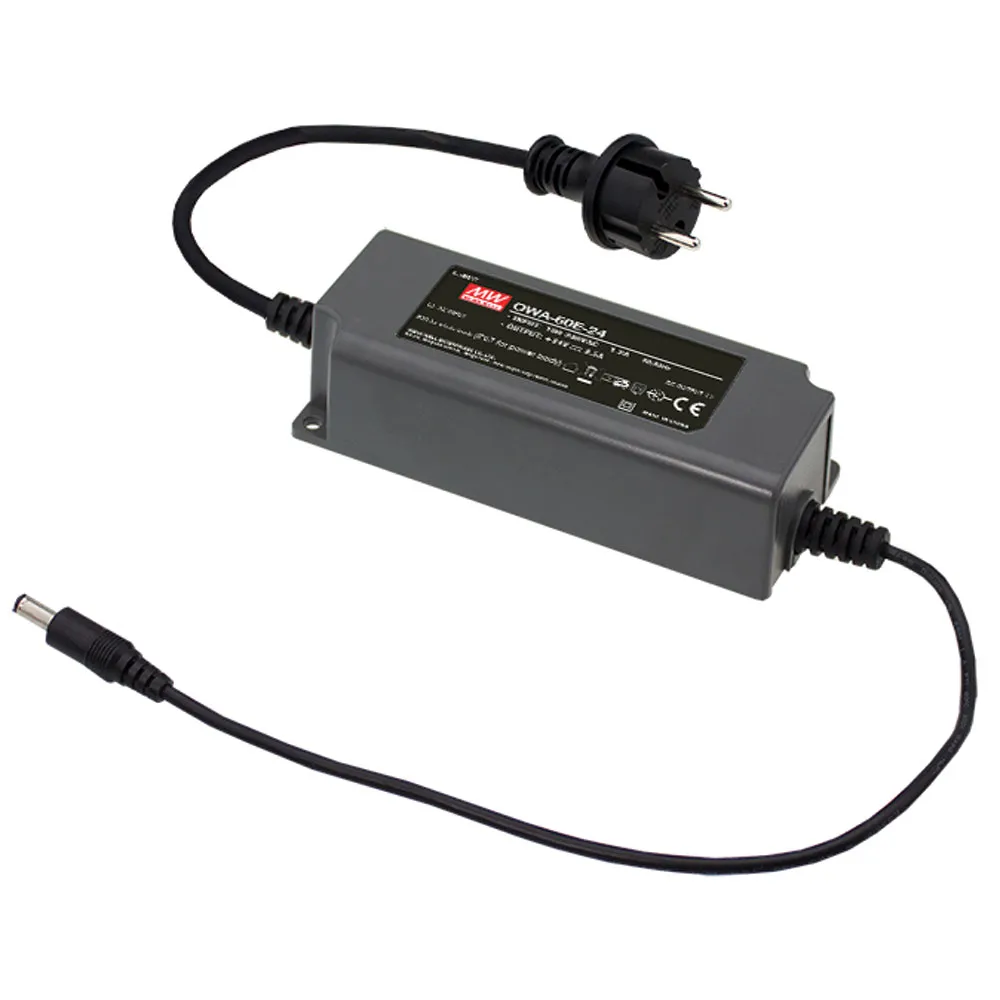

60 Watt 30 Volt 2 Amp Moisture-proof Power Supply with Euro Plug Input

30 Volts @ 2 Amps

Features

  • Universal AC input / Full range (90-264 VAC @ 47-63 Hz)
  • Input plug is 2-prong Euro type (CEE 7/7)
  • High efficiency up to 90%
  • No load power consumption <0.15W
  • Comply with EU ErP and CoC Version 5
  • Protections: Short circuit, Overload, Over voltage, Over temperature
  • Class II power unit, no FG
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • 5 years warranty

Specifications

  • Voltage output: 30 VDC
  • Current output: 2 A
  • Rated power: 60 W
  • Efficiency: 90%
  • Input cord length: 4.9 feet
  • Output connector: 2.1mm x 5.5mm center positive female barrel plug
  • Output cord length: 11.8"
  • Size: 5.1"L x 2.1"W x 1.4"H

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:OWA-60

Compliance

Agency Approvals: CE, EAC, EN, CB

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.38 in.
Width:2.09 in.
Length:5.12 in.

Operating conditions

Minimum Operating Temperature:-35°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):30 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):2 A
Output Voltage:30 VDC
Additional Output Voltages (VDC):N/A
Output Current:2 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3750V
Product Note:Level VI
AC Power Cord:Included
IP Rating:IP67
Efficiency:90%
Power Rating:60 W
,
