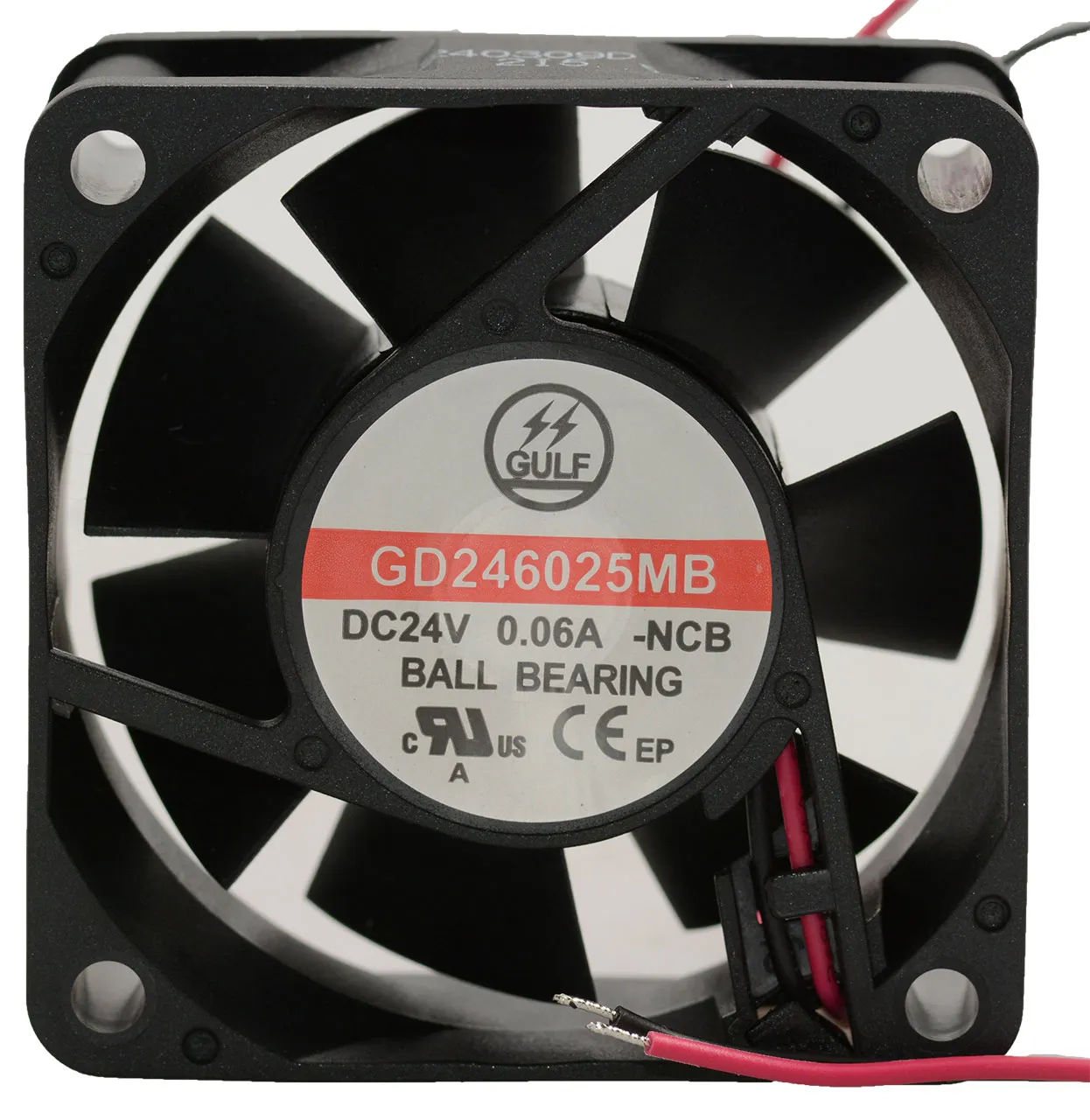

60 mm x 60 mm x 25 mm Tubeaxial Fan 24 VDC Brushless 12" Wires 18.9 CFM

Features

  • Voltage Rating: 24 VDC
  • Length: 60 mm
  • Width: 60 mm
  • Height: 25 mm
  • Air Flow (CFM): 18.9
  • Bearing: Dual Ball
  • Current Rating: 40 mA
  • Power Rating: 0.96 W
  • Agency Approvals: UL
  • Noise (dBA): 28
  • Connection (Leads): 12" Wires
  • Product Type: Fan

Product Identification

Product Type:DC Fan
Manufacturer Series:ValuePro

Compliance

Compliance:Compliance Docs
Agency Approvals:UL

Dimensions & Appearance

Depth:25 mm
Height:60 mm
Width:60 mm

Features

Bearing:Dual Ball
Maximum Pressure:0.129 in.
Noise (dBA):28
Motor Drive Type:Brushless DC
Power Rating:0.96 W
Speed:3400 rpm
Voltage Rating:24 VDC
Termination:12" Wires
Air Flow (CFM):18.9
Current Rating:40 mA
,
