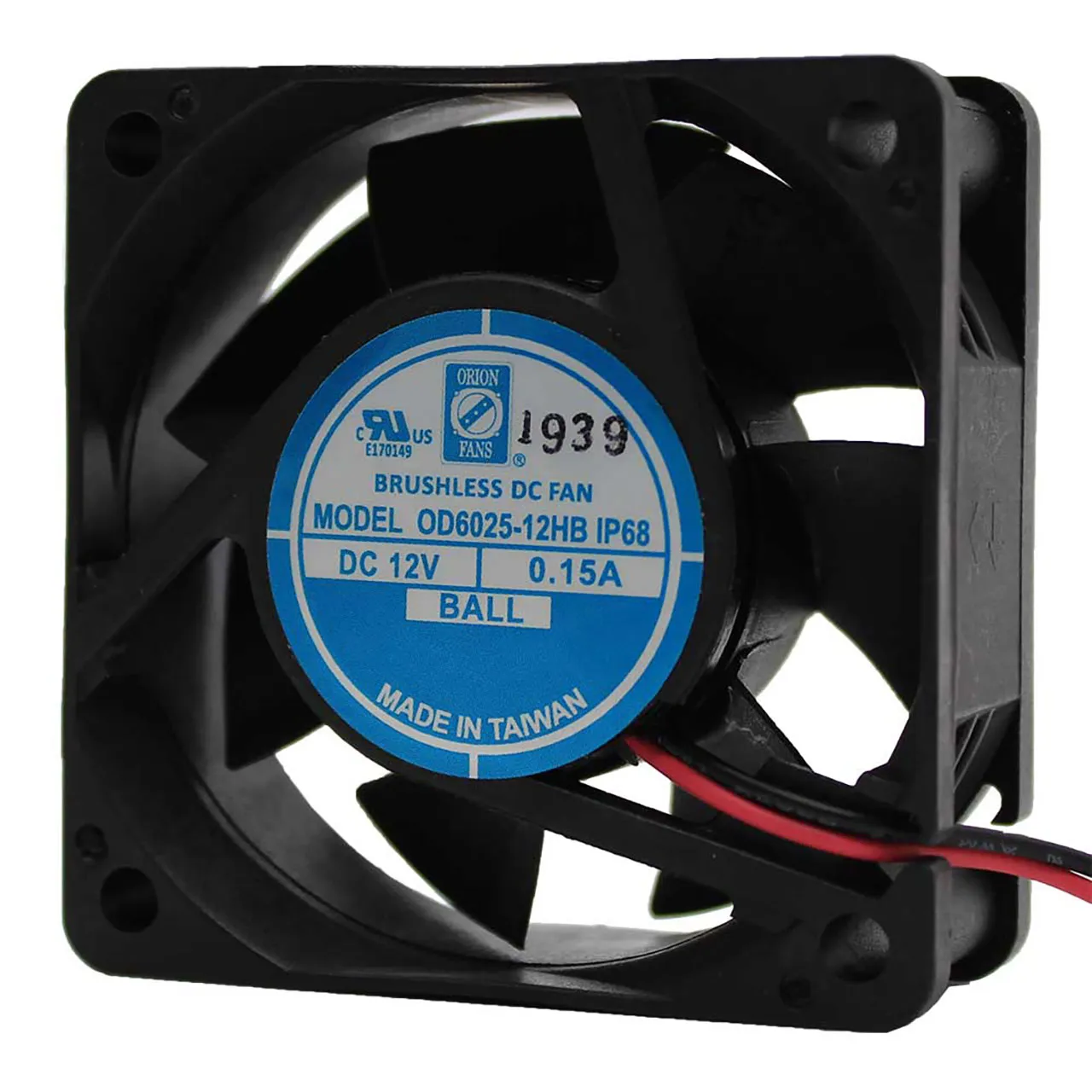

60 mm x 60 mm x 25 mm Tube Axial Fan 12 VDC Ball Bearing 25CFM 30dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 60 mm
  • Width: 60 mm
  • Depth: 25 mm
  • Air Flow (CFM): 25
  • Bearing: Ball
  • Current Rating: 150 mA
  • Power Rating: 1.8 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 30
  • Termination: 12" Wires
  • Product Type: 60mm x 60mm DC Fan
  • Speed: 3975 rpm
  • IP Rating: IP69K
  • Maximum Pressure: 0.22 in.
  • Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected, IP69K

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3975 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:25 mm
Height:60 mm
Width:60 mm

Features

Bearing:Ball
Motor Drive Type:Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected, IP69K
Noise (dBA):30
Air Flow (CFM):25
Maximum Pressure:0.22 in.
IP Rating:IP69K
Voltage Rating:12 VDC
Power Rating:1.8 W
Speed:3975 rpm
Termination:12" Wires
Current Rating:150 mA
,
