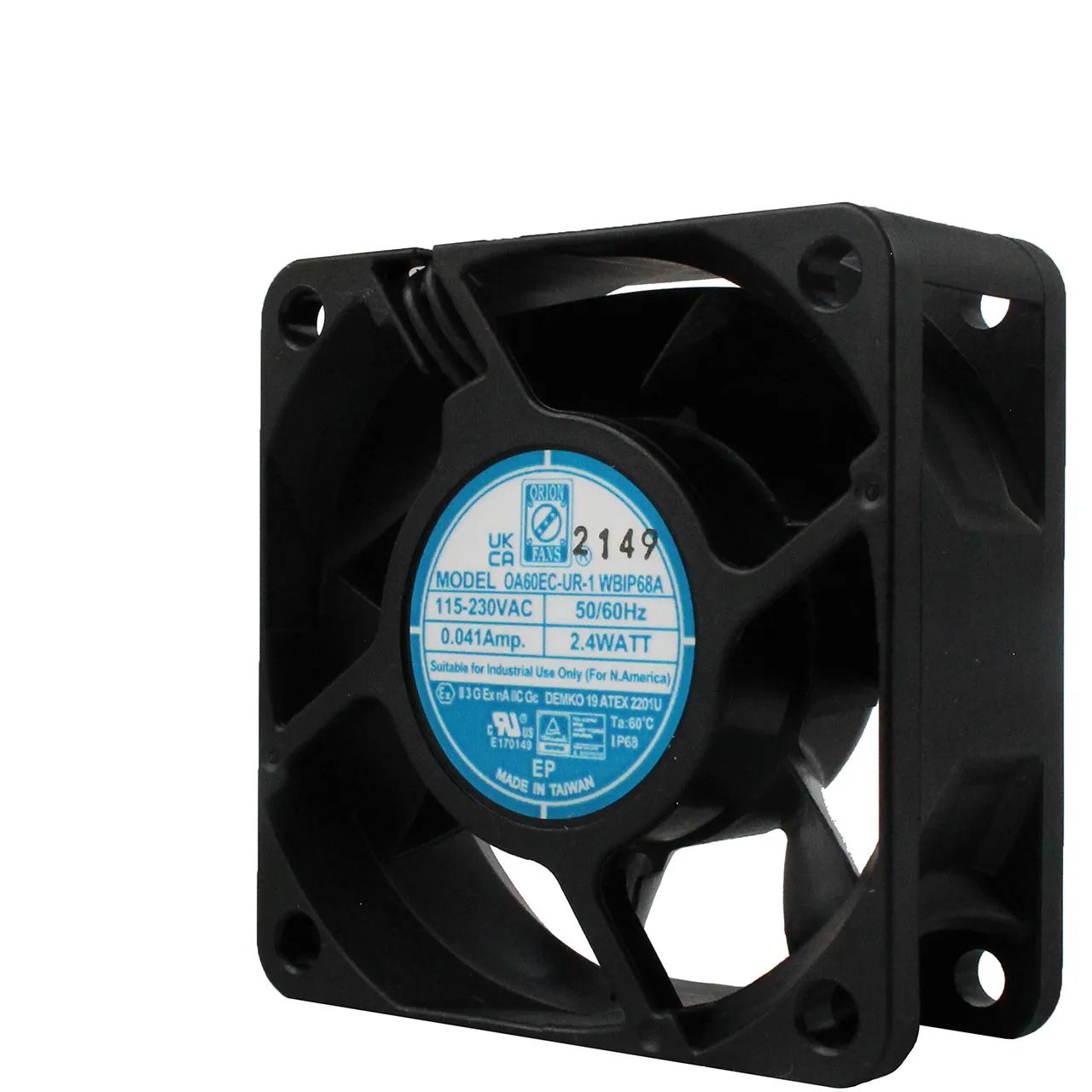

60 mm x 60 mm x 25 mm Tube Axial Fan 115/230 VAC Ball Bearing 19.5CFM 31dBA 12" Wires

Features

  • Voltage Rating: 115/230 VAC
  • Height: 60 mm
  • Width: 60 mm
  • Depth: 25 mm
  • Air Flow (CFM): 19.5
  • Bearing: Ball
  • Current Rating: 90 mA, 50 mA
  • Power Rating: 2.1 W, 2.4 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 31
  • Termination: 12" Wires
  • Product Type: 60mm x 60mm AC Fan
  • Speed: 3950 rpm
  • Maximum Pressure: 0.17 in.
  • Motor Drive Type: AC-DC Energy Saving, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3950 rpm.

Product Identification

Product Type:AC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:25 mm
Height:60 mm
Width:60 mm

Features

Bearing:Ball
Maximum Pressure:0.17 in.
Motor Drive Type:AC-DC Energy Saving, Electronically protected
Noise (dBA):31
Speed:3950 rpm
Power Rating:2.1 W, 2.4 W
Termination:12" Wires
Voltage Rating:115/230 VAC
Air Flow (CFM):19.5
Current Rating:90 mA, 50 mA
,
