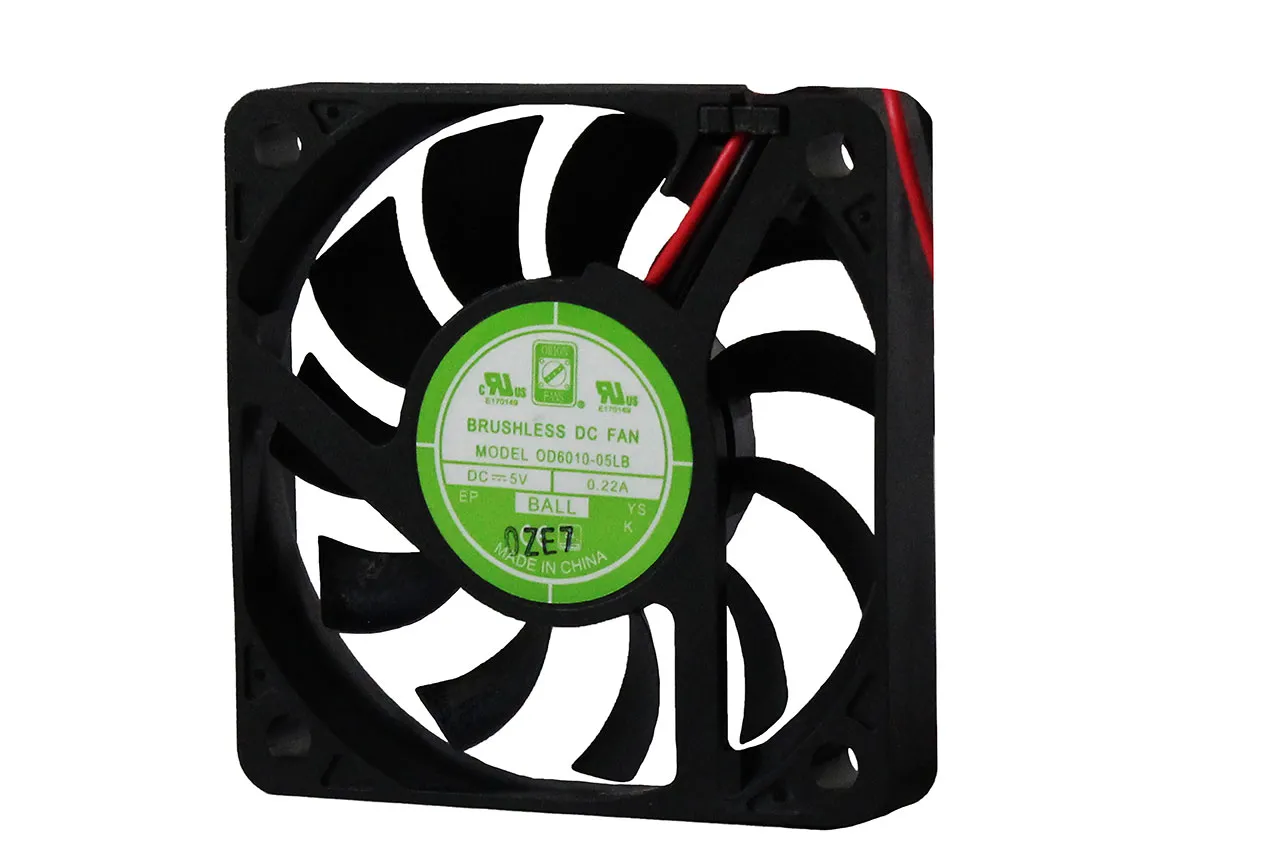

60 mm x 60 mm x 10.5 mm Tube Axial Fan 5 VDC Ball Bearing 14.3CFM 28.1dBA 12" Wires

Features

  • Voltage Rating: 5 VDC
  • Height: 60 mm
  • Width: 60 mm
  • Depth: 10.5 mm
  • Air Flow (CFM): 14.3
  • Bearing: Ball
  • Current Rating: 160 mA
  • Power Rating: 0.8 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 28.1
  • Termination: 12" Wires
  • Product Type: 60mm x 60mm DC Fan
  • Speed: 3500 rpm
  • Maximum Pressure: 0.08 in.
  • Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3500 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:10.5 mm
Height:60 mm
Width:60 mm

Features

Bearing:Ball
Maximum Pressure:0.08 in.
Voltage Rating:5 VDC
Motor Drive Type:Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Power Rating:0.8 W
Speed:3500 rpm
Noise (dBA):28.1
Air Flow (CFM):14.3
Termination:12" Wires
Current Rating:160 mA
,
