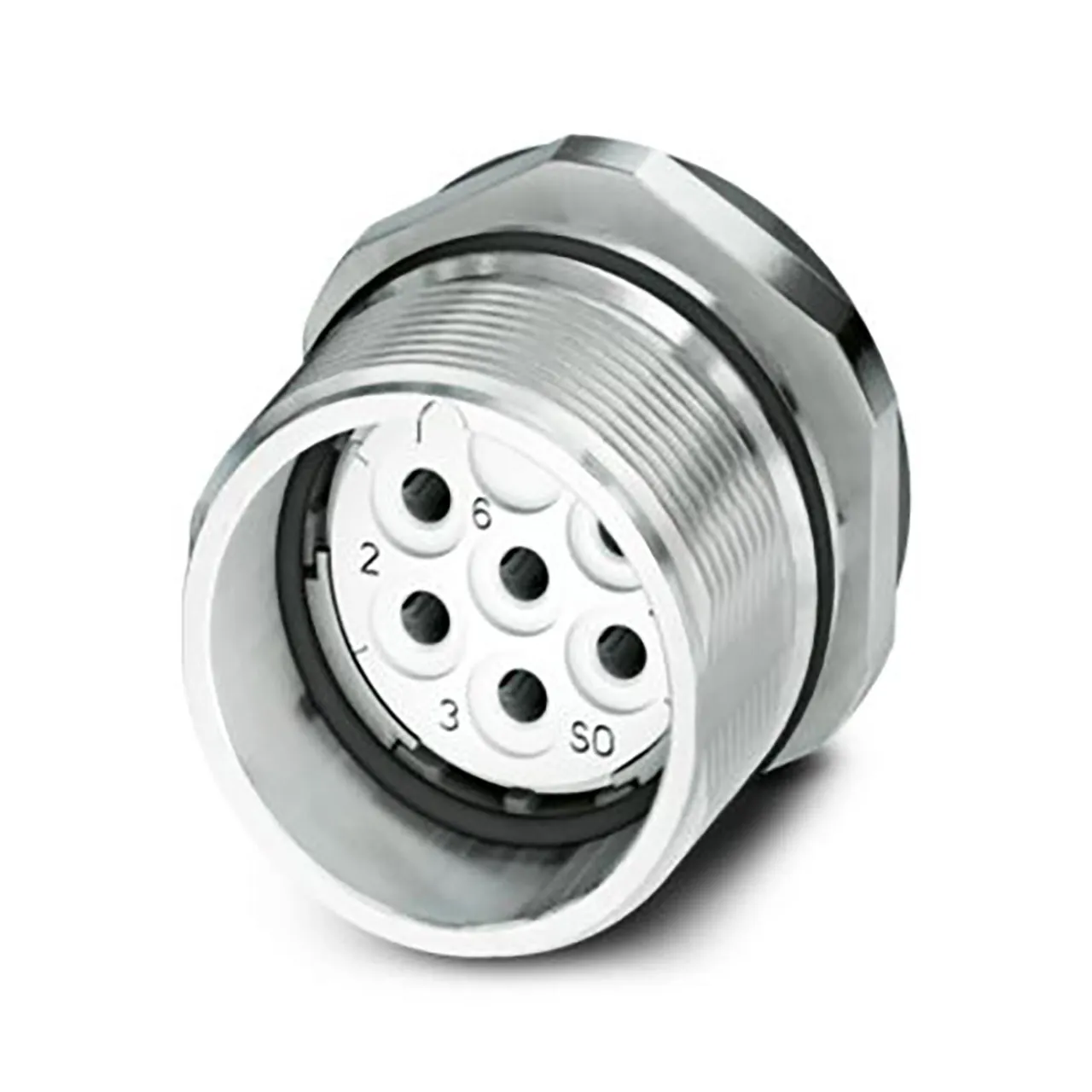

6 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup

Features

  • Series: CA
  • Connector Type: Receptacle, Female Sockets
  • Number of Positions: 6 (Power)
  • Shell Size - Insert: M23-6
  • Mounting Type: Panel Mount
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Termination: Solder Cup
  • Fastening Type: Push-Twist
  • Orientation: N (Normal)
  • Primary Material: Metal
  • Shell Material: Gadolinium-Zinc
  • Contact Finish - Mating: Gold
  • Color: Silver
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Shielding: Shielded
  • Operating Temperature: -40°C to 125°C
  • Contact Material: Copper Zinc
  • Insert Material: Polybutylene Terephthalate (PBT)

,
