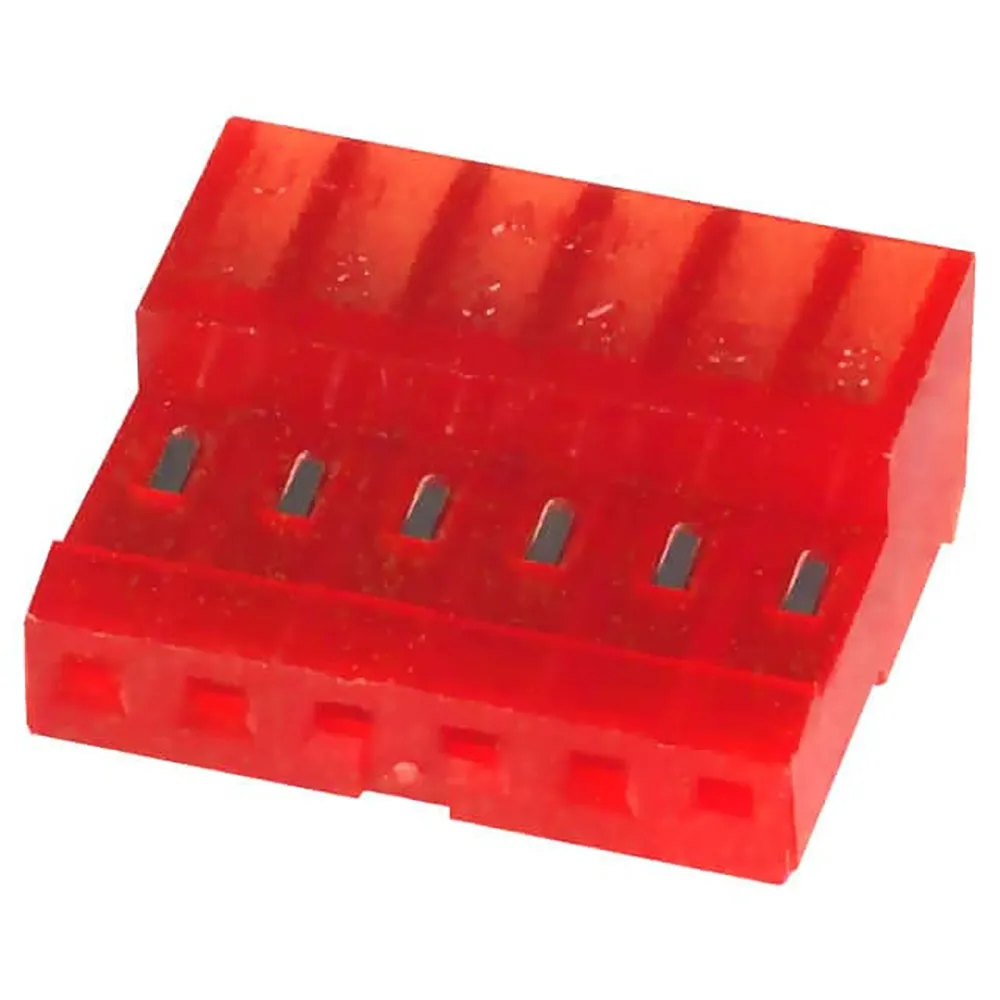

6 Position Female Socket Receptacle Closed End 0.100" (2.54mm) Free-Hanging IDC Tin

Specifications

  • Series: MTA-100
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Pitch - Mating: 0.1" (2.54 mm)
  • Number of Positions: 6
  • Number of Rows: 1
  • Row Spacing: n/a
  • Number of Positions Loaded: All
  • Mounting Type: Free Hanging (In-Line), Right Angle
  • Cable Termination: IDC
  • Fastening Type: Locking Ramp
  • Wire Type: Discrete or Ribbon Cable
  • Wire Gauge: 22 AWG
  • Features: Closed End
  • Contact Finish: Tin
  • Contact Finish Thickness: 80 µin (2.03 µm)
  • Color: Red
  • Base Number: 640440

Product Identification

Additional Feature:Closed End
Manufacturer Series:MTA-100
Product Type:Receptacle

Dimensions & Appearance

Body Orientation:Straight
Style:Discrete or Ribbon Cable
Mounting:Free Hanging

Features

Number of Rows:1
Number of Contacts:6
Termination Method:IDC
Fastening Method:Locking Ramp
Gender:Female Socket
Pitch:2.54 mm, 0.100 in.
,
