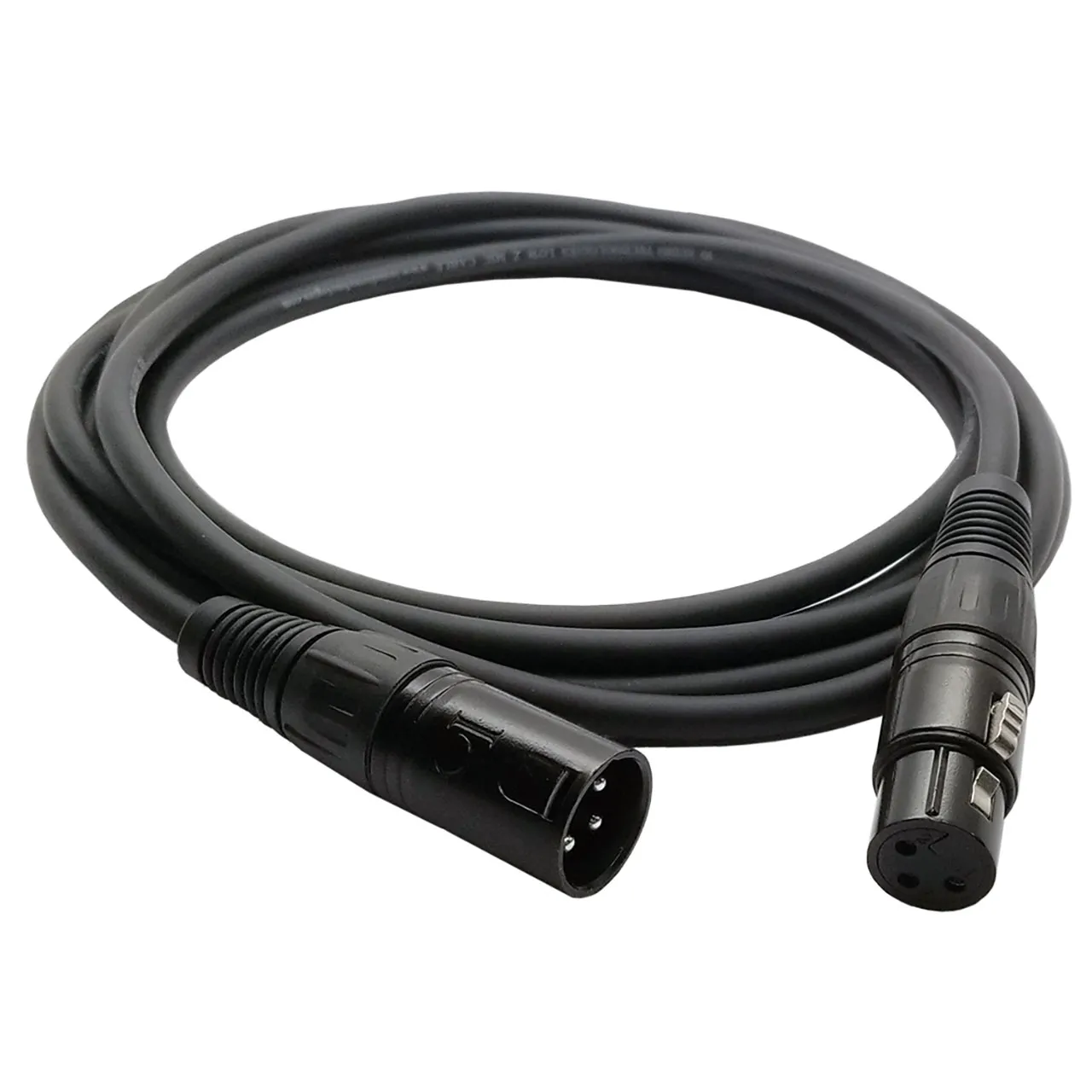

6 Foot Professional Grade XLR Cable

Features

• Length (Feet): 6
• Capacitance Between Conductors: ≦ 15.4pF/ft
• Capacitance Between Conductors and Shield: ≦ 27.6pF/ft
• Conductor DC Resistance: 0.062 ohm/m +/- 1%
• Shield DC Resistance: 0.021 ohm/m +/- 1%
• Voltage Breakdown: 300V
• Insulation: XLPE
• Shield: Braided 16*9/0.10 TC OFC
• Jacket: PVC
• Conductors: 60/0.08mm BC OFC

Overview

This cable is an excellent choice for production companies working in environments where a more robust shielding option is needed.

The Professional Series XLR cable is made using two stranded, 23 AWG, OFC conductors in a tight-pitch twisted pair configuration. The use of XLPE insulation helps reduce the capacitance while the braided tinned copper shield provides excellent EMI and noise rejection. Between the conductors and shield is a conductive yarn designed to increase the flexibility of the cable. To top it all off, the sturdy PVC jacket is there to take the abuse of any environment.

The IO-XLR3-M-BK and IO-XLR3-F-BK connectors feature durable die cast zinc shells with built in latch locks which provide a reliable connection when mated with the opposite gender. They also feature a sturdy plastic insert that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support from excessive bending. The silver plated contacts ensure a great signal every time.
