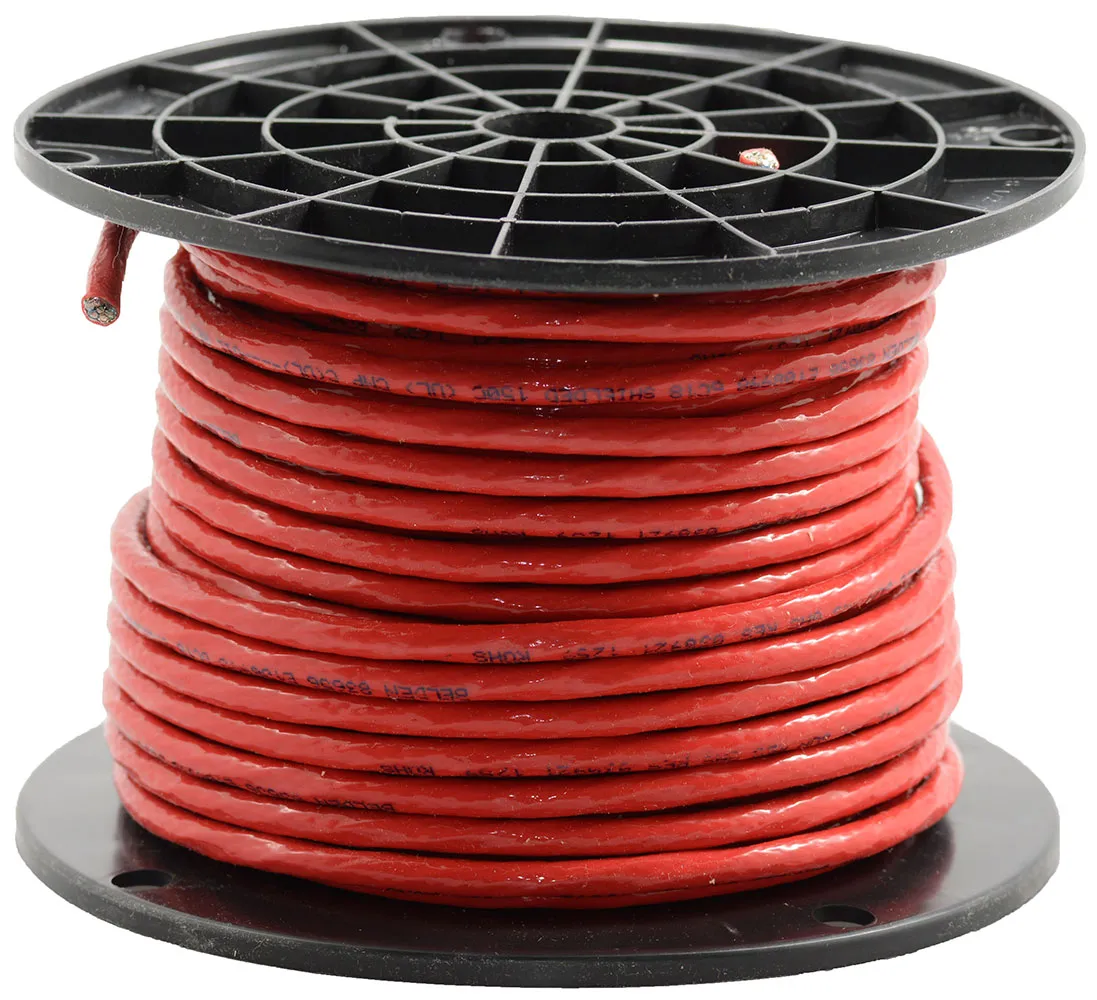

6 Conductor Multi-Conductor High Temperature Electronic Cable Red Jacket 18 AWG Foil Braid Shielding 100 Feet

Specifications

  • Cable Type: Multi-Conductor
  • Number of Conductors: 6
  • Wire Gauge: 18 AWG
  • Conductor Strand: 19/30
  • Conductor Material: Copper, Tinned
  • Conductor Insulation: Fluorinated Ethylene-Propylene (FEP)
  • Shield Type: Foil, Braid
  • Shield Material: Aluminum; Copper, Tinned
  • Shield Coverage: 100%, 85%
  • Jacket Color: Red
  • Jacket (Insulation) Thickness: 0.014" (0.356 mm)
  • Jacket (Insulation) Material: Fluorinated Ethylene-Propylene (FEP), Plenum
  • Jacket (Insulation) Diameter: 0.228" (5.79 mm)
  • Voltage: 300 V
  • Ratings: UL Style CMP
  • Length: 100' (30.5 m)
  • Operating Temperature: -70°C to 200°C

Applications

  • Extreme high/low temperature environments
  • Chemical resistant
  • Outdoor and burial applications
  • Low voltage analog signals (4mA to 20mA, 0V to 10V, and more)
  • Low voltage control (24V, etc.)
  • Line level audio
  • Voice communications
  • Panel wiring

Product Identification

Product Type:High Temp, Audio, Control, Instrumentation Cable

Dimensions & Appearance

Color:Red
Length:100 ft.

Features

Number of Conductors:6
Conductor Strand:19 x 30
Shielding:Yes
Material:FEP, Plenum
Wire Gauge (AWG):18
,
