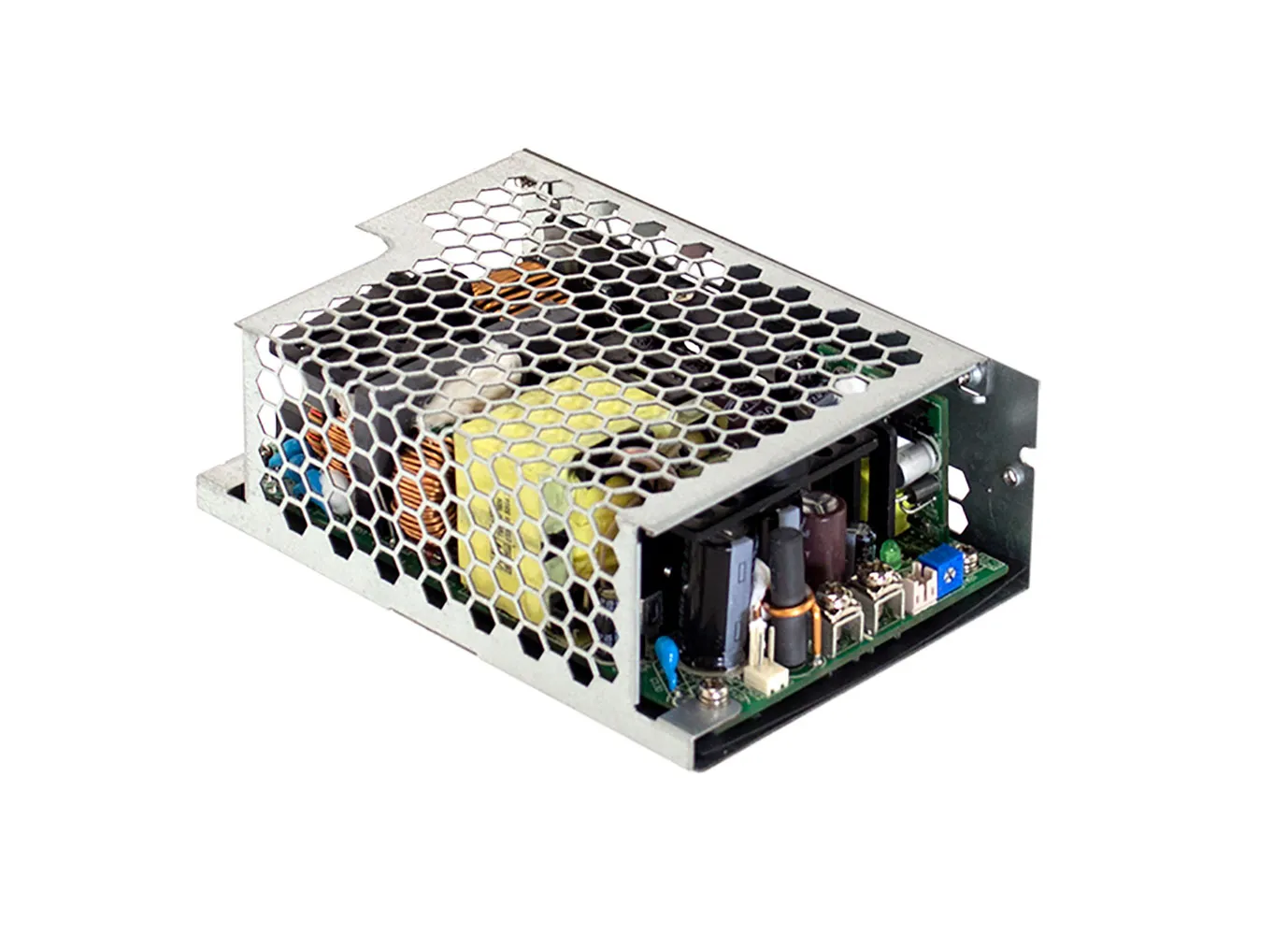

5x3" Reliable Green Medical Enclosed Power Supply 24V 12.9A 309W Convection
24 Volts DC @ 12.9 Amps (convection); 20.8 Amps (if 25 CFM fan)Features
- 5" x 3" compact size
- 309 Watt convection, 499 Watt forced air
- Input voltage range: 80 to 264 VAC @ 47 to 63 Hz
- 550W peak power (3 sec.)
- Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- EMI for both Class I and Class II configuration
- -30°C to +70°C wide range operating temperature
- No load power consumption <0.5W by PS_ON control
- High efficiency up to 93%
- Protections: Short circuit, overload, over voltage over temperature
- 5 VDC standby output, 12 VDC fan supply, Power Good, Power Fail and remote sense
- Operating altitude up to 4000 meters
- LED indicator for power on
- 3 year warranty
Applications
- Oral irrigator
- Hemodialysis machine
- Medical computer monitors
- Sleep apnea devices
- Pump machine
- Electric bed
Product Identification
Product Type:Medical Switching SMPS
Manufacturer Series:RPS-500
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Enclosed
Color:Silver
Height:1.69 in.
Width:3.39 in.
Length:5.11 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:5.8 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current:12.90 A
Features
PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:93%
Power Rating:309.6 W
