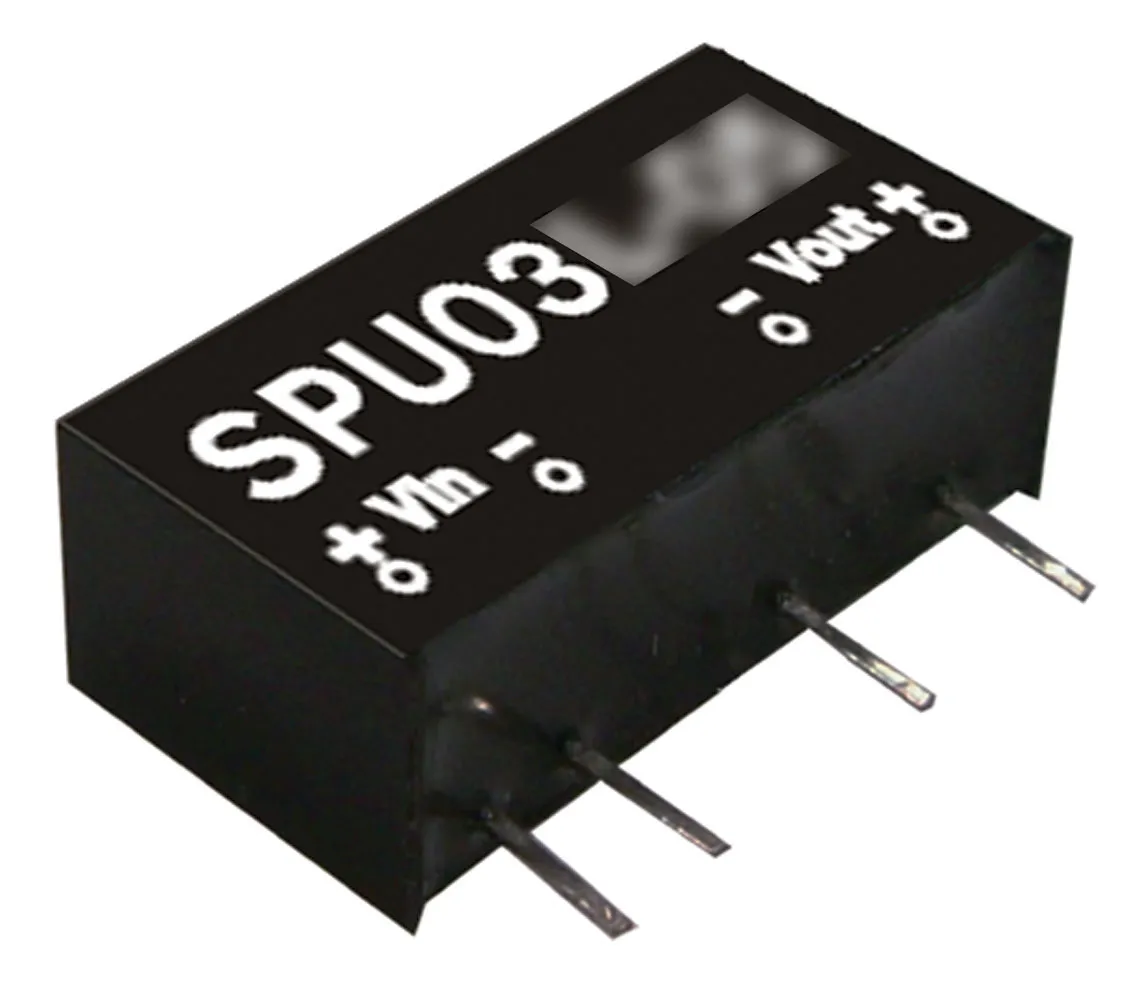

3 Watt DC-DC Unregulated Single Output Converter

5 Volts @ 60-600 mAmps

Features:

  • 3000VDC I/O isolation
  • Internal SMD technology
  • Built-in EMI filter
  • Protection: Short circuit
  • Cooling by free air convection
  • Non-conductive plastic case
  • Single in line package
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 years warranty

Product Identification

Product Type:DC to DC Regulated Single Output Converter SMPS
Manufacturer Series:SPU03

Dimensions & Appearance

Height:0.4 in.
Width:0.3 in.
Length:0.77 in.

Packaging

Package:SIP Module

Input

Input Voltage Range:21.6 VDC to 26.4 VDC

Output

Number of Outputs:1
Output Connector Type:SIP-4
Output Voltage:5 VDC
Output Current:0.60 A
Additional Output Voltages (VDC):N/A

Features

Pins:4
Power Rating:3 W
,
