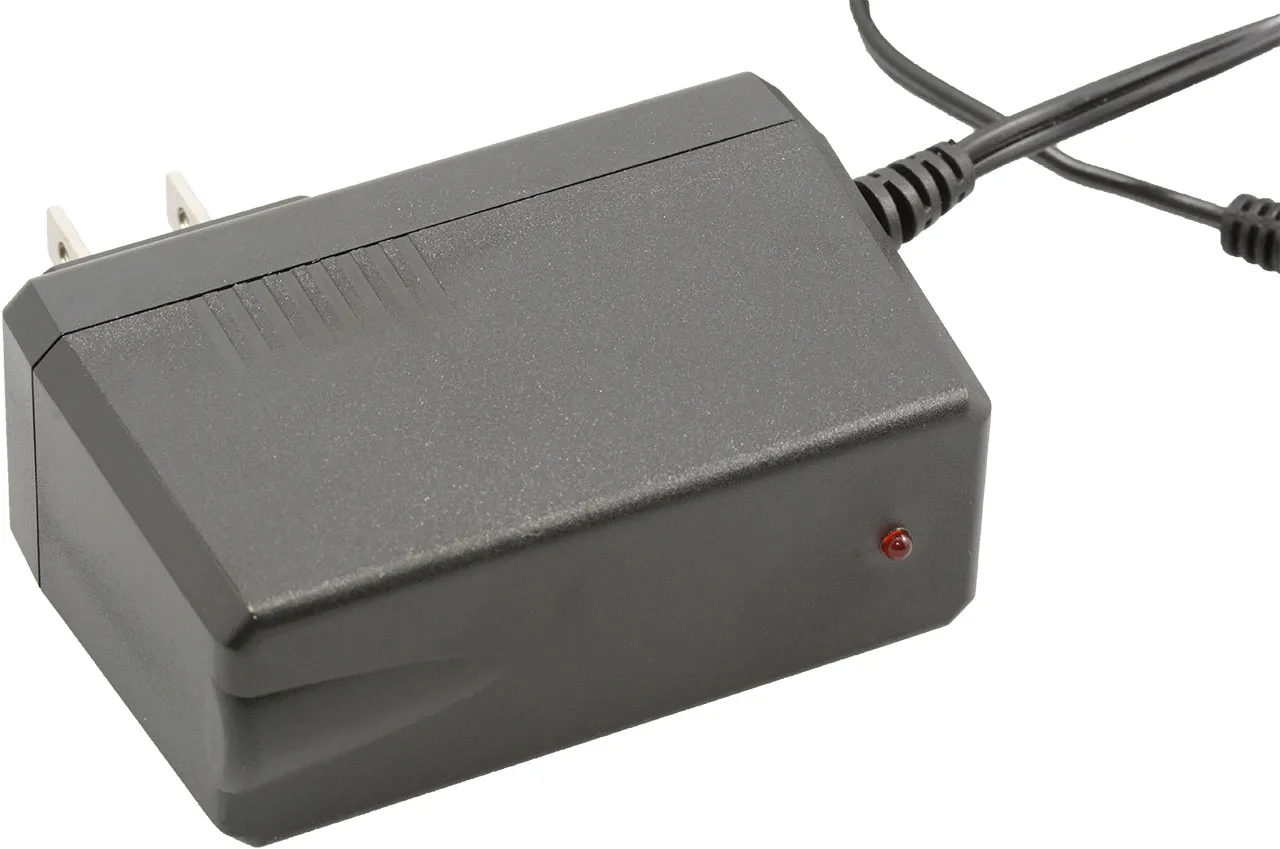

5VDC 4 A Switching Wall Adapter Power Supply

Output: 5 Volts @ 4 Amps

Features

  • Input: 100-240 VAC @ 50-60 Hz; 0.6 A
  • Output connector: 2.1mm x 5.5mm female center positive plug
  • Length of cord: 6 feet
  • Slimline package
  • LED indicator for power ON
  • Size: 3.0"W x 1.25"H x 1.78"D
  • Weight: 0.3 lbs.
  • Agency approvals: UL/CUL/CEC

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:N/A

Compliance

Agency Approvals: CE, CUL, UL

Dimensions & Appearance

Color:Black
Style:Slimline Wall Mount
Depth:1.8 in.
Height:1.3 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Packaging

Packaging:Carton

Input

Input Connector:NEMA 1-15P
Input Frequency:50 Hz to 60 Hz
Input Voltage:100 VAC to 240 VAC
Maximum Input Current:0.6 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Cord Length:6 ft.
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Output Current:4 A

Features

Polarity:Center Positive
Product Note: LED Indicator, Level IV
AC Power Cord:N/A
Power Rating:20 W
,
