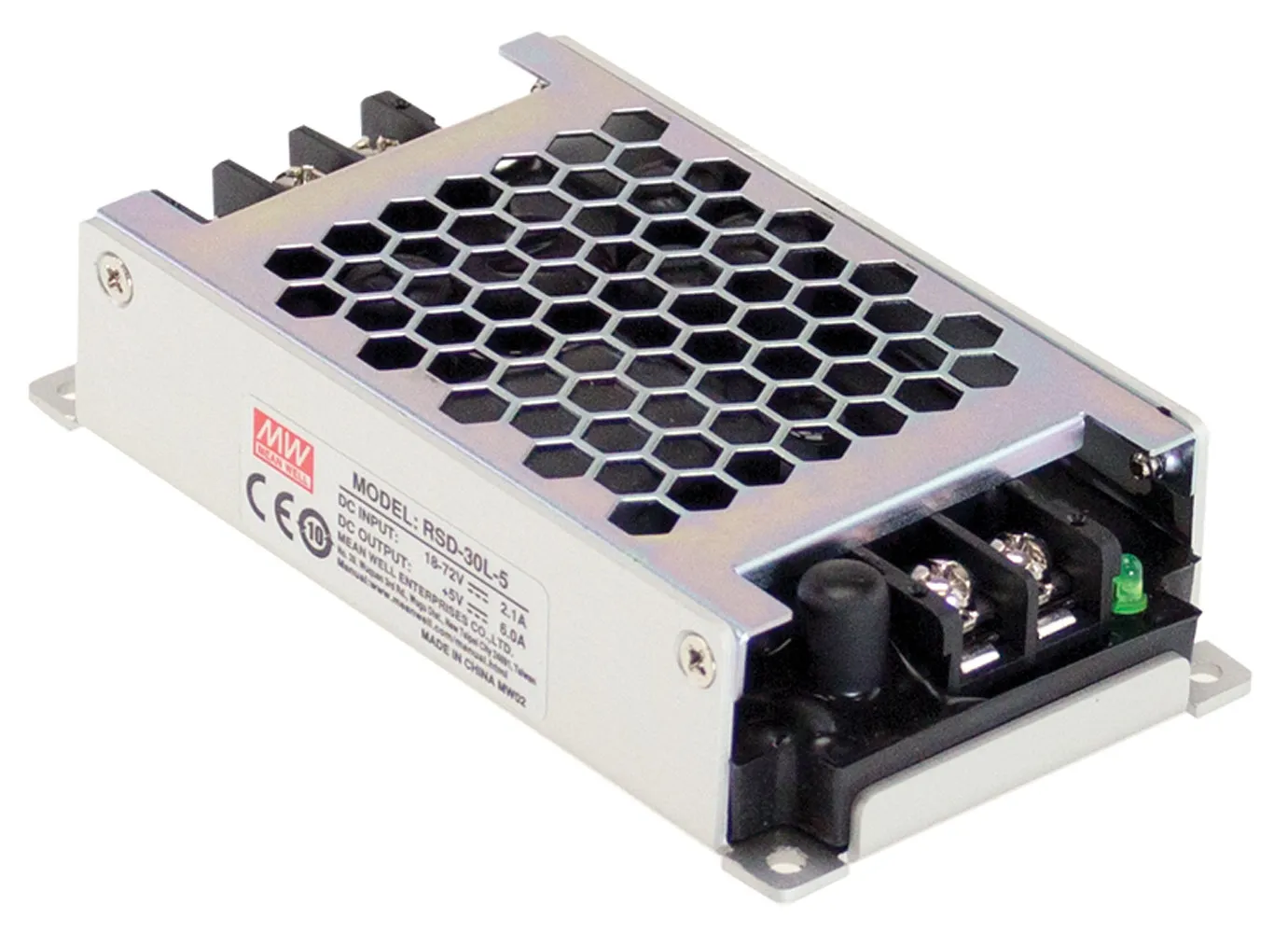

5V 6A 30W Reliable Railway Enclosed DC-DC Converter 40-160 Vin
5 Volts DC @ 6 AmpsFeatures
- Compliance to EN50155 and EN45545-2 railway standard
- Ultra compact and 1U low profile (25mm)
- 4:1 wide input range
- No minimum load required
- Protections: Short circuit, overload, over voltage, input reverse polarity
- 4000 VDC I/O isolation
- Half encapsulated, cooling by free air convection
- -40 to +70°C wide working temperature
- Built-in constant current limiting circuit
- LED indicator for power on
- Screw terminals
- 3 year warranty
Specifications
- Output voltage: 5 VDC
- Output current: 6 Amps
- Rated power: 30 Watts
- Input voltage range: 40 to 160 VDC
- Efficiency: 89%
- Line regulation: 0.5%
- Load regulation: 0.5%
- Ripple & noise: 70 mVp-p
- Size: 4.45"L x 2.36"W x 0.98"H
- Agency approvals: CE
Applications
- Bus, tram, metro or railway systems
- Highly vibrating, highly dusty, extremely low or high temperature harsh environment
- Wireless network
- Telecom or Datacom system
- Industry control system
Product Identification
Product Type:Isolated Railway DC to DC Converter SMPS
Manufacturer Series:RSD-30
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC
Dimensions & Appearance
Color:Silver
Height:0.98 in.
Width:2.36 in.
Length:4.45 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C
Packaging
Package:Railway Enclosed
Input
Input Voltage Range:40 VDC to 160 VDC
Maximum Input Current:0.35 A
Input Voltage:110 VDC
Output
Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:6 A
Features
Efficiency:89%
Power Rating:30 W
