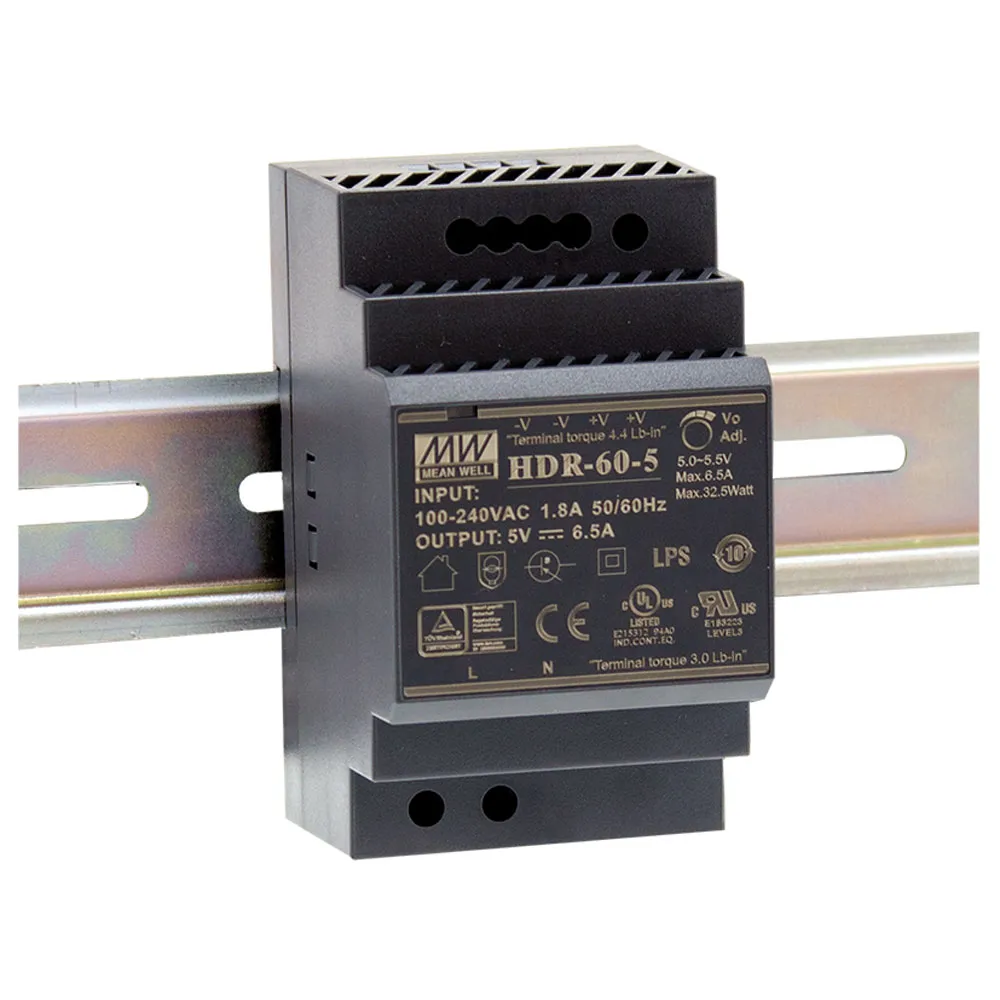

5V 6.5A 32.5W Ultra Slim Step-Shape DIN Rail Power Supply

5 Volts @ 6.5 Amps

Features

  • Ultra slim design with 52.5mm (3SU) width
  • Universal input 85-264 VAC
  • No load power consumption <0.3W
  • Isolation class II
  • Pass LPS (limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit, overload, over voltage
  • Cooling by free air convection (working temperature: -30 to +70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
  • 3 years warranty
  • Agency approvals: UL, CUL, CULUS, TUV, CB, CE

Applications

  • Household control system
  • Building automation
  • Industrial control system
  • Factory automation
  • Electro-mechanical apparatus

Overview

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:HDR-60

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Color:Black
Depth:2.07 in.
Height:2.15 in.
Width:3.54 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:6.50 A

Features

PFC Function:No
Low Power Source (LPS):Yes
Efficiency:85%
Power Rating:32.5 W
,
