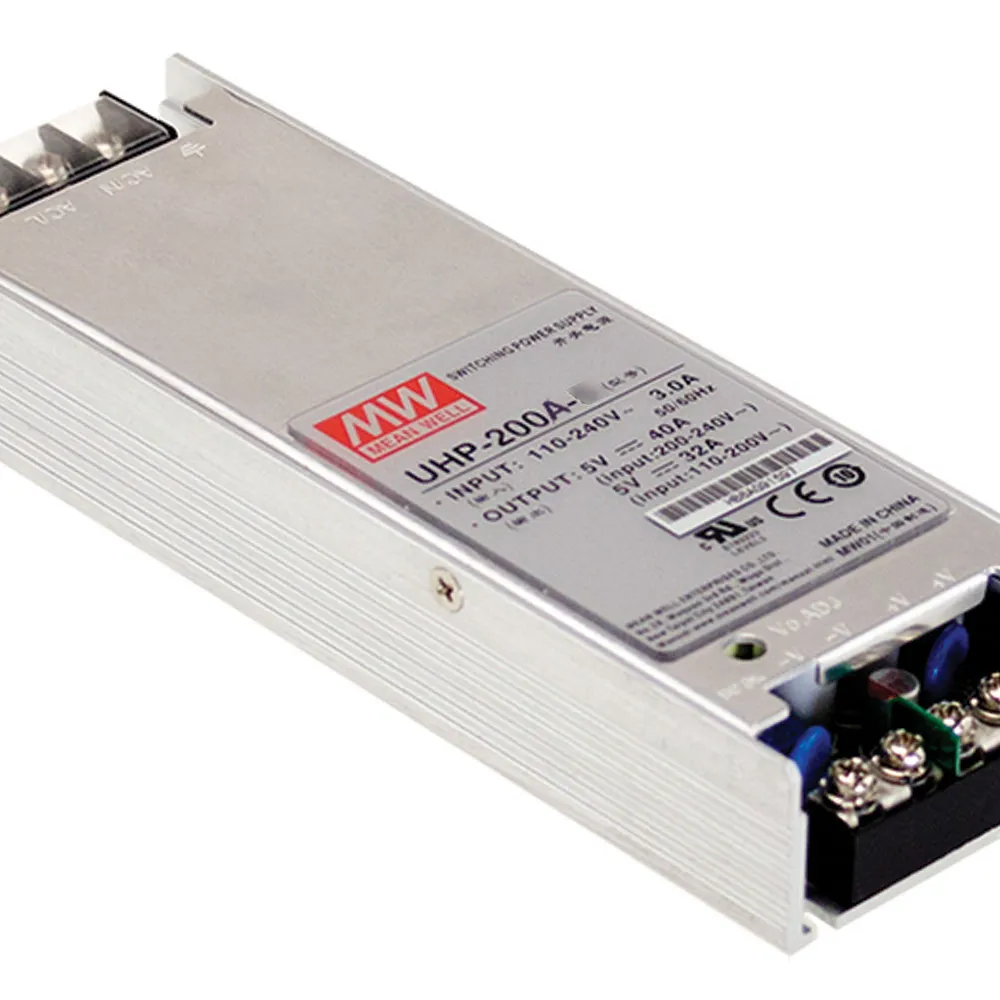

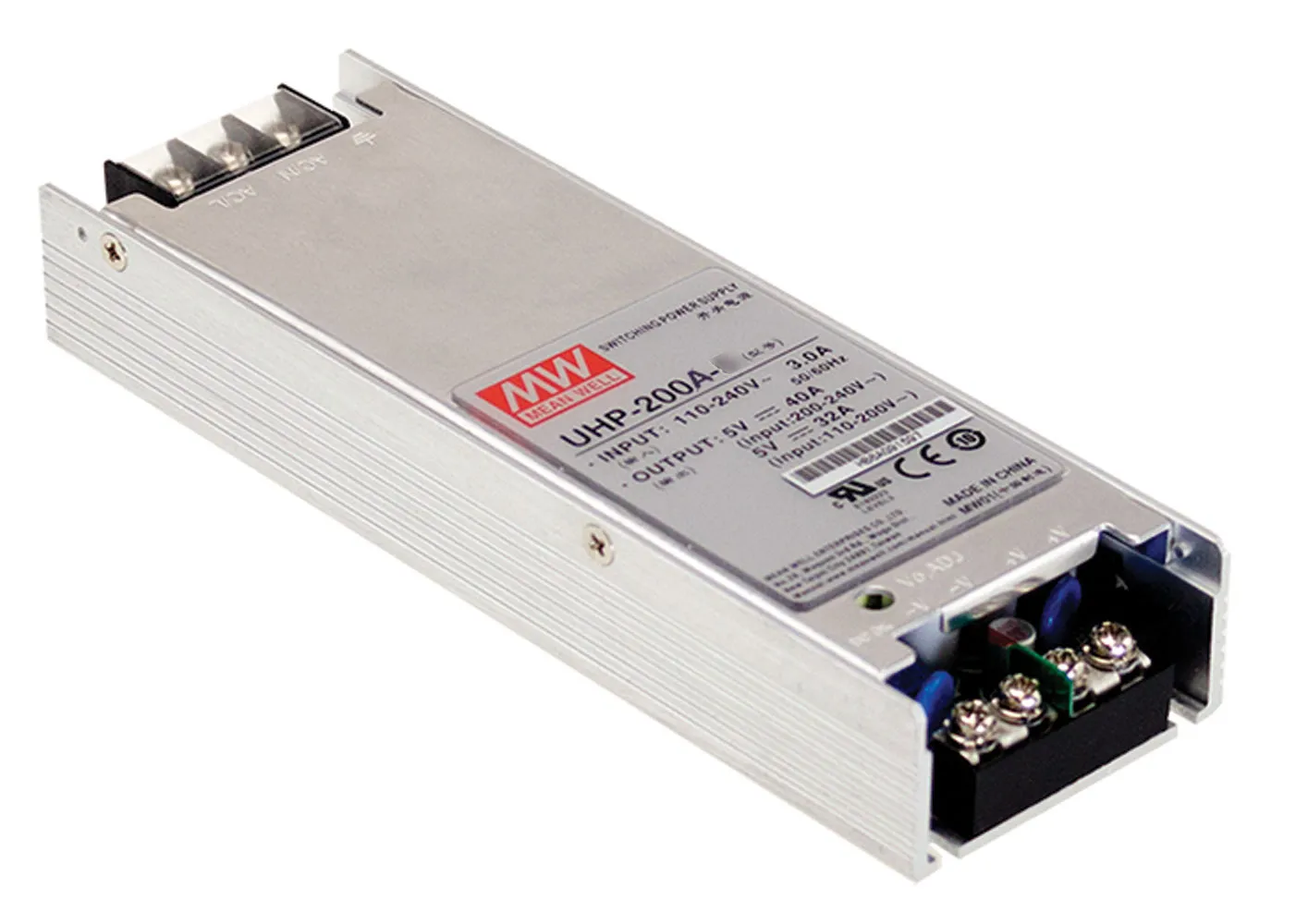

5V 40A 200W Low Profile LED Power Supply with PFC Function

5 Volts DC @ 40 Amps (Rated Power (convection): 200W)Find out more about MEAN WELL Mini/Micro LED display power solutions and the low-profile, miniaturized conduction cooling power supply family.

Features

  • Universal AC input/Full range
  • Withstand 300VAC surge input for 5 seconds
  • Low profile: 26mm
  • Built-in active PFC function
  • Fanless design, cooling by free air convection
  • Protections: Short circuit, Overload, Over voltage, Over temperature
  • Low leakage current <1 mA
  • LED indicator for power on
  • 3 year warranty

Specifications

  • Input voltage: 90 to 264 VAC @ 47-63 Hz
  • Size: 6.57" x 2.17" x 1.02"
  • Certification: UL, CUL, TUV, CCC, CB, CE

Applications

  • LED signage display
  • Moving sign
  • LED channel letter
  • LED TV wall

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:UHP-200

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL, IEC/EN 61558-1

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.02 in.
Width:2.17 in.
Length:6.57 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:1
Output Voltage (Channel 1):5 VDC
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):40 A
Output Current:40 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:88.5%
Power Rating:200 W
,
