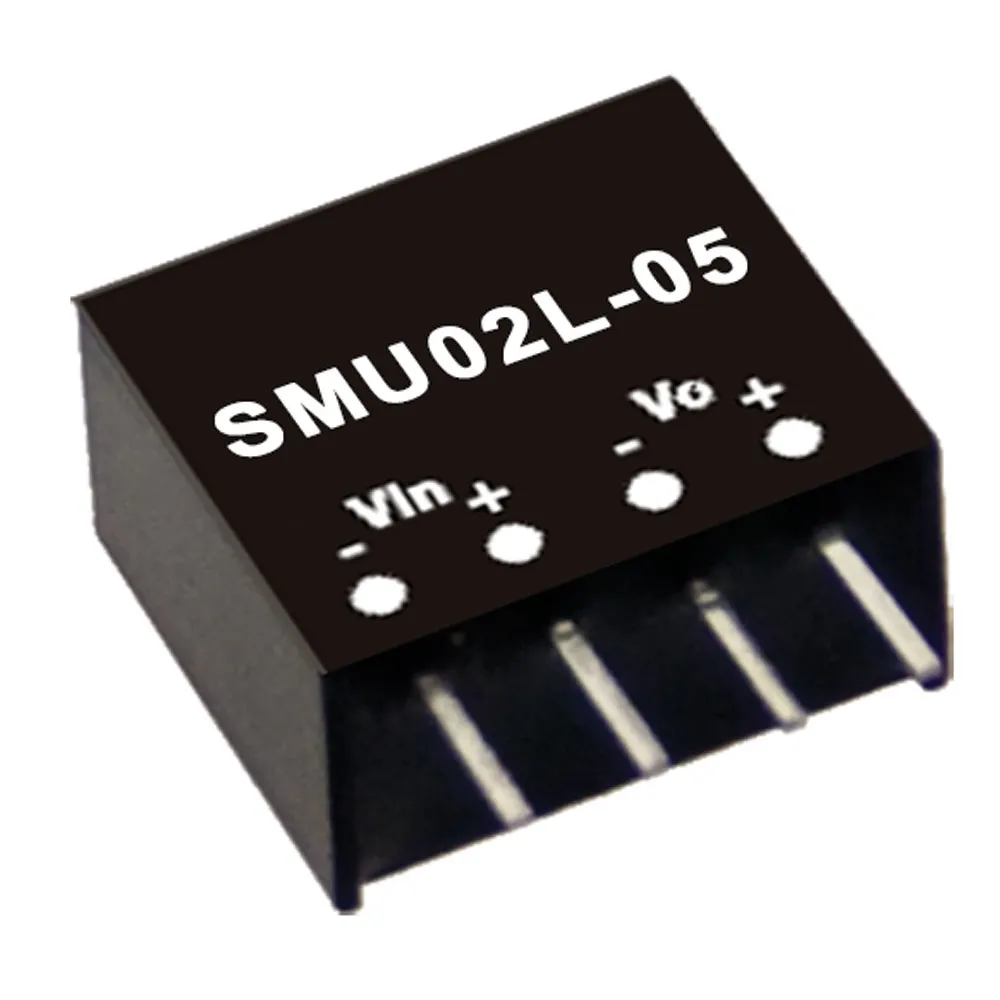

5V 400mA 2W Unregulated Encapsulated DC-DC Converter 12V Input

5 Volts DC @ 80-400 mA

Specifications

  • Input voltage range: 10.8 to 13.2 V
  • Output current range: 80 mA to 400 mA
  • Size: 0.46" x 0.3" x 0.4"
  • Pins: 4
  • SIP package
  • Line regulation: ±1.2% for 1% input variation
  • Load regulation: ±8.0%
  • Ripple & noise: 50 mVp-p
  • Industry standard pinout
  • 1500 VDC I/O isolation
  • Built-in EMI filter without external components
  • Cooling by free air convection
  • Non-conductive plastic case
  • 100% burn-in test
  • Low cost / high reliability
  • 2 year warranty

Product Identification

Product Type:DC-DC Unregulated Single Output Converter SMPS
Manufacturer Series:SMU02

Dimensions & Appearance

Height:0.40 in.
Length:0.46 in.
Width:0.30 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage:12 VDC
Input Voltage Range:10.8 VDC to 13.2 VDC
Maximum Input Current:0.21 A

Output

Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:PC Pins
Output Current:0.40 A
Additional Output Voltages (VDC):N/A

Features

Pins:4
Efficiency:82%
Power Rating:2 W
,
