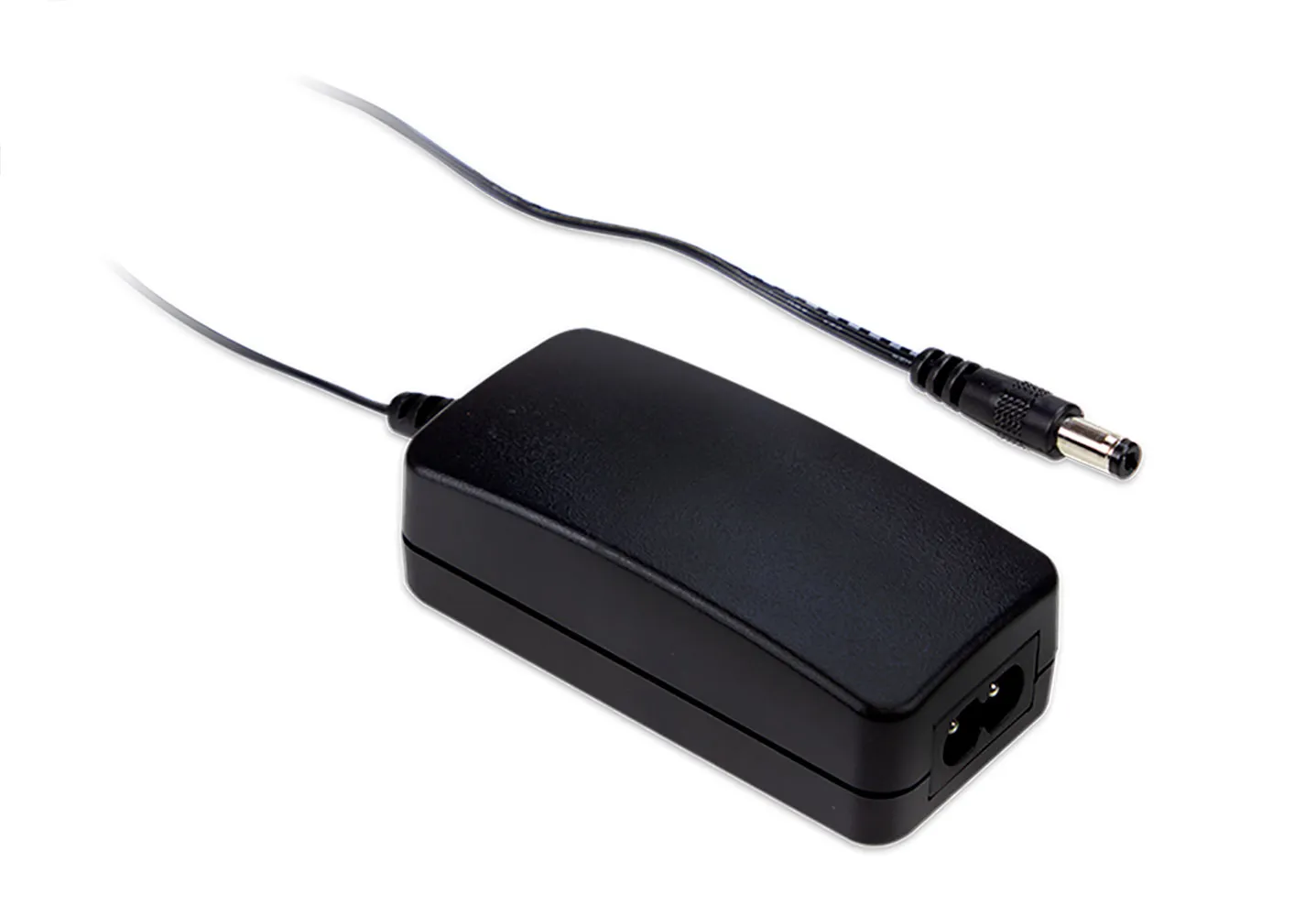

5V 2.4A 12W High Reliability Compact Desktop Industrial Adapter (C8 inlet) 2.1mm Plug

Features

  • Extremely small
  • Universal AC input / full range
  • 2-pole AC inlet IEC320-C8, Class II power unit
  • No load power consumption <0.075 W
  • Energy efficiency Level VI
  • Complies with EISA2007/DoE, EU ErP and meets CoC Version 5
  • Protections: Short circuit, overload, over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • 3 year warranty

Specifications

  • Output Voltage: 5 VDC
  • Rated Current: 2.4 A
  • Rated Power: 12 W
  • Output Connector: 2.1mm x 5.5mm x 11 mm (ID x OD x L), center positive female barrel plug
  • Output Cord Length: 4 feet
  • Input Voltage: 90 VAC to 264 VAC @ 47 Hz to 63 Hz; 0.4 A
  • Efficiency: 79%
  • Size: 3.15"L x 1.54"W x 1.09"H
  • Agency Approvals: UL, CUL, TUV, CB, CE, FCC, UKCA, EN, EAC
  • AC input cord is not included. We recommend a 2-conductor C7 USA AC power cord or equivalent.

Applications

  • Consumer electronic devices
  • Telecommunications devices
  • Office facilities
  • Industrial equipment

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:SGAS15B

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, FCC, TUV, UKCA, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.09 in.
Width:1.54 in.
Length:3.15 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.4 A

Output

Number of Outputs:1
Output Voltage (Channel 1):5 VDC
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):2.4 A
Additional Output Voltages (VDC):N/A
Output Current:2.4 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3000V
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:79%
Power Rating:12 W
,
