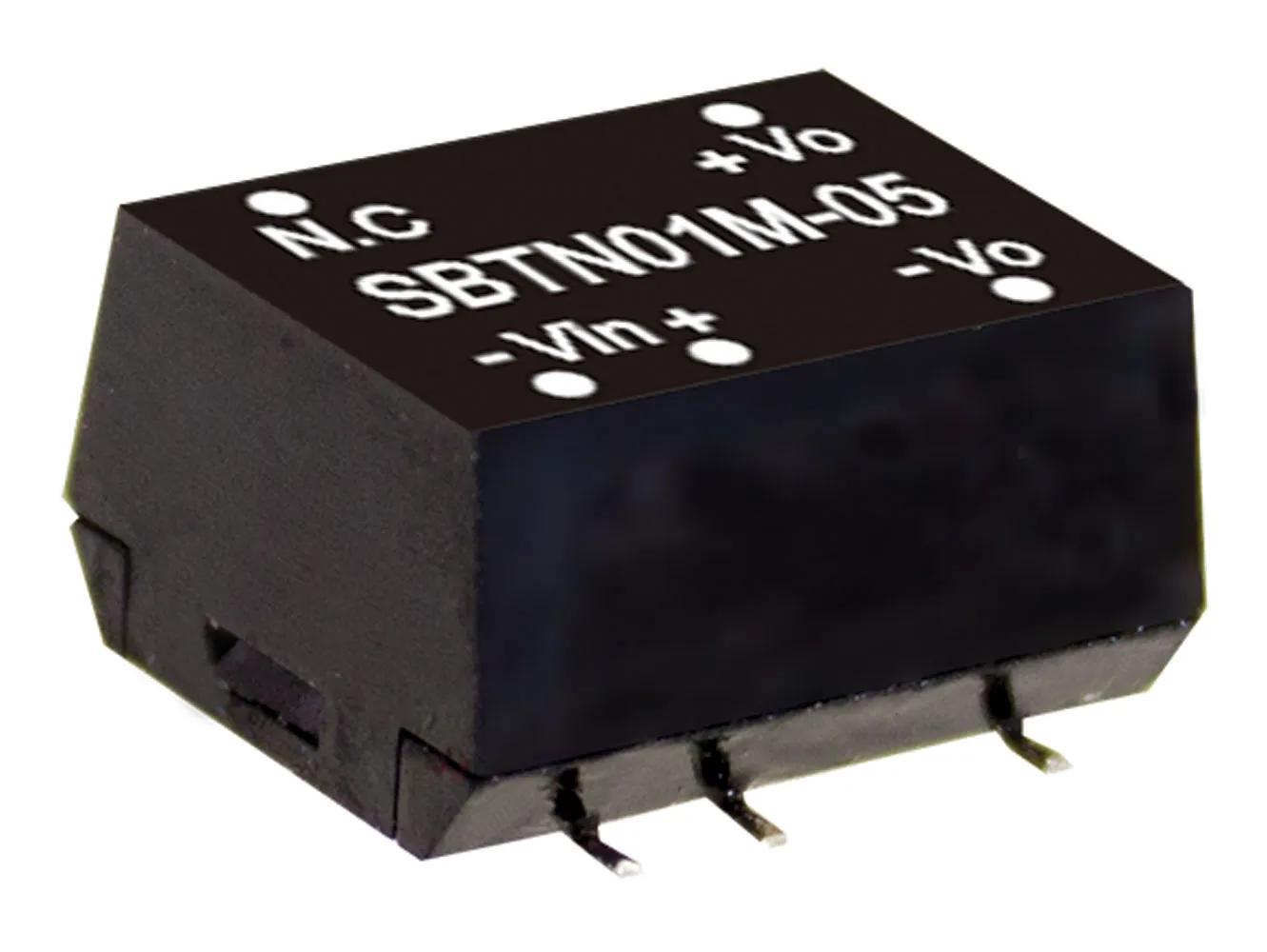

5V 20-200mA 1W SMD Package DC-DC Unregulated Converter 5Vin
Features
- SMD package with industry standard pinout
- Operating temperature range: -40 to +90°C
- Compliant to EN55032 radiated Class B without additional components
- High efficiency up to 78%
- Protection: Short circuit
- 1.5KVDC I/O isolation
- Low cost
- 3 year warranty
Specifications
- Output voltage: 5 VDC
- Output current: 20 to 200 mA
- Input voltage (range): 5 V (4.5 to 5.5 V)
- Input current: 30 mA (no load), 270 mA (full load)
Applications
- Telecom and Datacom systems
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Product Identification
Product Type:DC to DC Unregulated Single Output Converter SMPS
Manufacturer Series:SBTN01
Dimensions & Appearance
Color:Black
Height:0.28 in.
Mounting:Surface Mount
Length:0.5 in.
Width:0.43 In.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Packaging
Package:SMD
Input
Input Voltage Range:4.5 VDC to 5.5 VDC
Output
Number of Outputs:1
Output Voltage:5 VDC
Output Current:0.20 A
Output Connector Type:SMD
Additional Output Voltages (VDC):N/A
Features
Pins:8
Power Rating:1 W
Efficiency:78%
