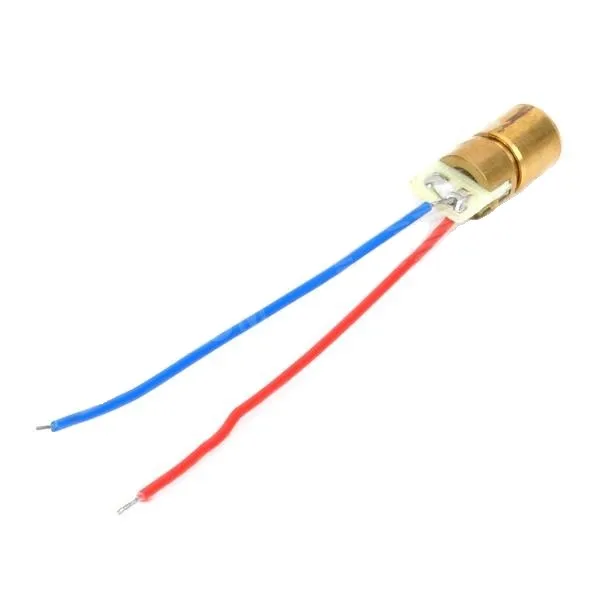

5mW 3V Laser Diode
Features:
- Material: Plastic and copper
- Operating Voltage: 3V DC
- Working current: < 40mA
- Input power: 150mW
- With red dot
- Wavelength: 650nm
- Output laser power: < 5mW
- Cable length: 3 inches
- 2-wire connection: Red and blue wires
- Working temperature: -32.8°F to +149°F (-36°C to +65°C)
- Perfect for DIY projects
- Dimensions: 0.24" diameter x 0.52" length
- Weight: 0.18 oz. (5 grams)
Related Products
- 5V 650nm red laser diode module with male pin header (P/N: 2258929)
Product Identification
Product Type:Laser Diode - Dot
Dimensions & Appearance
Color:Red
Dimensions:13.2mm Dia. x 6.1mm L
Input
Input Voltage:3 V
Features
Fan Angle (Deg.):1
Peak Wavelength:650 nm
Power Rating:5 mW
