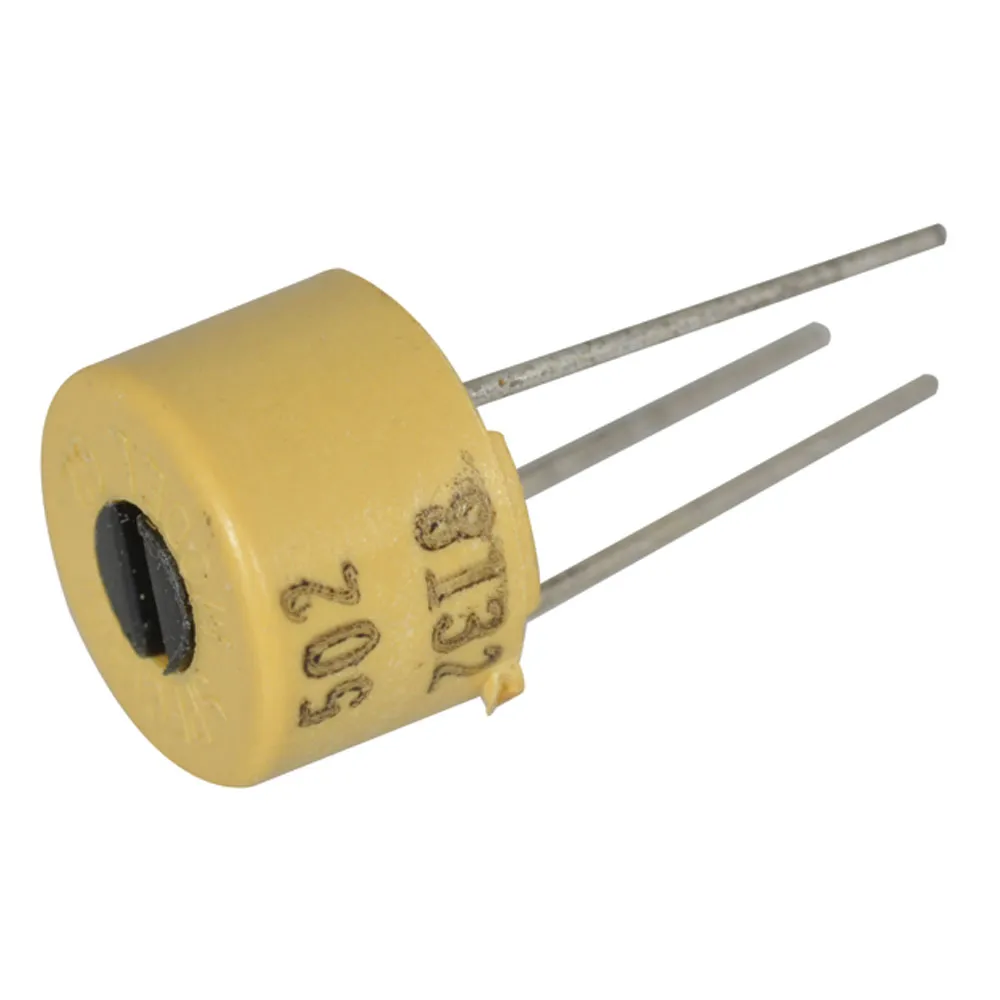

5kΩ Round Cermet Trimmer Potentiometer


Features:

  • Resistance range: 10Ω to 5kΩ
  • Tolerance: 10%
  • Power rating: 0.5W @ 85°C
  • Single turn
  • Insulation resistance: 1000MΩ min.
  • Operating temperature range: -55°C to +150°C
  • Size: 0.25"Diameter x 0.18"H
  • Top adjustment
  • Connection: Solder pins

    • Product Identification

    Family:H
    Manufacturer Series:3329
    Product Type:Trimmer

    Dimensions & Appearance

    Shaft Diameter:3.56 mm
    Mounting:Through Hole
    Diameter:6.35mm
    Height:4.57 mm

    Operating conditions

    Maximum Operating Temperature:150°C
    Minimum Operating Temperature:-55°C

    Features

    Number of Turns:1
    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Top
    Resistance (Ohm):5000
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Resistance:5 KOhm
    Termination Style:Pins
    Actuator Type:Top Slot
    ,
