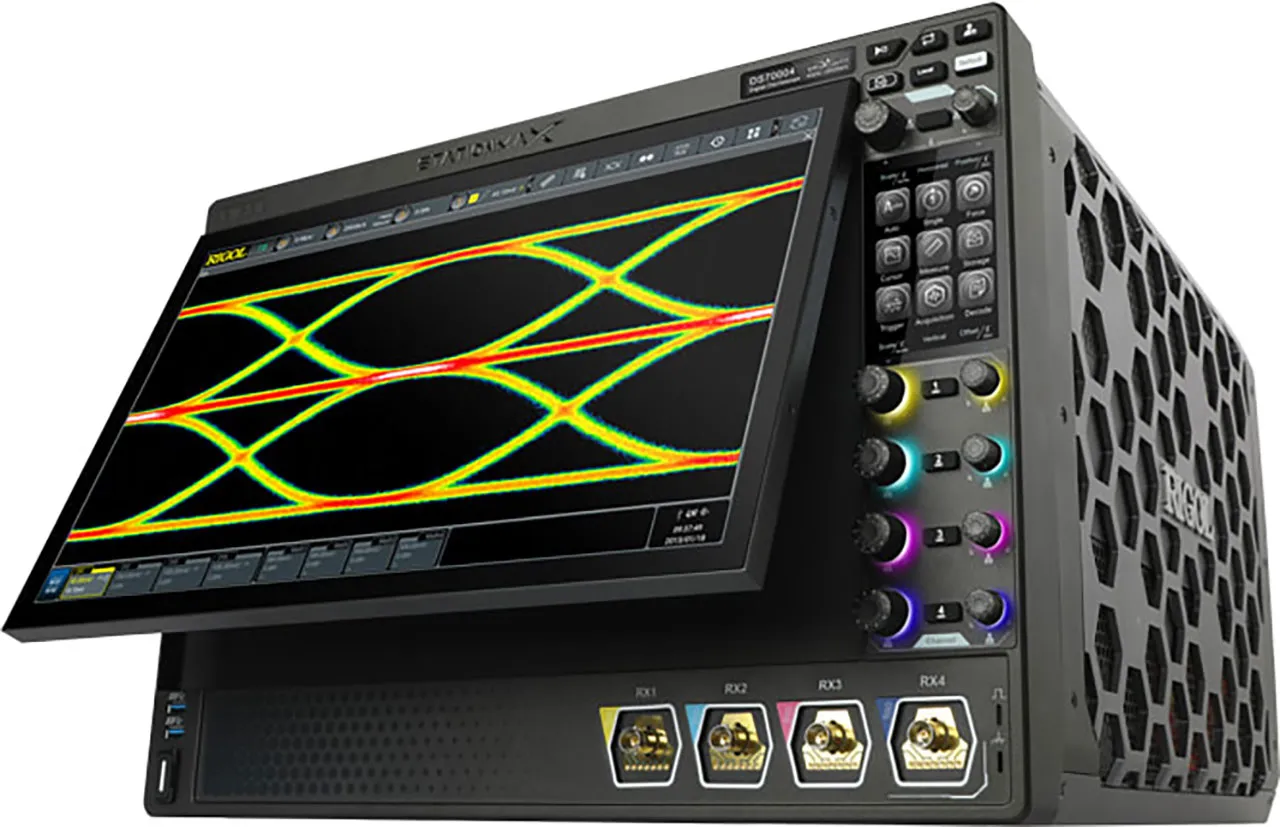

5GHz 4 Channel Digital Oscilloscope 20 GSa/s (DS70504)

Features

  • Bandwidth: 5 GHz
  • Channels: 4
  • Integrates multiple instruments into one
  • 20 GSamples per sec (10 GSa/sec on all channels)
  • 1 million waveforms per second capture rate
  • 500 Mpts standard memory depth
  • Up to 2 Gpts memory depth
  • High resolution: 8 bit ADCs with up to 16 bits in high-res mode
  • High precision frequency counter and totalizer
  • Display: 15.6 inch

Overview

With a capture rate of up to millions of waveforms per second, Rigol?s brand-new UltraVison III technical platform ensures the specifications to meet the advanced level in the industry.

Downloads & Resources

Product Identification

Additional Feature:N-in-1 Integrated DSO, Voltmeter, Frequency Counter and Totalizer
Product Type:Mixed Signal Oscilloscope

Compliance

RoHS Status:ROHS Compliant

Features

Number of Channels:4
Bandwidth:5 GHz
Sampling Rate:20 GS/s
Display:15.6 in. LCD
,
