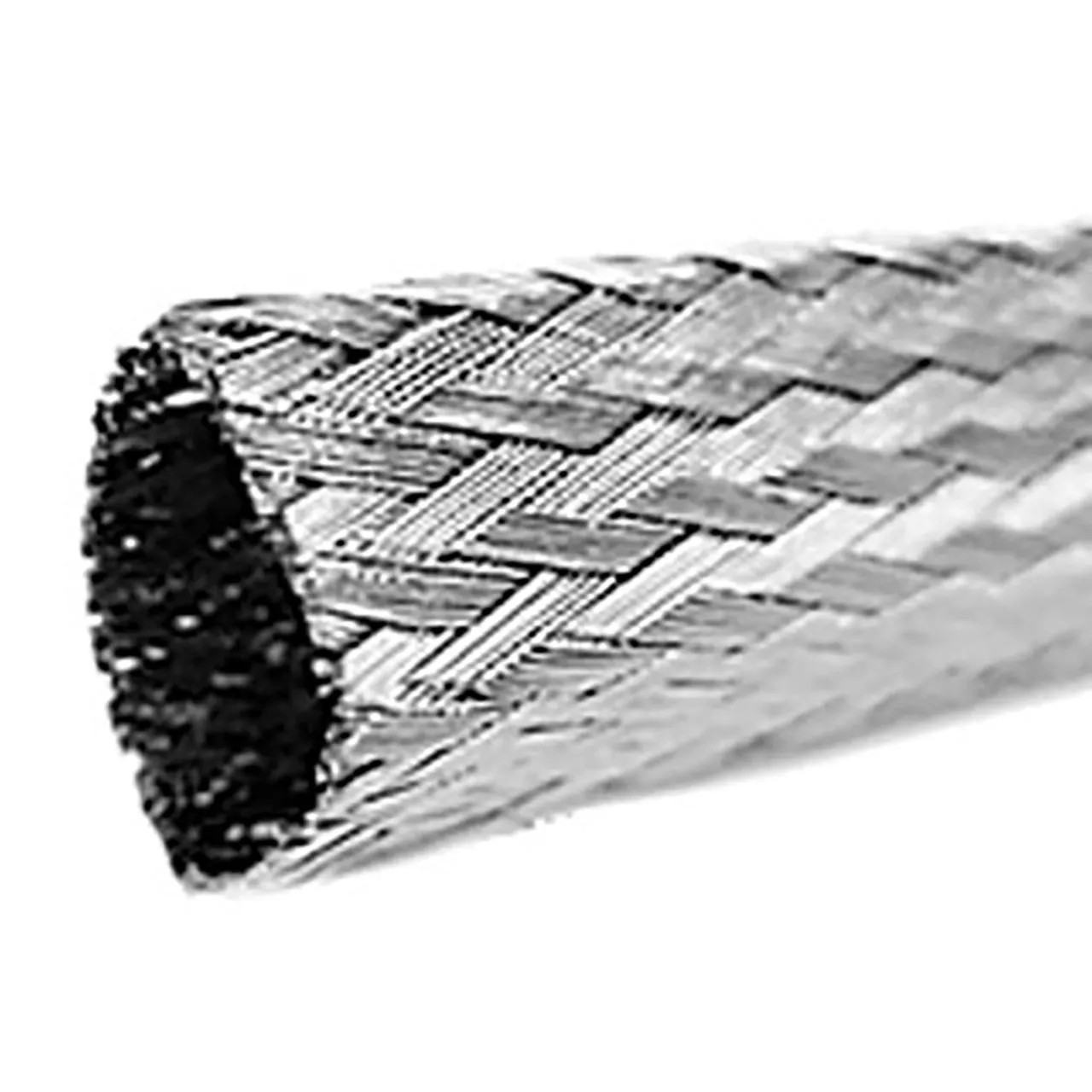

5/8" Flat Tinned Copper Wire Braid 48x36 100 Feet

Features

  • Consolidated Electronic Wire & Cable PN: 1395-100
  • Nominal Width: 5/8 in.
  • Nominal Thickness: 0.016 in.
  • Conductor Size: 36 Tinned Copper Wire AWG
  • Number of Ends: 384 (48x8)
  • Number of Carriers: 48
  • Total Strands: 384 x 36
  • Approx. Conductor Size: 10 AWG
  • CMA: 9600
  • Ampacity: 53 A
  • Approvals: ASTM B-33, AA59551 and QQB575 (formerly QQ-W-343), RoHS
A tight weave of multi-strand, soft drawn tinned copper wire is an ideal shielding material for short-run cables providing easy radial termination. In retrofit applications, it provides additional shielding efficiency. Tinned copper flat braid can be used as a ground strap because it provides an excellent, low resistance ground path.

Applications

  • Shielding
  • Flexible Ground Straps

Dimensions & Appearance

Style:Flat
Color:Silver
Length:100 ft.

Features

Wire Gauge (AWG):10
Conductor Strand:48 x 8 x 36
Inner Diameter:0.625 in.
Outer Diameter:0.641 in.
Current Rating:53 A
,
