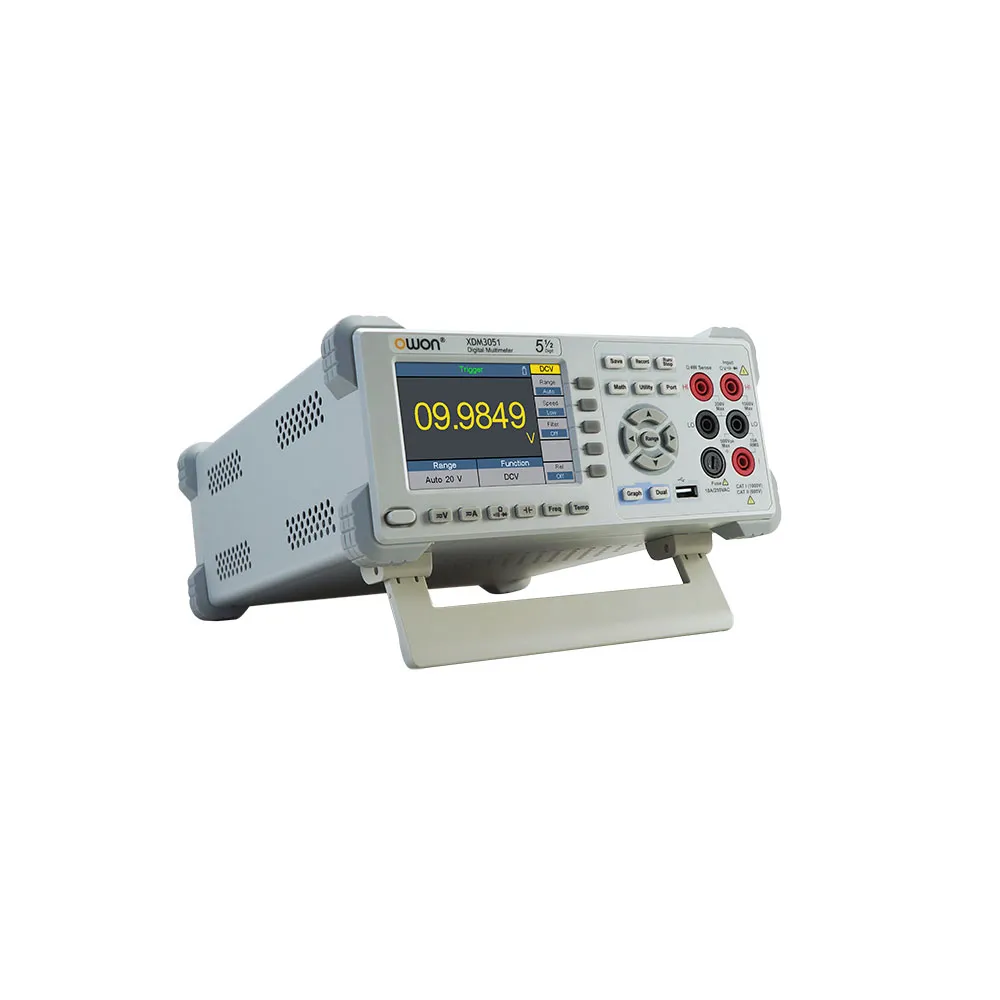

5.5-Digit Benchtop Digital Multimeter 1M Count True RMS 4" LCD with WiFi Module

Features

• 1,000,000 count display
• Measures: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, continuity test, diode test, temperature measurement, AC and frequency (AC + Hz) measurement, dB
• Reading rates up to 150 readings per second
• AC true RMS measurement; bandwidth: 20 Hz to 100 kHz / current measurement
• Dual line display supported
• Change trend analysis accessible via special chart mode
• SCPI supported - remote control and data sharing
  • possible via LAN, USB, RS232 port and WiFi (included)
• Multiple IO Interface: USB device & host, RS232, LAN and external trigger input
• 4" high-res LCD, 480x320
• Size: 235 W x 295 D x 110 H

Specifications

• DC Voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V
• AC Voltage: 200 mV to 750 V
• DC Current: 200 uA, 2 mA, 20 mA, 200 mA, 2 A, 10 A
• True RMS AC Current: 20 mA, 200 mA, 2 A to 10 A
• Resistance: 200 Ohm, 2K, 20K, 200K, 2M, 10M, 100M
• Capacitance: 2 nF to 200 uF, 10000 uF
• Diode: 2V
• Continuity: 2000 Ohm
• Temperature: thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
• Data logging length: 1M points
• Data logging duration: 5 ms

Resources and Downloads

• PC software for OWON XDM3000 Series digital multimeter (.zip)
• EasyControl Software Guide for XDM Series (.pdf)
• Programming Manual for XDM3041&3051 Series (.pdf)
• Labview demo for XDM3041&3051 Digital Multimeter (.rar)
• Programming Manual for XDM3041& 3051 Digital Multimeter (.pdf)
• app for OWON XDM Series digital multimeter (.zip)
