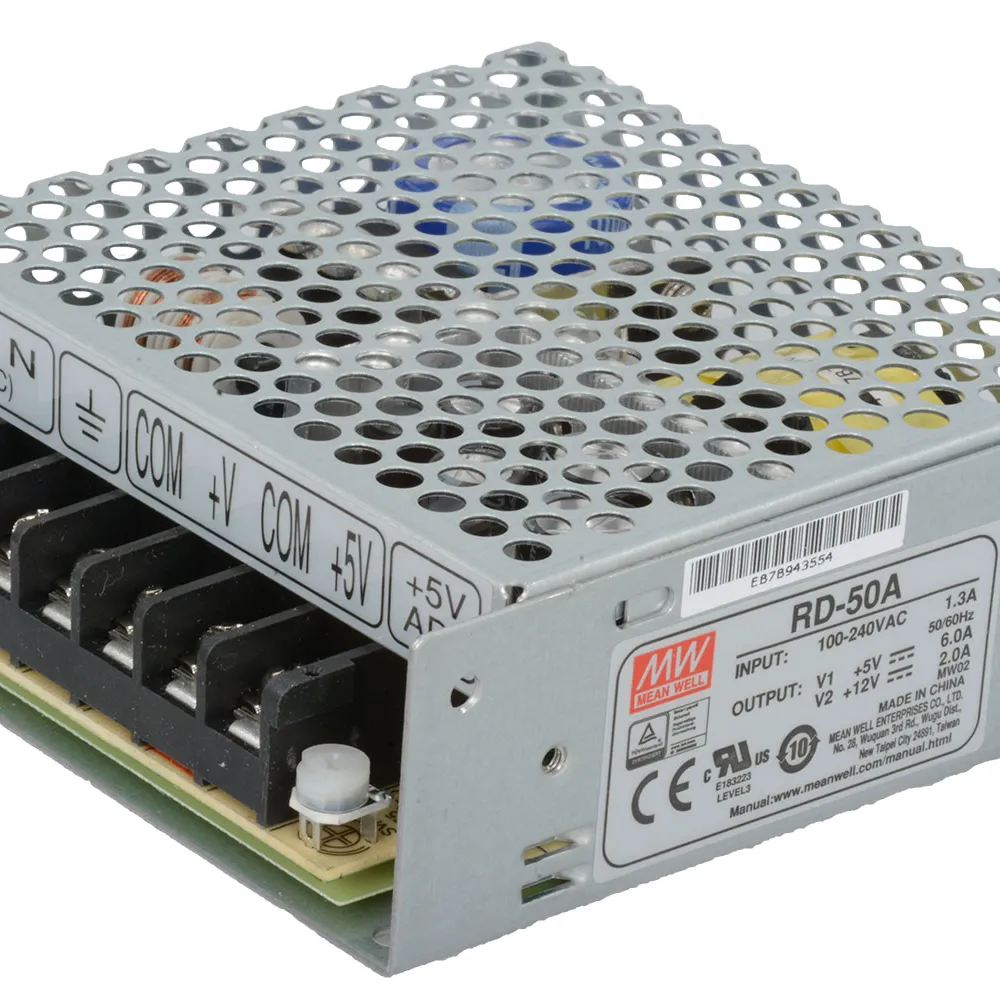

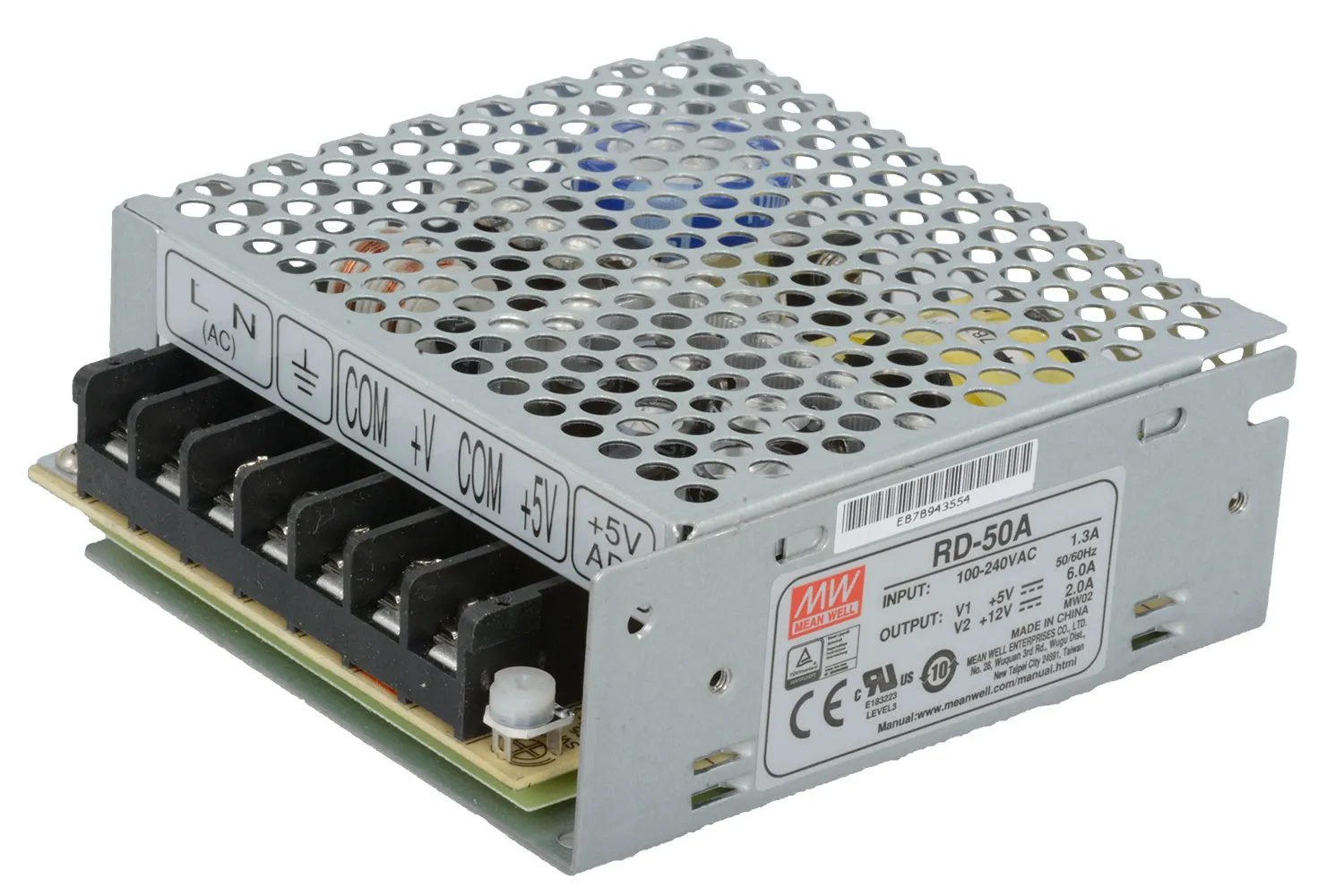

54W Dual Output 5V 6A and 12V 2A Enclosed Switching Power Supply

Channel 1: 5 Volts @ 6 Amps
Channel 2: 12 Volts @ 2 Amps

Specifications

  • Universal AC input / Full range (88 to 264 VAC @ 47 to 63 Hz)
  • Protections: Short circuit, overload, over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • Made with 105° long life electrolytic capacitors
  • Withstands 300 VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstands 5G vibration test
  • High efficiency, long life and high reliability
  • 3 year warranty
  • Agency approvals: UL, CUL, TUV, CB, CE

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RD-50

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.4 in.
Width:3.8 in.
Length:3.9 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.3 A

Output

Number of Outputs:2
Output Voltage (Channel 2):12 VDC
Output Voltage (Channel 1):5 VDC
Output Current (Channel 2):2 A
Additional Output Voltages (VDC):12
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):6 A
Output Current:6 A

Features

Minimum Isolation Voltage:3000V
Efficiency:79%
Power Rating:54 W
,
