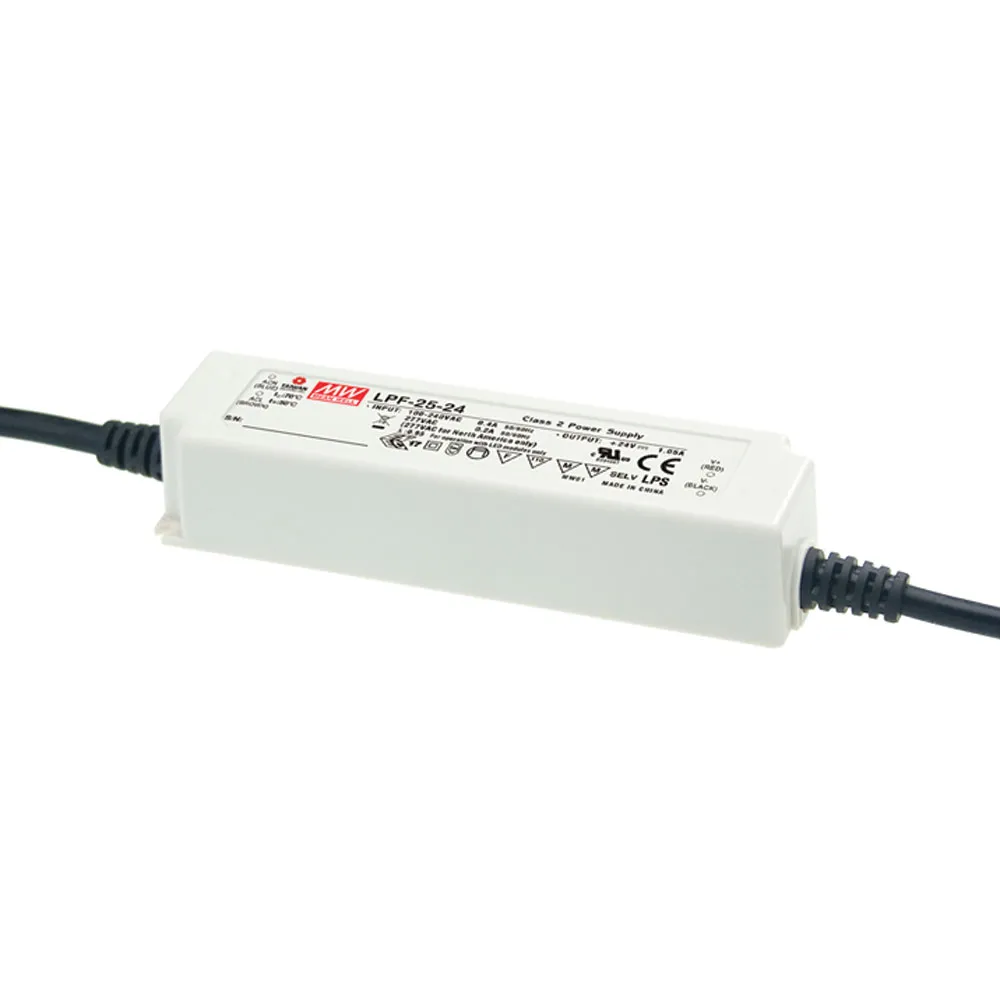

25 Watt Single Output Switching Power Supply
54 Volts @ 0.47 Amps
Features:
- Universal AC input/ Full range (up to 305VAC)
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- Built-in active PFC function
- Cooling by free air convection
- Fully isolated plastic case
- Fully encapsulated with IP67 level
- Class II power unit, no FG
- Class 2 power unit
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Suitable for dry/ damp/ wet locations
- 3 years warranty
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:LPF-25
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL
Dimensions & Appearance
Style:Enclosed
Color:White
Height:1.3 in.
Width:1.6 in.
Length:5.8 in.
Operating conditions
Minimum Operating Temperature:-35°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.4 A
Output
Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Current:0.47 A
Output Voltage:54 VDC
Output Range:29.7 VDC to 54 VDC
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:86.5%
Power Rating:25.38 W
