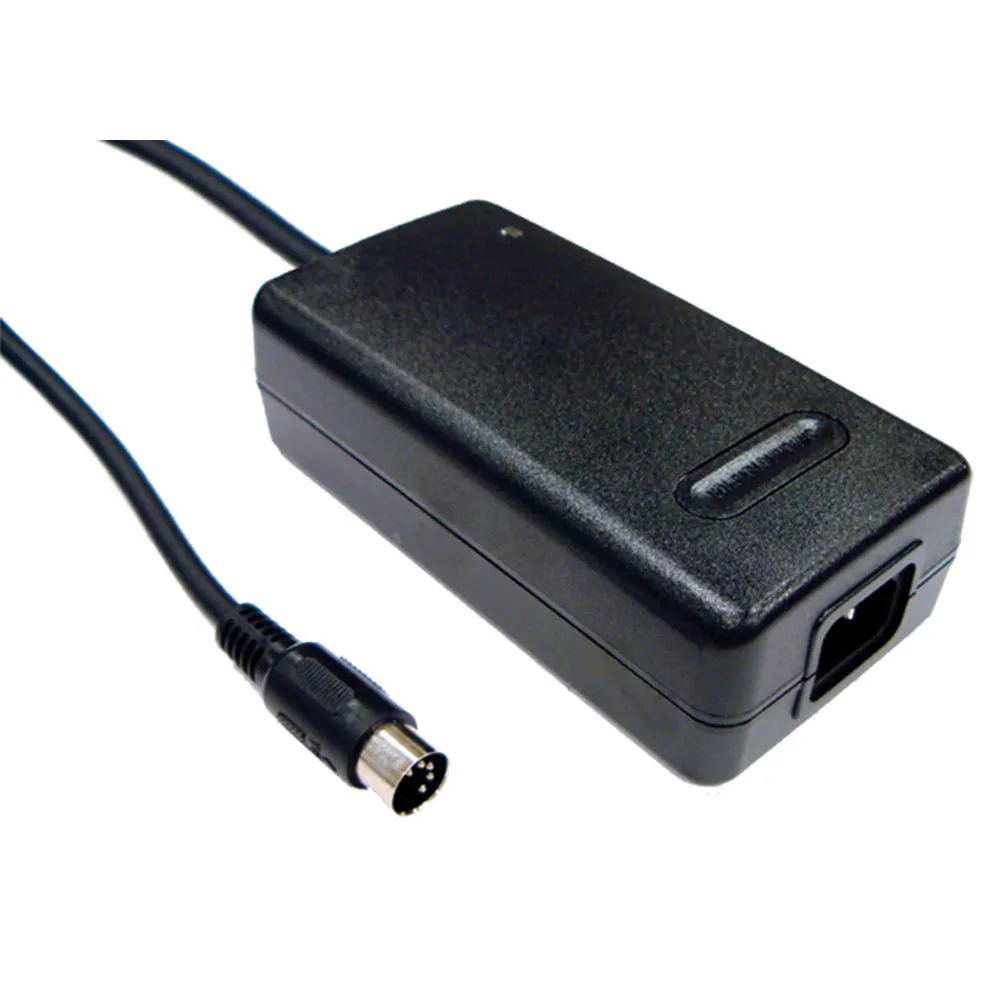

50W Triple Output Power Supply +5V/4A +12/2A -12/0.5A 5-Pin DIN Male

  • Channel 1: +5 Volts @ 4.0 Amps
  • Channel 2: +12 Volts @ 2.0 Amps
  • Channel 3: -12 Volts @ 0.5 Amps

Specifications

  • Output Connector: 5 - Pin DIN Male
  • Input: 90 -264VAC @ 47-63 Hz
  • Size: 5.7" L x 3.0" W x 1.7" H
  • Weight: 1.5 lbs.
  • LED indicator
  • DC output cord length: 4 Feet
  • Level VI efficiency
  • Agency approvals: UL/CUL/TUV/CE
  • AC input cord not included (Recommended: 3-conductor AC power cord, p/n: 2271575)

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:GP50A

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, FCC, TUV, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.69 in.
Width:2.97 in.
Length:5.75 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.6 A

Output

Number of Outputs:3
Output Voltage (Channel 3):-12 VDC
Output Current (Channel 3):0.5 A
Output Voltage (Channel 2):12 VDC
Output Voltage (Channel 1):5 VDC
Output Current (Channel 2):2 A
Output Connector Diameters:DIN-5 Male
Output Connector Type:DIN-5 Male
Additional Output Voltages (VDC): -12 VDC, 12 VDC
Output Voltage:5 VDC
Output Current (Channel 1):4 A
Output Current:4 A

Features

Polarity:N/A
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Minimum Isolation Voltage:4242V
IP Rating:N/A
Efficiency:84%
Power Rating:50 W
,
