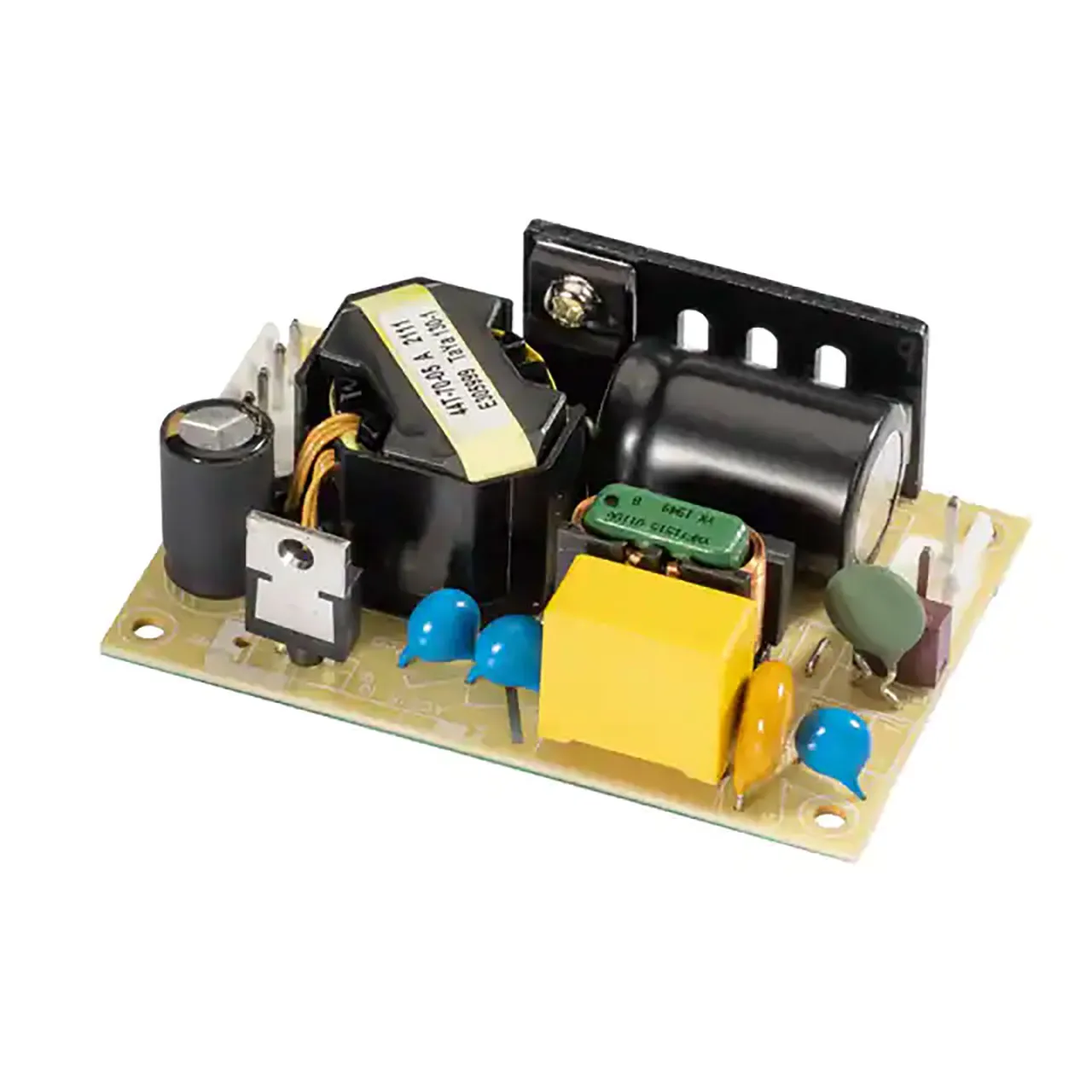

50W Single Output AC-DC Open Frame Power Module 36VDC 1.39A

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 89%
  • 2"x 3" Open Frame Compact Size
  • Class I and Class II
  • No Load Input Power < 0.15W
  • Approval IEC/EN/UL 62368-1
  • Meets IEC/EN 60335-1
  • Approval EN 55032 Class B and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection

Product Identification

Manufacturer Series:CFM50S

Compliance

Agency Approvals: CE, CUL, D, EN, FCC, UL

Dimensions & Appearance

Style:Open Frame
Height:1.067 in.
Width:2 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Connector Type:JST VHR or equiv., JST SVH
Output Voltage:36 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.39 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:89%
Power Rating:50 W
,
